Magellan RoadMate 1200 Battery Replacement

Geschrieben von: Ross Light
  • Kommentare: 2
Magellan RoadMate 1200 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

You can change the battery by opening up the GPS.

  1. VgTkNJfL6VlmwuA1
    VgTkNJfL6VlmwuA1
    psaePSmdZBp2Sa1e

    • Remove the four rubber caps from the back by using the Phillips #00 screwdriver.

  2. OeSvGyZAceYbcNEW

    • Remove the four screws holding the cover in place by using the Phillips #00 screwdriver.

  3. JeXyCOW2EvmVYGtc
    JeXyCOW2EvmVYGtc
    KlbuxowURVIt1XKj

    • Remove the back cover from the device by separating the back cover along its seam.

    • Slowly lift the cover—the speaker is screwed onto the back cover and is connected to the circuit board.

  4. a4AiVyY6pPepaCxd
    a4AiVyY6pPepaCxd
    JqJwhBpkT3lnNS6F

    • Pull the speaker cord, horizontally, by its base, away from the motherboard.

    • When reassembling, make sure that you plug the terminal in the same way. The black wire should be on the side farthest from the battery.

    In my 1200, the speaker is glued to the back and soldered into the board so there is no plug to undo. Just carefully find a position so that board doesn't pull on the speaker wire while it is open.

    Jomar -

    where can we get the speakers from? please

    bbunni1404 -

  5. ralePtKgYAr2QbA3
    ralePtKgYAr2QbA3
    lKZOKOAigX3AyIE6
    qLQnJPhwxKaCqhX2

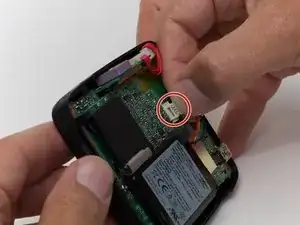

    • Disconnect the battery connector from the circuit board.

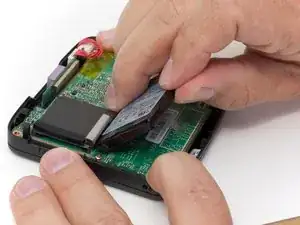

    • Pry the battery off the circuit board. The adhesive attaching it shouldn't require any other tools.

Abschluss

To reassemble your device, follow these instructions in reverse order.
