Einleitung

After removing the back cover and battery, follow this guide in order to remove the screen from the device.

  1. i1MWJVDLndNVYRrI
    • Place the GPS with the screen facing down.

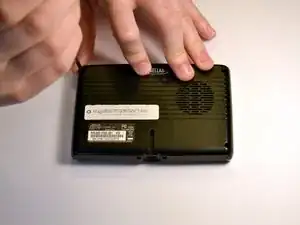

  2. LisFCmskdaKQaiAt
    LisFCmskdaKQaiAt
    IDN6LNdCyYHbTmqG
    • Remove the four 4.2 mm screws on the back cover of the device using a Phillips #0 screwdriver.

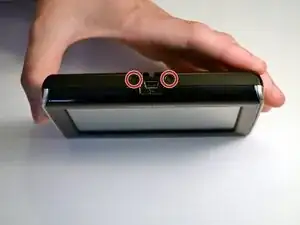

  3. WxLDKFIWM5p3ijWM
    WxLDKFIWM5p3ijWM
    BQgJSw45ZtvXTTCj

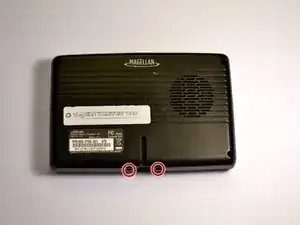

    • Remove the two 4.2mm screws at the bottom of the device using a Phillips #0 screwdriver.

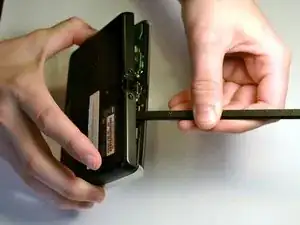

  4. GUpPP5sUHBhMpxRh
    GUpPP5sUHBhMpxRh
    ljBhKOarKIQPQm61
    bNPXnqRTcvH3qxtT

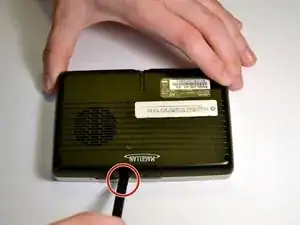

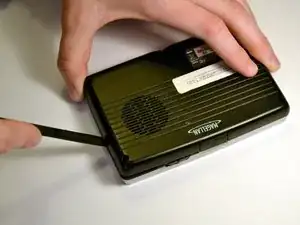

    • Insert the black spudger into the crease in the side of the GPS.

    • Move the end of the spudger down to break the seal between the two plastic shells.

    • Continue doing this along each side of the GPS to ensure a smooth removal.

    Before seperating the cover panels secure the on/off slider to the front panel with tape. If it falls out the micro swith is easy to damage. The small white tab breaks with ease.

    mrkenhoward -

  5. AFATJFfGsujCTJJZ
    AFATJFfGsujCTJJZ
    BxZYoQeuGGlyIxY2
    F5VfpWpN3tjHYHdY

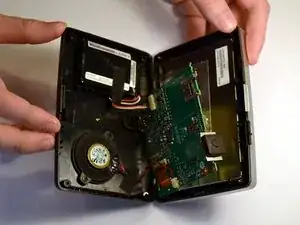

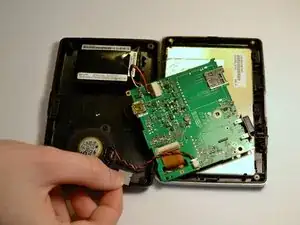

    • Fully separate the two sides of the case.

    • Remove the tape on the battery wires and the tape on the speaker wires.

  6. GvHkxikuFMOIAJBX
    GvHkxikuFMOIAJBX
    AAACtSXlMjWyfmVH
    • Use the black spudger to break the seal between the adhesive and battery. Use the same spudger to continue to pry the battery from the backing

    • This may be a little tough to separate the battery and the adhesive

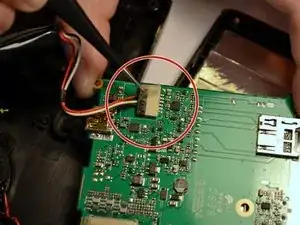

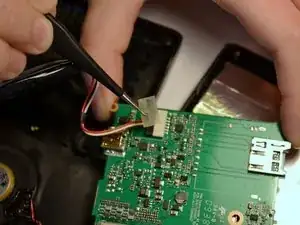

  7. qMrhIWXELLTRyQsF
    qMrhIWXELLTRyQsF
    qcAd5WNFqG4oZKa6
    • Lift the battery from the device

    • Once the battery is free from the adhesive, remove the piece of tape with a pair of tweezers that is covering the connection of the battery to the motherboard.

  8. uVZGrgK2kGCKkTlm
    uVZGrgK2kGCKkTlm
    gHjLNPe6wckCGKVm

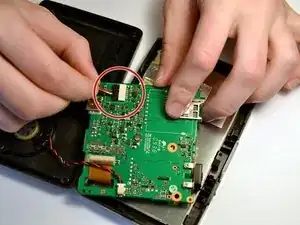

    • Unplug the battery from the mother board by pulling back the clips and pulling the wires away from the motherboards receptacle

    • It is important for your and the device's safety to remove the battery before continuing with any other part removals.

    • It is not necessary to separate the red and white wires from the battery. A replacement battery pack will come with similar wires already attached.

  9. KOHS2Yxdk2g1s1UT
    • Replace the device's screen.

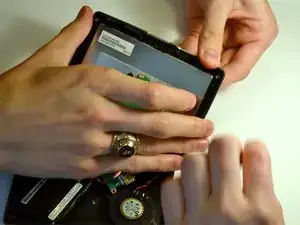

  10. TH1MFEnUFHKByjsl
    TH1MFEnUFHKByjsl
    6yIyhCtvCNjqy6s6
    tMDGKhJwDHwvZhIK

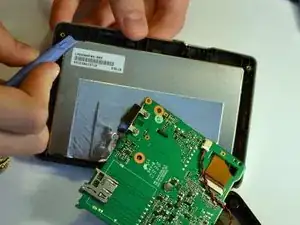

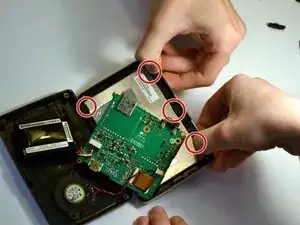

    • It may be necessary to get help from a friend to hold the device stable while removing the screen.

    • Using two hands, pull back the tabs holding the screen in place.

    • Use a spudger to help use leverage to remove the screen, if necessary

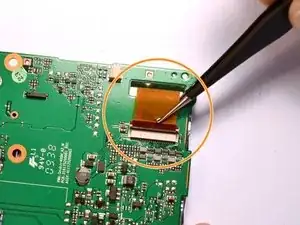

  11. H1Z3OckaPXf5uF2o
    H1Z3OckaPXf5uF2o
    R4QdoVH1FtHLloBl
    • Raise the switch locking the ribbon cable in place.

    • Using twesers, pull the ribbon cable from the socket.

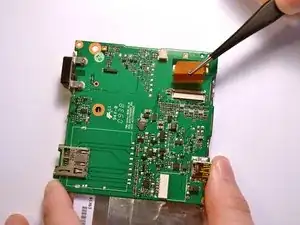

  12. tXVIS1qXtR1SfS4K
    tXVIS1qXtR1SfS4K
    sulI1jHfSZ6ixDj1

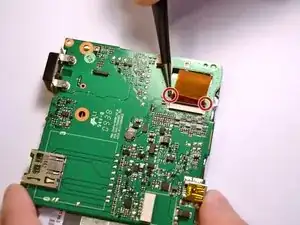

    • With the ribbon cable removed, the screen is completely disconnected from the device.

    • To replace the ribbon cable, press the two tabs to push the head into the socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
