Magellan RoadMate 1440 Speaker Replacement

Geschrieben von: Lauren Cain

Kommentare: 1

Magellan RoadMate 1440 Speaker Replacement

Schwierigkeitsgrad

Very easy

Schritte

Zeitaufwand

8 Minuten

Einleitung

This guide will break down the steps on how to remove the speaker from the device.

Werkzeuge

Schritt 1

Place the GPS with the screen facing down.

Schritt 2

Remove the four 4.2 mm screws on the back cover of the device using a Phillips #0 screwdriver.

Schritt 3

Remove the two 4.2mm screws at the bottom of the device using a Phillips #0 screwdriver.

Schritt 4

Insert the black spudger into the crease in the side of the GPS.
Move the end of the spudger down to break the seal between the two plastic shells.
Continue doing this along each side of the GPS to ensure a smooth removal.

Before seperating the cover panels secure the on/off slider to the front panel with tape. If it falls out the micro swith is easy to damage. The small white tab breaks with ease.

mrkenhoward - 18/09/20

Schritt 5

Fully separate the two sides of the case.
Remove the tape on the battery wires and the tape on the speaker wires.

Schritt 6

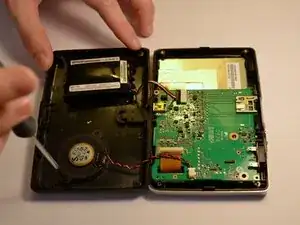

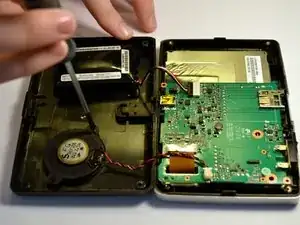

Use the black spudger to break the seal between the adhesive and battery. Use the same spudger to continue to pry the battery from the backing
This may be a little tough to separate the battery and the adhesive

Schritt 7

Lift the battery from the device
Once the battery is free from the adhesive, remove the piece of tape with a pair of tweezers that is covering the connection of the battery to the motherboard.

Schritt 8

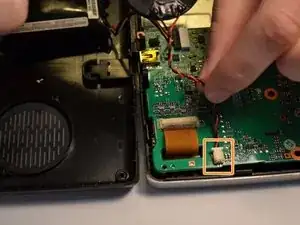

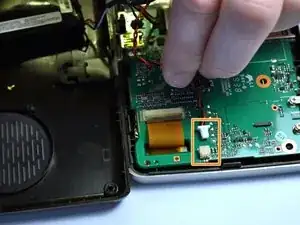

Unplug the battery from the mother board by pulling back the clips and pulling the wires away from the motherboards receptacle
It is important for your and the device's safety to remove the battery before continuing with any other part removals.
It is not necessary to separate the red and white wires from the battery. A replacement battery pack will come with similar wires already attached.

Schritt 9

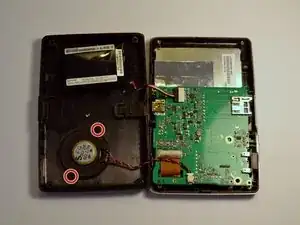

After the back has been removed, locate each of the screws securing the speaker to the inside of the back cover.
Use a Phillips #0 screwdriver to remove the two 3.8mm Phillips #0 screws.
