Magellan RoadMate 2120T-LM Display Assembly Replacement

Geschrieben von: John Doe
  • Kommentare: 0
Magellan RoadMate 2120T-LM Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

This guide will walk through the steps of replacing a damaged or unresponsive digitizer/LCD of a Magellan RoadMate 2120T-LM. Before replacing the touch-screen, check for software updates from Magellan to rule out software issues.

  1. AbZTaQB6wMgJT6Ib
    AbZTaQB6wMgJT6Ib
    6pFrYjMSuXTHIyy2
    HD1tGk2QkXoPXAgw

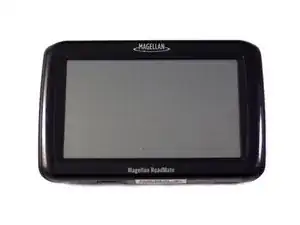

    • Turn the GPS over on its backside and remove the six 3 mm Phillips #1 screws.

  2. JrXPVApgZIZxOE2I
    JrXPVApgZIZxOE2I
    mKRxN2mGZsKrQADE

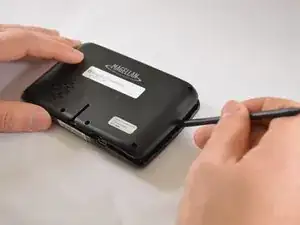

    • Pry up on back panel with black spudger

  3. YLIUSRdHaiMVVKbd

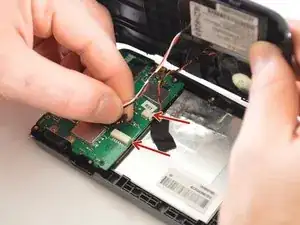

    • Disconnect battery and speaker cables from the motherboard at indicated places.

  4. ZpgZwUWgSvKHMhwf

    • Use a spudger to remove the battery from the back panel.

    • If at all possible, please try to use a regular nylon spudger before resorting to a metal spudger. Metal spudgers are much sharper, and have the potential to accidentally pierce the battery.

    • There is a strong adhesive holding the battery to the back panel.

    • This step is not a prerequisite for replacement of other components.

  5. j26MXjI4vBrIYs4q

    • Remove the four 3 mm Phillips #1 screws from the motherboard.

    • In the picture three out of four screws have already been removed.

  6. EIphjGaNipQ2n6Rq
    EIphjGaNipQ2n6Rq
    HyL6v1IsEZoWDWcv

    • Remove black tape covering connection ribbon for touch-screen

  7. 3FWEcJMSbnk1rlaT
    3FWEcJMSbnk1rlaT
    aZSQwrPrGLMhcQMt
    DUWVgfJdlxMbeZBu

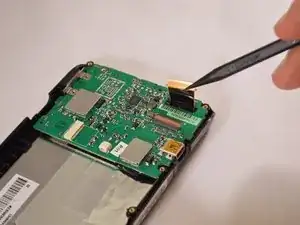

    • Pull up on the brown tab holding down the ribbon.

    • In this picture the brown tab has already been lifted.

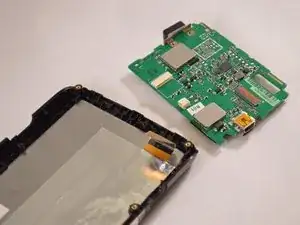

    • Lift up on the motherboard and remove it from device.

  8. 6CRiUsvNCjNsTcBK
    6CRiUsvNCjNsTcBK
    XjJblnUmaElXWZQT

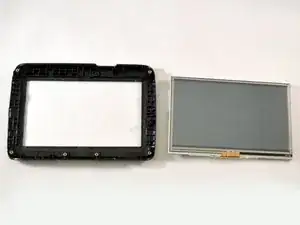

    • Pry back on the plastic shell surrounding the touchscreen and remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
