Magellan RoadMate 2120T-LM Speaker Replacement

Geschrieben von: John Doe
  • Kommentare: 0
Magellan RoadMate 2120T-LM Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide walks through the process of replacing the internal speaker of a Magellan RoadMate 2120T-LM. The process is very simple and will only take about 15 minutes to complete.

  1. AbZTaQB6wMgJT6Ib
    AbZTaQB6wMgJT6Ib
    6pFrYjMSuXTHIyy2
    HD1tGk2QkXoPXAgw

    • Turn the GPS over on its backside and remove the six 3 mm Phillips #1 screws.

  2. JrXPVApgZIZxOE2I
    JrXPVApgZIZxOE2I
    mKRxN2mGZsKrQADE

    • Pry up on back panel with black spudger

  3. YLIUSRdHaiMVVKbd

    • Disconnect battery and speaker cables from the motherboard at indicated places.

  4. ZpgZwUWgSvKHMhwf

    • Use a spudger to remove the battery from the back panel.

    • If at all possible, please try to use a regular nylon spudger before resorting to a metal spudger. Metal spudgers are much sharper, and have the potential to accidentally pierce the battery.

    • There is a strong adhesive holding the battery to the back panel.

    • This step is not a prerequisite for replacement of other components.

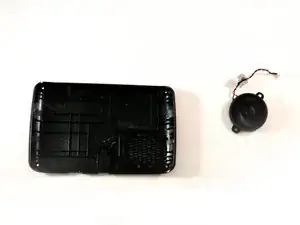

  5. wyLslvZpytYHUOjj
    wyLslvZpytYHUOjj
    GwbQ66XkVfOKIDZI

    • Locate the internal speaker just above the battery

    • Remove the two 3 mm Phillips #1 screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
