Magellan RoadMate 5120-LMTX Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Rechargeable batteries eventually degrade and lose their ability to hold a charge. Once this happens, the only fix is to replace the battery. Ensure that your device is powered off before beginning this step.

  1. Rlene3FOZx5FRYcG
    Rlene3FOZx5FRYcG
    lmtwTCf4JRcMNnXc
    saJEsCgllNnKwNR3

    • Power off the Magellan RoadMate before beginning.

    • Remove the six 5mm Phillips #00 screws from the back of device.

  2. cNKZhDeNoLl2Kqep
    cNKZhDeNoLl2Kqep
    J1JbUaOwuGNEAsXO
    AlIE14vhXGTLMwfM

    • Pry back cover off with a plastic opening tool just enough to see where the speaker is attached to the motherboard.

    • Do not fully open the back cover or you risk damaging the speaker wire.

    • Use a spudger to disconnect the speaker connection from the motherboard.

  3. kNCHNsr4YZj6JGnE
    kNCHNsr4YZj6JGnE
    NBhY5b4kmibWItFk

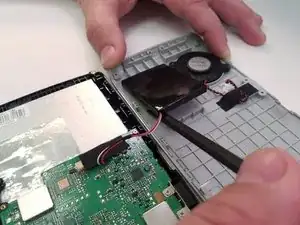

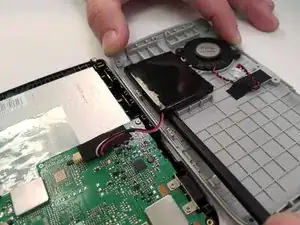

    • Run the tip of a spudger between the battery and the housing to loosen the double-sided tape holding the battery in.

    • Still using the spudger tool, pry the battery from the housing.

    • If you damage the tape while trying to remove the battery, you can replace it with any double-sided tape.

  4. dCZvu6gCjtoDSVx6
    dCZvu6gCjtoDSVx6
    YnkJUXqNErnht2vb
    2mBu4AIGJwJStcKb

    • Pull the edge of the tape up to remove the tape that holds the battery wire to the motherboard.

    • There is a clear rectangular adhesive strip that also needs to be removed with the pointy end of a spudger.

    • Slowly pull the connection from the motherboard.

    • Do not pull too hard or you will risk damaging the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
