Einleitung

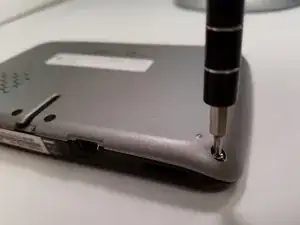

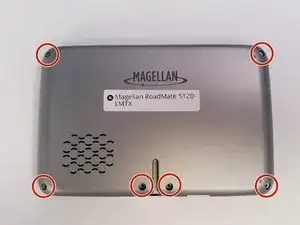

You will be removing many pieces of hardware during this process. Store all of these pieces in a safe location so as not to lose them. Also, save all the pieces of tape and/or plastic that will be removed as they are very important in securing wires internally.
-
-

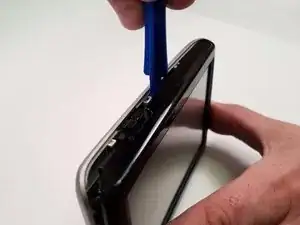

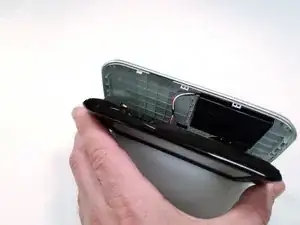

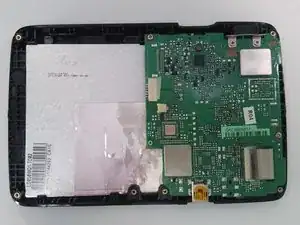

Pry back cover off with a plastic opening tool just enough to see where the speaker is attached to the motherboard.
-

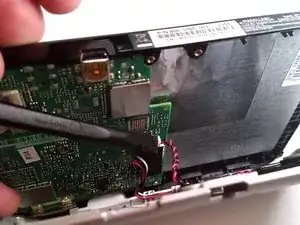

Use a spudger to disconnect the speaker connection from the motherboard.
-
-
-
Some devices may have a piece of tape or plastic over the ribbon cable latch. If your device has this, remove it before continuing.
-

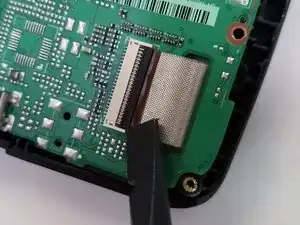

Carefully lift the black ribbon cable latch upwards with a spudger or other similar tool.
-

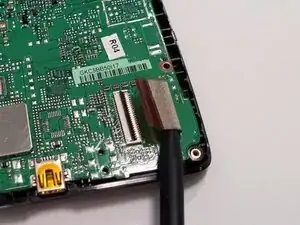

Once the ribbon cable latch is opened, insert the pointed end of the spudger, or other similar tool, underneath the ribbon cable.
-

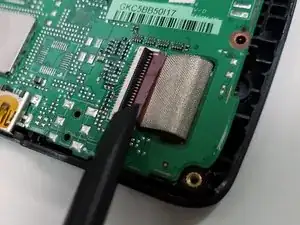

Slowly pull out the ribbon cable in a straight, flat motion with respect to the latch.
-
-
-

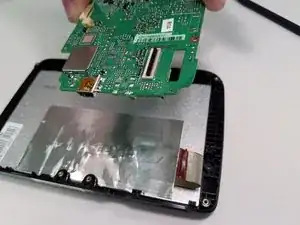

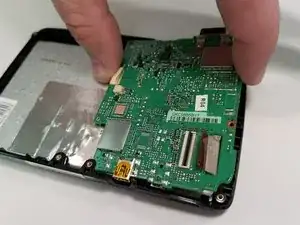

Carefully lift the motherboard out of the plastic housing by the edges while guiding the ribbon cable through the slot.
-
Store the motherboard on a safe non-conductive surface, preferably an anti-static mat.
-
To reassemble your device, follow these instructions in reverse order.
