Magellan RoadMate 5120-LMTX Speaker Replacement

Geschrieben von: Chris Blaskowski
  • Kommentare: 1
Magellan RoadMate 5120-LMTX Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

The speaker removal process is easy to accomplish. The device has wires that can be damaged if you are not careful when opening the device. There will be tape holding some of the wires in place. Make sure to retain the tape or have more tape on hand so that it can be reapplied when reassembling your RoadMate.

  1. Rlene3FOZx5FRYcG
    Rlene3FOZx5FRYcG
    lmtwTCf4JRcMNnXc
    saJEsCgllNnKwNR3

    • Power off the Magellan RoadMate before beginning.

    • Remove the six 5mm Phillips #00 screws from the back of device.

  2. cNKZhDeNoLl2Kqep
    cNKZhDeNoLl2Kqep
    J1JbUaOwuGNEAsXO
    AlIE14vhXGTLMwfM

    • Pry back cover off with a plastic opening tool just enough to see where the speaker is attached to the motherboard.

    • Do not fully open the back cover or you risk damaging the speaker wire.

    • Use a spudger to disconnect the speaker connection from the motherboard.

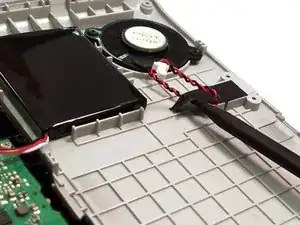

  3. 6hsiUMTfJSKaTZ4I
    6hsiUMTfJSKaTZ4I
    Z2wqtxLZKce3mrcH

    • Open the device and remove the tape from the speaker wire using the spudger.

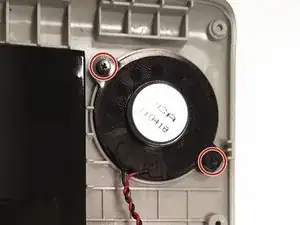

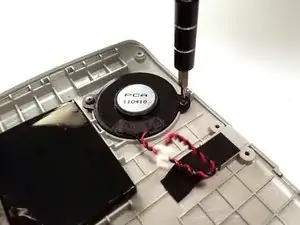

  4. rVOHJgYqOcGibNo1
    rVOHJgYqOcGibNo1
    wbNHxFFQotYUYwbS

    • Remove the two 4mm Phillips #00 screws securing the speaker assembly and remove speaker.

    what is the name of the speaker that i can purchase another one for my magellan roadmate 5120

    alfred sanchez -

Abschluss

To reassemble your device, follow these instructions in reverse order.
