Magellan RoadMate 5250T-LM Screen Replacement

Geschrieben von: Jaimee Mound
  • Kommentare: 0
Magellan RoadMate 5250T-LM Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This guide will walk you through the step-by-step instructions on how to remove and replace a Magellan RoadMate 5250T-LM display.

  1. qP1m22tBYTJogaIG
    qP1m22tBYTJogaIG
    lgNyZhUTcjZvhgjH

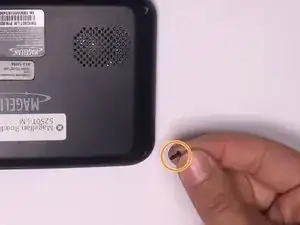

    • Holding the device in place, remove all four 5 mm screws from the back of the device using a Philips Head #000 screwdriver.

    • Place screws aside. Make sure they are easily accessible for reassembling the device.

  2. kG1HxrpBWyQ2KRSQ
    kG1HxrpBWyQ2KRSQ
    5bNLOAA2nnyfi3ex

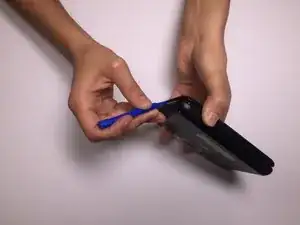

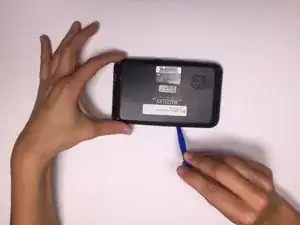

    • Lift the back cover using a spudger.

    • Remove back cover slowly and carefully to prevent damage.

  3. PWtduMQujXfJD3d3

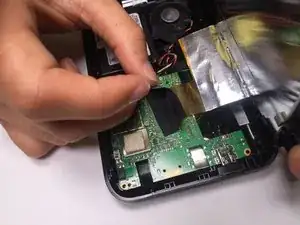

    • Peel back the tape securing the display connector to the motherboard.

    • To ensure proper reassembly, do not remove or fold edges of tape.

    • Use a nylon spudger to flip up the black tab on the ZIF connector.

    • Pull the ribbon cable out with tweezers.

    • The ribbon cable may fall out once the tape is removed.

  4. XMSYrEIP2VS1XejY
    XMSYrEIP2VS1XejY
    R1rDMFdju4xLPWrC

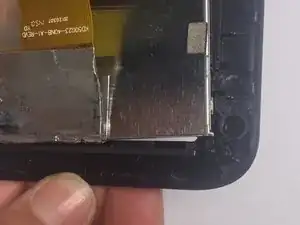

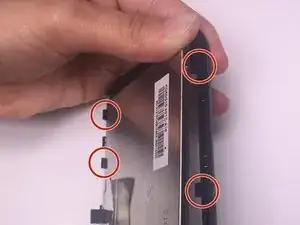

    • Undo the four clamps holding down the display.

    • Remove the display from the front cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
