Magellan Roadmate 9055-LM Power Button Replacement

Geschrieben von: Giovanni
  • Kommentare: 0
Magellan Roadmate 9055-LM Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

  1. OGGUkYew2KWpX5Zy

    • Flip your device with back panel facing up.

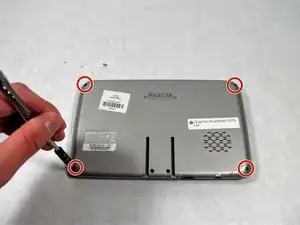

  2. JbornrVun12S2CCi
    JbornrVun12S2CCi
    2BTGTIYKpJuJmQnY
    xkhGEPGRRGiI4iDg

    • Unscrew four Phillips #0 screws from the back panel.

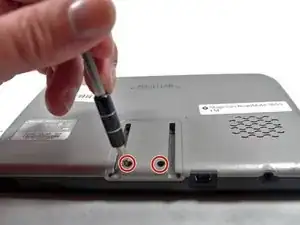

  3. xZQXM5VUmuRAInj2
    xZQXM5VUmuRAInj2
    Dr5RoKLatI4rLBqU

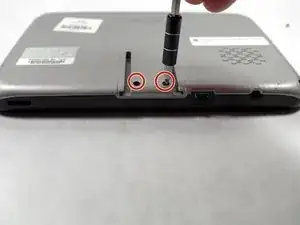

    • Unscrew two Phillips #0 screws from the back panel.

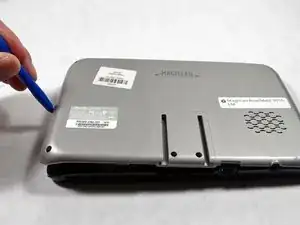

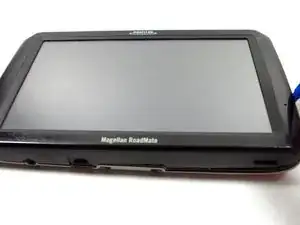

  4. fJ12OgWcBStcvOH1
    fJ12OgWcBStcvOH1
    kXfO5FXiPBavgPiX

    • Use a plastic opening tool to pop the right side of the panel.

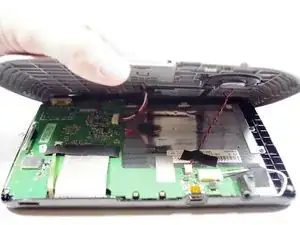

  5. sNPmf5wkgt6TZutN

    • Lifting the back panel too quickly or forcefully may damage the speaker cable and battery cable, which are still attached underneath.

    • Gently lift up the back panel.

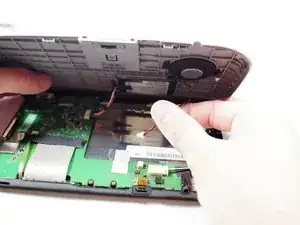

  6. BxLrlOjSAhPaKTOY
    BxLrlOjSAhPaKTOY
    GwadxKtl34jyINn1
    vPJXFLWpBB3lfYps

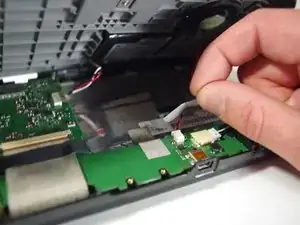

    • Remove the tape.

    • Unplug the cable for the speaker.

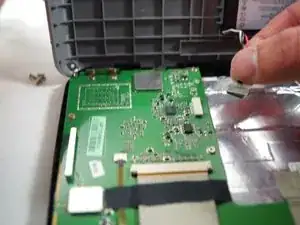

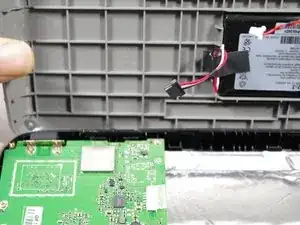

  7. fBVAKjbc5NSOAr1K
    fBVAKjbc5NSOAr1K
    S3Ju1qgTRmgsv3JZ
    gG1qSPDGiTvwpGv3

    • Remove the cable of the battery.

    • Tape removal is not necessary.

  8. jiGXKCW6F1ffh3Sw

    • Place the back panel gently on the table.

  9. haqHJOVQjZYClDst

    • After the back panel is placed on the table, you must need to locate the starting button.

  10. KuuecEilWXlsRlbs

    • It is easily removable and can now be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
