Magellan Roadmate 9055-LM Touchscreen Replacement

Geschrieben von: YuChe Chang
  • Kommentare: 0
Magellan Roadmate 9055-LM Touchscreen Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

Keine Schätzung

Einleitung

  1. OGGUkYew2KWpX5Zy

    • Flip your device with back panel facing up.

  2. JbornrVun12S2CCi
    JbornrVun12S2CCi
    2BTGTIYKpJuJmQnY
    xkhGEPGRRGiI4iDg

    • Unscrew four Phillips #0 screws from the back panel.

  3. xZQXM5VUmuRAInj2
    xZQXM5VUmuRAInj2
    Dr5RoKLatI4rLBqU

    • Unscrew two Phillips #0 screws from the back panel.

  4. fJ12OgWcBStcvOH1
    fJ12OgWcBStcvOH1
    kXfO5FXiPBavgPiX

    • Use a plastic opening tool to pop the right side of the panel.

  5. sNPmf5wkgt6TZutN

    • Lifting the back panel too quickly or forcefully may damage the speaker cable and battery cable, which are still attached underneath.

    • Gently lift up the back panel.

  6. BxLrlOjSAhPaKTOY
    BxLrlOjSAhPaKTOY
    GwadxKtl34jyINn1
    vPJXFLWpBB3lfYps

    • Remove the tape.

    • Unplug the cable for the speaker.

  7. fBVAKjbc5NSOAr1K
    fBVAKjbc5NSOAr1K
    S3Ju1qgTRmgsv3JZ
    gG1qSPDGiTvwpGv3

    • Remove the cable of the battery.

    • Tape removal is not necessary.

  8. jiGXKCW6F1ffh3Sw

    • Place the back panel gently on the table.

  9. Y2d2XcjDcXJXBusb
    Y2d2XcjDcXJXBusb
    SmKLCUpJKjfmlOop

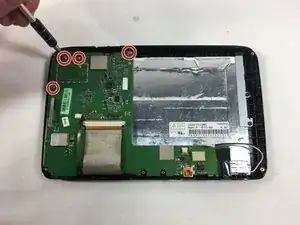

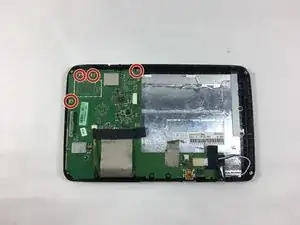

    • Unscrew four screws in the top left corner by using Phillips #0 size screwdriver.

  10. COF1sQLjQB2YjVvr
    COF1sQLjQB2YjVvr
    SROKgO6wHfXjK3qO

    • Remove all the electrical tapes from different places as indicated.

  11. K6y6Gve14aLblnuJ
    K6y6Gve14aLblnuJ
    PqPbSbFcUPSANYUX

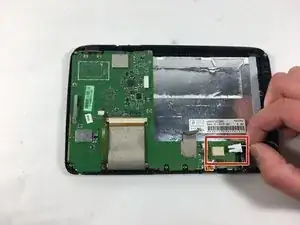

    • Remove the white clip attached with black and white wires.

    • Carefully remove the clip by pulling it to the opposite side from the clip.

  12. cPKBTnBB3xGMjMdk
    cPKBTnBB3xGMjMdk
    ChMXKgServLf4IMp
    OT1UKG1twWFwrqLA

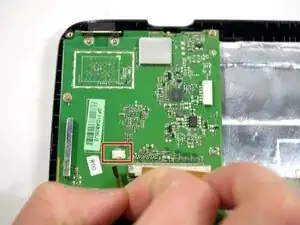

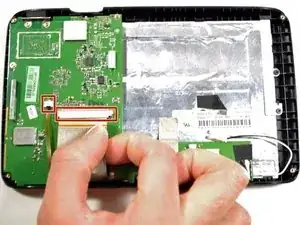

    • Unplug the wires by pushing it down and slowly pulling it towards you.

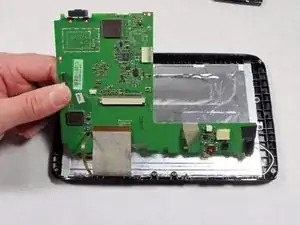

    • After unplugging the wires, take the motherboard out.

  13. hNYEHKIXHQ5SCwRX
    hNYEHKIXHQ5SCwRX
    61nEsP2JZTyCDB1D
    URf3xEenDIN1JIPV

    • Unscrew four Phillips #1 screws.

    • Remove the two metal pieces on two corners.

  14. qQA2nGnAYvEBwJcK
    qQA2nGnAYvEBwJcK
    IJFkwh2mUf5JHaDd

    • Lift touchscreen from the right side.

    • Slide the touch screen out from the top left corner.

  15. frJ6GUdXd2aEkVDs

    • Place the touchscreen gently on the table.

Abschluss

To reassemble your device, follow these instructions in reverse order.
