Einleitung

Are you having trouble getting your Magic Bullet to turn on? Are the plastic activator tabs on your Magic Bullet broken off? This guide will help you replace the activators.

  1. qHPilplnfYJCbpVq
    qHPilplnfYJCbpVq
    6vAOSPY4XWmkM3Mx
    M4WwQEh3t1URsYt3

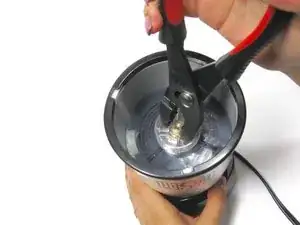

    • Use pliers to grip the gear inside of the top of the device.

    • You may have to remove a sticker that is covering the slit at the center of the bottom before completing the next step.

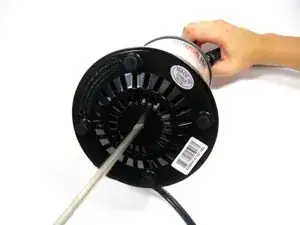

    • Insert a flathead screwdriver into the slit at the bottom of the device while still holding the pliers in place gripped on the gear.

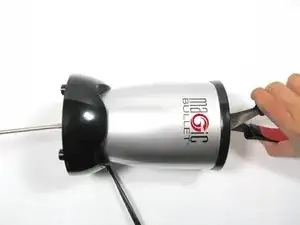

    • Lay the device on its side. Holding the screwdriver stationary to hold the bottom side in place, use the pliers to unscrew the gear by turning the pliers CLOCKWISE.

  2. xpkcbJFl23RKP6ZE

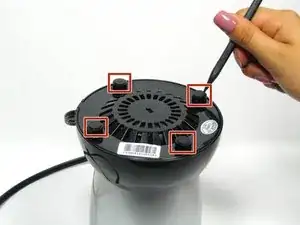

    • Remove the four rubber pegs from the feet on the base of the Magic Bullet using the spudger.

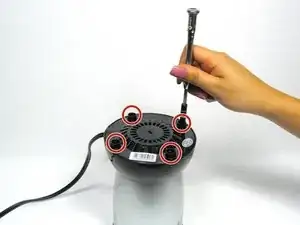

  3. 1gyQCMBdcZHQUMbe

    • Remove the four 14.0 mm Phillips head screws in the feet of the base of the Magic Bullet using the Phillips #1 screwdriver.

  4. 1tsZWnGdkQiaJmJN

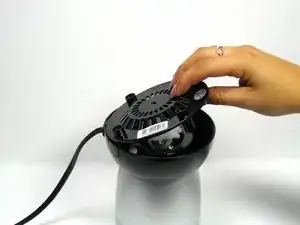

    • Remove the black base plate.

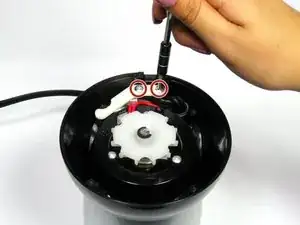

  5. X4ckjVuOqQd1RhNM

    • Remove the two 13.0 mm Phillips head screws from the white plastic cable guide using a Phillips #1 screwdriver.

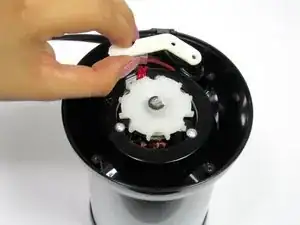

  6. DXx2i4mYeX1lWCIU

    • Remove the white plastic cable guide.

  7. sMCPTMfDslwsXiDW

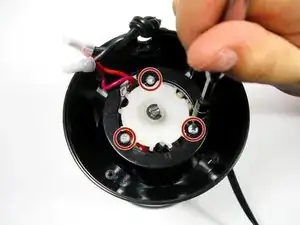

    • Remove the three 11.0 mm Phillips head screws surrounding the white fan blade on the base using the Phillips #1 screwdriver.

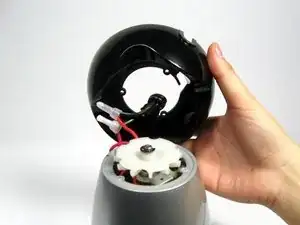

  8. AHDKFvVYpr1inuMl

    • Remove the black base.

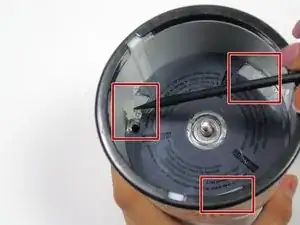

  9. BSjWQlHYFAYMb4dr

    • Remove the three white rubber spacers with the spudger.

    White rubber spacer is broke from where to get one in colombon

    anonymous 1603 -

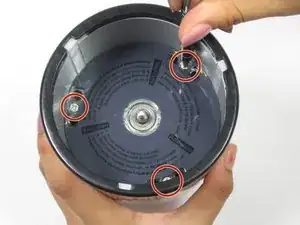

  10. pYKMYPAvVkpl15OT

    • Remove the three 11.0 mm Phillips head screws using the Phillips #1 screwdriver.

    How is called the cover held by the 3 screws? Can be bought somewhere?

    Nicolas All -

    will U give me feedback? If U have a part # will be great!

    Nicolas All -

    Mine is broken, the rest is perfect! Thanks!

    Nicolas All -

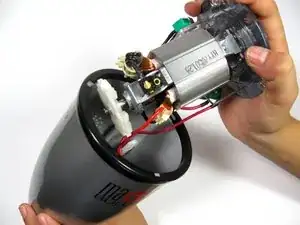

  11. 4VkVY5cMLVuZwJBj

    • Remove the motor.

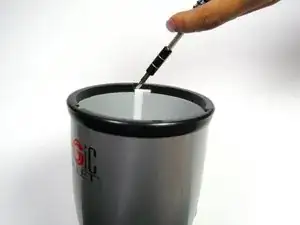

  12. h232x542v5dwNHrh
    h232x542v5dwNHrh
    IFJbsICPjCubeyOV

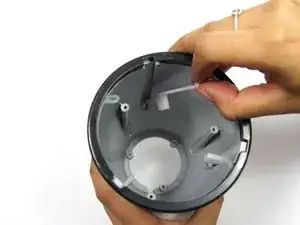

    • Wedge a flathead screwdriver in between the casing and white plastic activator.

    • Pry the white plastic activators from the casing as needed.

    Do you know of anywhere to just buy the activator part for this machine? Thanks

    Izzi -

Abschluss

To reassemble your device, follow these instructions in reverse order.
