Magic Bullet NutriBullet Activator Replacement

Geschrieben von: Angela Wong
  • Kommentare: 58
Magic Bullet NutriBullet Activator Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 Minuten

Einleitung

On the top of the NutriBullet powerbase, there are three white activators that initiate the active blending process. This replacement guide will provide instructions on how to replace these activators.

  1. cWUnfTDVVJCBJ2T4

    • Unplug the device from the wall and turn the powerbase upside down.

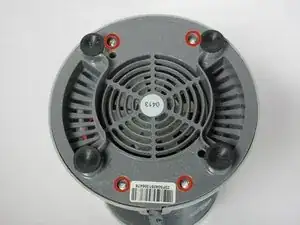

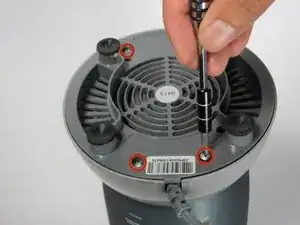

  2. gCbOLE2FyWrMN5pv
    gCbOLE2FyWrMN5pv
    2TDlMg6LtlU2x1CU

    • Use a #2 Phillips Head Screwdriver to unscrew the four 10 mm screws located on the bottom of the power base.

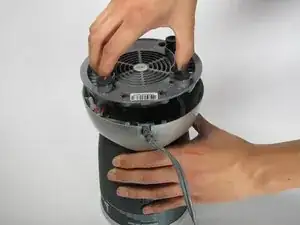

  3. ujEW2SMeZofertYq

    • Use slight tension to remove the plastic base from the NutriBullet once all of the screws are removed.

    • Once the plastic base is removed, there is a fan located in the center of the powerbase. Make sure the cord does not get caught or frayed by the fan.

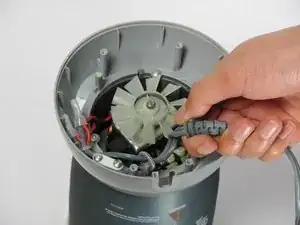

  4. tjQUvDP2KWgcOJnS

    • Lift the power cord to remove it from the side slot on the curved base.

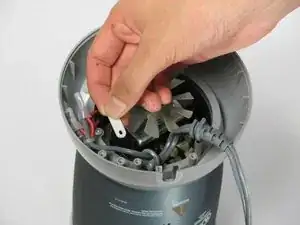

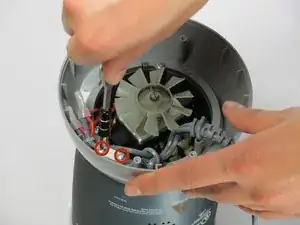

  5. g1eDnXEVBMBZLnO2
    g1eDnXEVBMBZLnO2
    TTMSygaRalAIiFCr

    • Use a #2 Phillips Head Screwdriver to remove the two 10 mm screws that secure the white bracket down.

    • The white safety bracket holds the cord down. After removing it, the cord will be loosened.

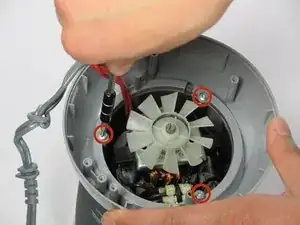

  6. nhKwCnYWWwARTrFq

    • Use a #2 Phillips Head Screwdriver to remove the three 10mm screws that keep the base in place.

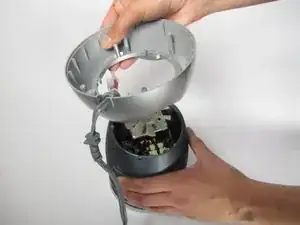

  7. s64mtOVQRKGWIXCq

    • Use slight tension to remove the curved base by lifting it upward off of the outside casing.

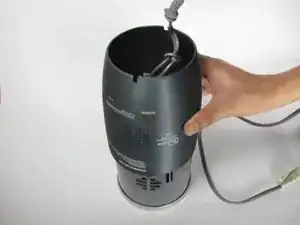

  8. qjCHNyaEuBHLoTuU

    • Wiggle the outside casing upward until it separates from the powerbase.

    • Hold the ring at the bottom of the powerbase to receive a better grip.

    I used my Nutribullet no more than 15 times, or maybe 20, and only for making smoothies, with almond milk, chunks of fruit, and some ground flax. I never ran the motor for more than 30-40 seconds at a time (even though the one-minute limit was nowhere to be found among the instructions. It just gave out on me. I realize now that it was made to give out after a couple of dozen uses. Now it goes to landfill. I will never again buy ANYTHING at Bed Bath & Beyond. They are in business to sell overpriced schlock.

    Judy Mellow -

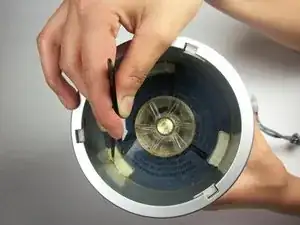

  9. JLILxeHBZuMc4KZU

    • Place the NutriBullet powerbase on the table so that the white activators are visible. Remove the three rubber protectors from the activators using either tweezers or your fingers.

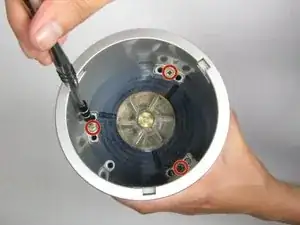

  10. jWWZIdhTKqBA6DpH

    • Remove the three 15mm screws with the Philips Head 2 Screwdriver.

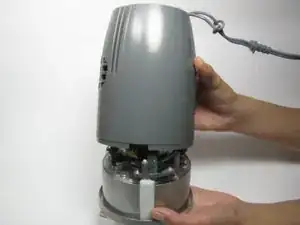

  11. N2Dk6jFEwHxGLlYP

    • Turn the NutriBullet powerbase upside down and remove the plastic casing by lifting it up.

    In that step on my case, because of leaks it sticked to the base. I had to use a bit more force and I rotated left right until it loosed a bit. I think some kind of alcohol can help as well.

    Bartosz Kolada -

    I had trouble separating the plastic and the motor assembly as they were stuck with spilt liquid.

    Some alcohol and some persistent gentle persuasion got them apart for me.

    Matthew Beaver -

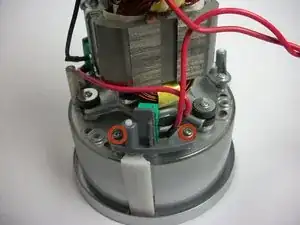

  12. dDUFwNIEQVmefMTA

    • Determine which activator(s) fail to work by applying pressure to them. Then, remove the two 15mm screws that hold the activators in place by using the Philips Head 2 screwdriver.

    • There are a total of three activators on the device.

    Where do I find the parts?

    Maria Elena Castillo -

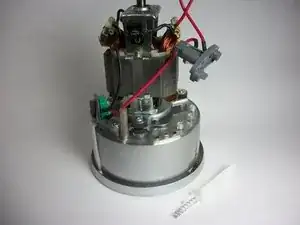

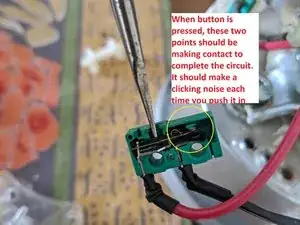

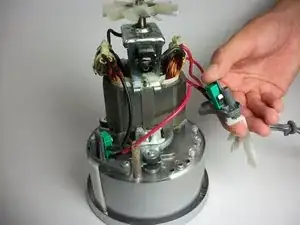

  13. Kf3Z5MrEEykUbprY
    Kf3Z5MrEEykUbprY
    1pLPOKnYnPpbBZAx
    bQhpehG1E2HHPjIy

    • Using slight tension, pull the loose activator from the slot.

    • The white plastic activator should fall out and they can now be replaced.

    I'm missing one of the 3 activators. How can it be replaced? Called customer care and was told they do not sell the activator caps and I would have to buy the entire motor base for $50. I just need one little plastic activator! Any suggestions?

    reneemccown -

    That does not make me feel confident. One of my activators stopped working, so I can't even push the container on to activate it. not happy with maybe having to buy the whole machine again.

    the_journeyman333 -

    One activator stopped working and I can’t blend. This happened to mine and I didn’t use it that much. I won’t buy another one. Thanks.

    regina cross -

    Has anyone been able to buy an activator in the UK? if so where can I get one?

    iva -

    You may wish to take note of the way that some of the pieces are aligned during dis-assembly to make re-assembly easier. Two items in particular: the two plastic sleeves have to be replaced in such a way that the air vents are aligned and the base needs to be oriented in a way that allows for the securing of the power cable so that it is out of the fan’s way. Thanks!

    M Rethazi -

    A simple cleaning of the activators with hot water may fix the problem of activators blocked !

    Frederic Houlez -

    I was very optimistic when I found these detailed instructions to repair the activators. Very clear and easy to follow, but alas… See the three plastic nubs that the activator attaches to with the two screws? They seem to be very weak spots. One of mine snapped off, and once that happens, I’m not sure there is any solution. Any ideas? A potential waste of a good motor. I wonder if this is a “designed to fail” kind of thing.

    Gis -

    I have the same problem. Did you manage to fix it? It yes, how?

    roangel17 -

    To everyone who is looking a replacement activator (the small green part), I was able to REPAIR the activator itself. Once you take off the green component (after step #13), you can actually open up the green component. The small metal tab will fall out, so don’t lose it, you will put it back in later. The small black button may also fall out, so don’t lose that either. The problem in my case was that the switch was stuck. I used a small screwdriver to wiggle the little metal piece inside until it snapped back into place. When you depress the internal metal piece, it should make a “clicking” noise, and the metal tab should connect the circuit (red wire to black wire). Once that is working again you can reassemble it carefully and make sure you still hear the clicking noise.

    Not sure if this link will work or not but I took a photo https://photos.app.goo.gl/kj5Cdz13cE4yQC...

    If you read the label on the component you can find replacement, mine said “donghai kw4-3z-3a”. https://www.ebay.com/itm/392605448299

    Caleb Gruber -

    One of my green switches (micro-switch) had frozen stuck and wasn’t clicking (switching). I was about to pry it apart when I thought, why not try to just force it, see if it frees up? It did. I pressed down on the metal tab with my finger, levering down on that little black button. After trying that about 3 or 4 times it freed up and returned to its original state (where it clicks like its supposed to).

    Try this before either giving up or committing to prying it open.

    dbay -

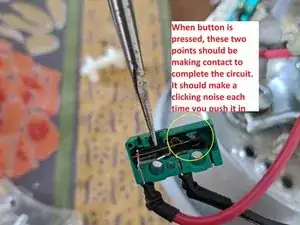

  14. Gek2mksGSLbpXsgW

    • Open up the green switch. The metal tab and black button will fall out. Fiddle around with the metal switch on the inside to snap it back into place and then reassemble carefully. It should make a clicking noise.

    Great help thanks

    Michael Doheny -

Abschluss

To reassemble your device, follow these instructions in reverse order.
