Einleitung
Is there a tear or cut in your cord? If so, refer to this guide to replace the power cord. This guide will require some soldering experience.
Werkzeuge
-
-
Before beginning, make sure the device is unplugged.
-

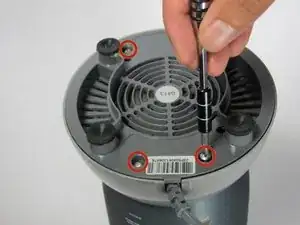

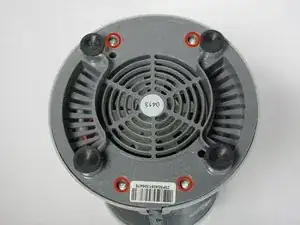

With a Phillips head #2 screwdriver, begin unscrewing the four 10mm screws located on the bottom of the power base.
-
-
-

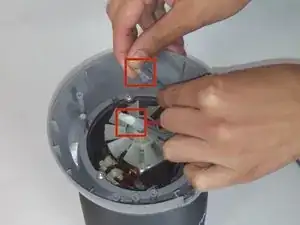

With the Phillips head #2 screwdriver, remove the two 10mm screws that secure the white bracket.
-
-
-

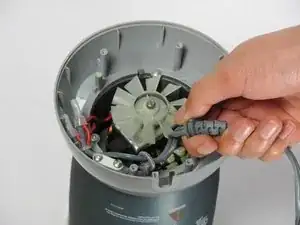

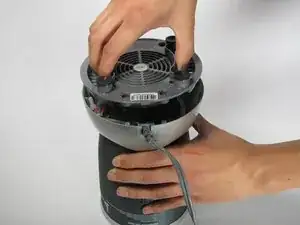

After removing the gray base and silver casing, the wires will now be free and you will have easy access to them.
-

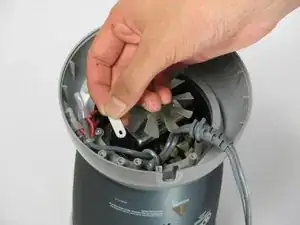

Gently pull out the two plastic covers at the end of the wires.
-
-
-
Use tape or clamps to hold the wires together for an easy soldering experience.
-

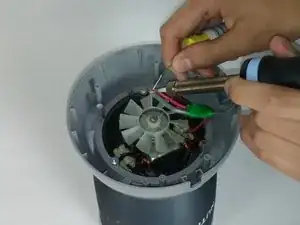

Using a soldering iron, solder your new wire to the red wire.
-
Since this guide replacement requires cutting wires, if you want to reassemble this device, you must first re-solder new wires before following the steps backwards to reassemble the device.
