Magic Bullet NutriBullet Pro Activator Replacement

Geschrieben von: Malcolm Smith Fraser
  • Kommentare: 7
Magic Bullet NutriBullet Pro Activator Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

If your Magic Bullet NutriBullet Pro won't activate, and you have determined that the activators are the culprit, follow this guide to replace them. This guide will work to replace all three activators.

  1. MYl2gqIdalKZPeBx
    MYl2gqIdalKZPeBx
    eUMHscoMCYCaPWdN
    xp3rfTK4JtBcfe1c

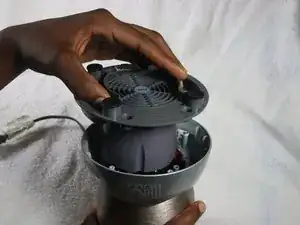

    • To start the disassembly of the Magic Bullet NutriBullet Pro you will begin from the bottom.

    • Flip the device over to the bottom.

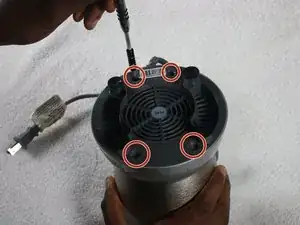

    • Unscrew the four 1 cm screws using #2 Phillips Head Screwdriver.

    • Remove the loose bottom portion of the device by pulling up from the bottom.

  2. SNUZLqcWAnyewXpj
    SNUZLqcWAnyewXpj
    RLqsk6SCIHJOSXGx

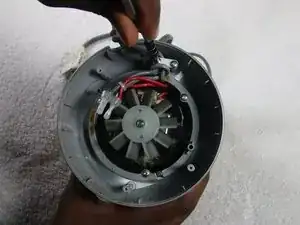

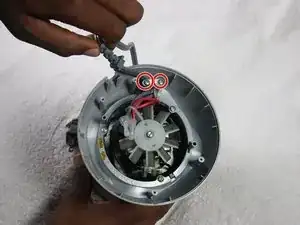

    • Unscrew the two 1 cm screws holding down the power cord using the #2 Phillips Head Screwdriver.

  3. 6eZOlYqOAYkFqGeO
    6eZOlYqOAYkFqGeO
    fPNBYwTi5pxQaxeB
    5DYOYbe6beBMyCl3

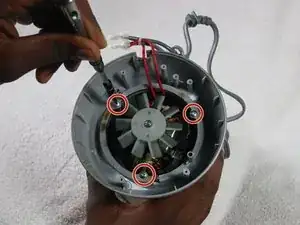

    • Unscrew the three 1 cm screws on the device circled on the screws pictures using the #1 Philips Head Screwdriver.

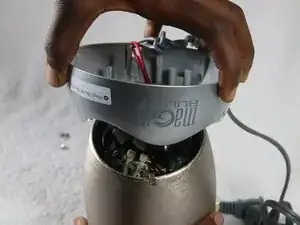

    • Lift off the grey plastic piece off.

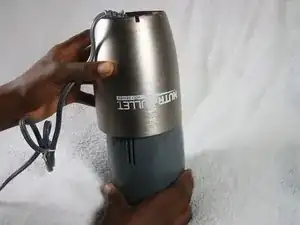

    • Slide off the silver metal piece.

  4. CcYNwESSd3FDDbMK
    CcYNwESSd3FDDbMK
    KDrG1DH3IEpKZ6CT

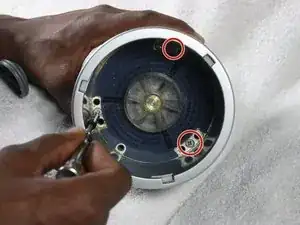

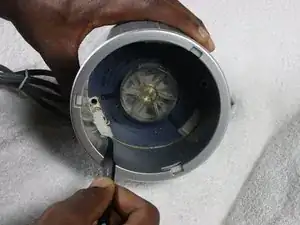

    • Flip the device over.

    • Remove the three rubber seals covering the screws by pulling the components upward with the tweezer.

    • Unscrew the three 16 mm screws using the #2 Phillips Head Screwdriver.

  5. bd3vpjOf6H226o2O
    bd3vpjOf6H226o2O
    OijybfxRVa4vCVdg

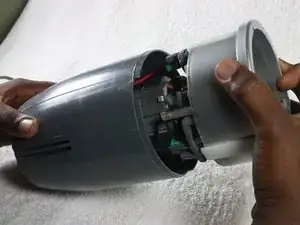

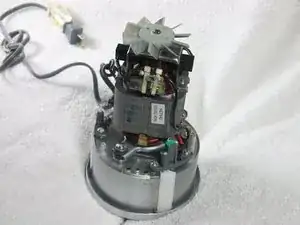

    • Pull off the casing from the device.

  6. KqKs5fOP3FTm2DrO
    KqKs5fOP3FTm2DrO
    B6bBRy4ZhZqfJIb1

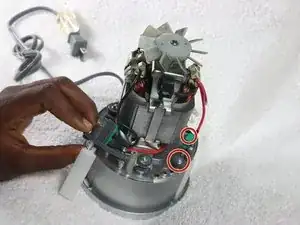

    • Remove the two 8 mm screws using the #2 Phillips Head Screwdriver while holding the activator in place.

    • There are three separate activators with two screws each.

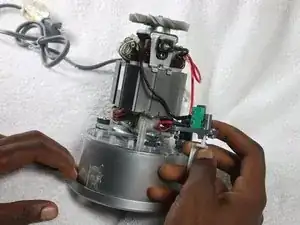

  7. 64wW24BqRHF1wXcc

    • Be careful of the spring flying out.

    • Lift activator out of the Magic Bullet housing while holding the spring with tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Malcolm Smith Fraser

Mitglied seit: 03/10/16

272 Reputation

7 Kommentare

Where can I buy the actual activator?? Two on my nutribullet broke from the base.

Ed David -

Can you direct me to where I can buy spare parts for this bullet? As I need to replace the three black plastic moving parts that are pressed down by the lid that activates the switches.

Thankyou fir this great guide

Tony Chadwick -

Please can you direct me to where i can buy soare parts for this Bullet?

I need to replace the worn out 3 black plastic sliders that are pressed down by by the lid to activate it.

Many thanks

Tony

Tony Chadwick -

1. How do I know if culprit is activators? My spice grinder blade works, but not the blender blade and extra I bought

2. If it IS activator, do I need to buy new ones? Or just reassemble with original parts?

sharipaula -

I thought it was the activators, since they were pretty gummed up from use. However, I believe the culprit is the mounting posts for the motor. They have rubber grommets attached to control vibration and all three of the posts the grommets go over have snapped off the mounting plate :(

I’ll try superglue, but don’t think it’s going to hold.

I’d like to remove the motor shaft from the top plate, but don’t see a way how to do that.

twhitehead928 -

looking for a source for activators. Tried several sites but, none seem to have them.

Any help?

Len -

I need a schematic diagram or at least a picture of the printed circuit board. Can you help me with that?

Andre Kocsis -
