This guide will walk you through the process of replacing the front axle in a Maisto Rock Crawler.
Werkzeuge
-
-
Flip the R/C truck over.
-

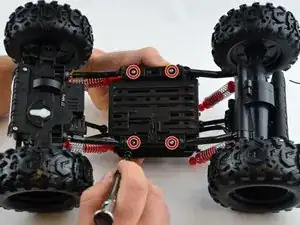

To take off the R/C truck top, use the driver and bit PH2 and remove the four 7.7mm Philips screws highlighted.
-
-
-

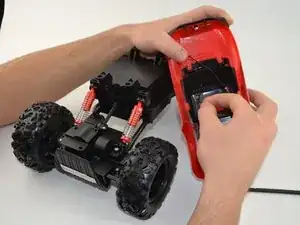

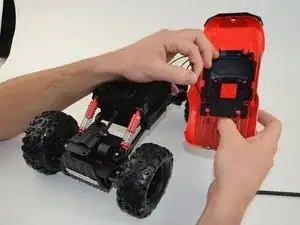

Half way remove the truck top so you can unhinge the antenna from the clips.
-
Remove the R/C truck top completely.
-
-
-
Use the Driver and bit J1 to remove the top under-body plate by unscrewing the eight 9.5mm Philips screws.
-
-
-
After removing the plate use the driver and bit J1 to unscrew the two 9.5 mm Philips screws that hold the side circuit board in.
-
-
-

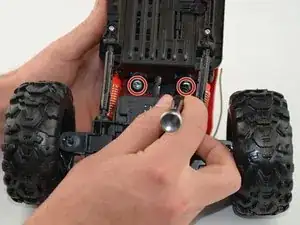

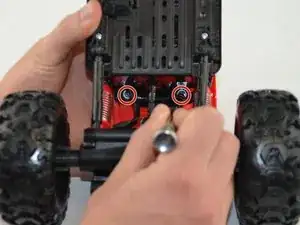

Flip the R/C truck over and remove the four 10 mm bottom under-body plate screws using the driver and bit PH2.
-
-
-

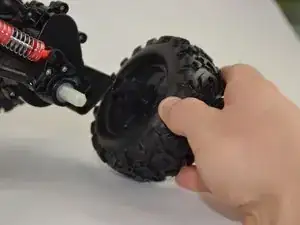

You can refer to the tire replacement guide to keep salvageable tires from the removed axle.
-
To reassemble your device, follow these instructions in reverse order.
