Maisto Rock Crawler Remote Circuit Board Replacement

Geschrieben von: kevin
  • Kommentare: 6
Maisto Rock Crawler Remote Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

This guide will walk you through the process of the remote circuit board in a Maisto Rock Crawler.

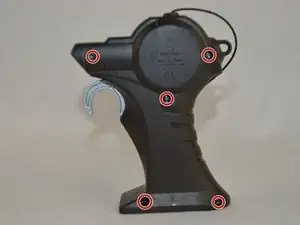

  1. P4PfP55tMFH1YRsa

    • Remove the batteries before doing anything.

    • Use the driver and bit J1 to remove the five 9.5mm Philips screws holding the remote together.

  2. tkuWWWxtTH34CcGc

    • Take off the half of the remote that had the screw heads facing up.

  3. BlPlMAHBbvAKTHyF

    • Slide out the circuit board.

    • Use the soldering iron to desolder the 3 wires.

    Thanks!

    Now I know how to demount the PCB.

    But where I can get a spare part for a defect board?

    Renard

    Renard23 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
