Maisto Rock Crawler Truck Circuit Board Replacement

Geschrieben von: kevin
  • Kommentare: 8
Maisto Rock Crawler Truck Circuit Board Replacement

Schwierigkeitsgrad

Very difficult

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This guide will walk you through the process of replacing the truck circuit board in a Maisto Rock Crawler.

  1. JTPsTC2jD6LcwZol
    JTPsTC2jD6LcwZol
    UjehgMWMhWKUaPHF

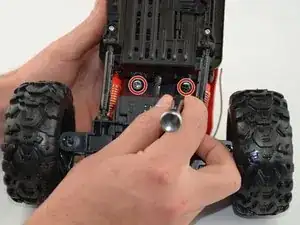

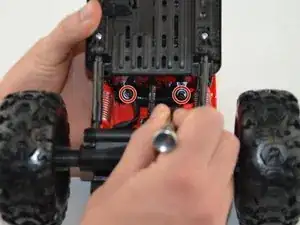

    • Flip the R/C truck over.

    • To take off the R/C truck top, use the driver and bit PH2 and remove the four 7.7mm Philips screws highlighted.

  2. YQuKUlDPOTplchpr
    YQuKUlDPOTplchpr
    CVlLp4KopqgntFIF

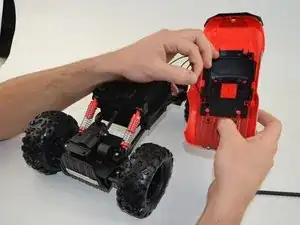

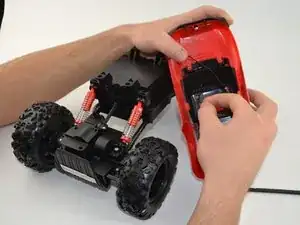

    • Half way remove the truck top so you can unhinge the antenna from the clips.

    • Remove the R/C truck top completely.

  3. 5OULh1ZUuKR6IqFs

    • Use the Driver and bit J1 to remove the top under-body plate by unscrewing the eight 9.5mm Philips screws.

  4. p1yuV52ZnGclQkDo

    • Use the driver and bit J1 and remove the 7.7mm Philips screw highlighted.

  5. WcKvLcRhhENW4HeT

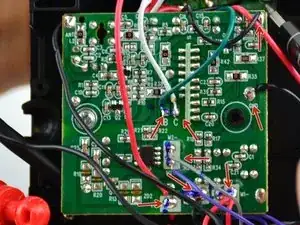

    • Take note of which wire is connected at which pin before desoldering. It might help to mark the wires and take a picture.

    • It would be easier to desolder and resolder only one component at a time.

    • Use the soldering iron to desolder all the wires connected to the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
