Makita Chain Saw EA6100PR 2017 Chain Tensioner and Slide Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 1
Makita Chain Saw EA6100PR 2017 Chain Tensioner and Slide Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 40 Minuten

Einleitung

This guide shows how to remove and replace the chain tensioner module in a Makita chainsaw.

Optional Tools:

  • Chainsaw scrench

  1. RswXmitWNAYCqStW

    • Use a 13 mm socket to remove the two nuts securing the sprocket guard plate.

  2. lyw5XWYfZrCsTgJt

    • Remove the sprocket guard plate.

  3. it21jPSJ3WBYBNKr

    • If the chainsaw has a chain and guide bar installed, follow the manufacturer's instructions and remove them before proceeding.

    • During reassembly, if you are reinstalling the chain and guide bar, follow the manufacturers instructions on proper chain tensioning techniques.

  4. AqVSvoeFYV5vX3GZ

    • Remove the four 12 mm long T27 screws securing the chain brake cover.

  5. IB5X4sIPOTNNiUCd

    • Remove the chain brake cover.

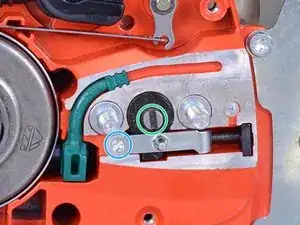

  6. 2WJWbmvuKRgDwfMC

    • Twist the tension screw clockwise until the slide bar stops at the right end.

    • Remove the single 15.7 mm long T27 screw holding the chain tensioner assembly in place.

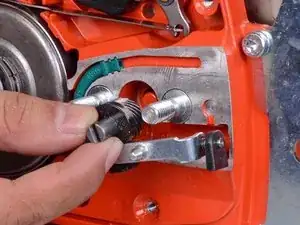

  7. qVGyM6dUVSWUOnYE

    • Use your fingers to pull the assembly out of its recess and remove it.

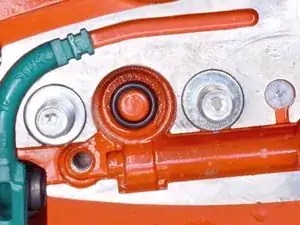

  8. TQfJXdLvJYTkbbZu

    • If the packing ring did not come out with the assembly, remove it from the recess.

    The chain tensioner is attached to the adjustment screw and fits into a hole on the bar, and it's tough to find a tensioner for the newcomers. This article is helping me to find out the tensioner. This site https://powertoolsadvisor.com/makita/xcu... from I know about Makita chainsaw. And learning about tensioner from your article both sites from I benefited.

    Anthony -

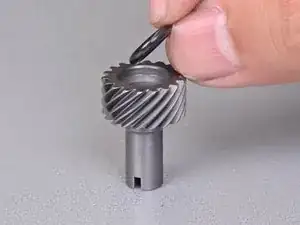

  9. bgEYWQDSGMd2AdCN

    • The next three steps show how to prepare the new tensioning assembly for replacement.

    • Lightly lubricate the packing ring and press it into the back of the adjustment screw.

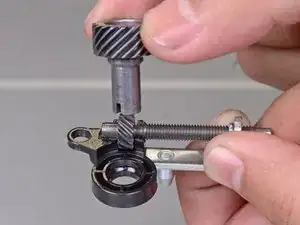

  10. IDlAWeBdLB4WnW4n

    • Slide the adjustment screw into the tensioning assembly such that the gears mesh together.

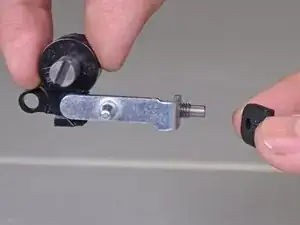

  11. dKDbkWqYbgKomBPE

    • Slide the shaped plastic bearing onto the end of the assembly.

    • Lightly lubricate all moving surfaces.

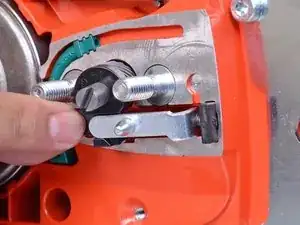

  12. 21eruRK5TIRiTMU6

    • Line up the tensioning assembly with its recess in the chainsaw and push it into the recess.

    • Make sure that the black plastic bearing slides in rounded-edge first.

Abschluss

To reassemble your device, follow these instructions in reverse order.
