Makita DT01 Motor Replacement

Geschrieben von: Haseeb Ur Rehman
  • Kommentare: 0
Makita DT01 Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

If you motor produces little torque or is dead, this guide will show you how to replace the part.

  1. VJGRqRvjPOKZYkYx

    • Place your fingers on the grip to pull out the battery from the device.

  2. HLphMf4ZcBvbTFhB

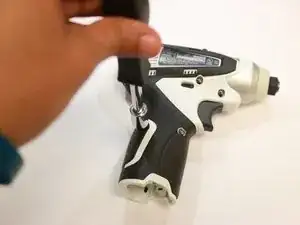

    • Unscrew the device using the driver from the JIS kit.

    • Use the part J1 as the Screw diver tip.

    • There are 6 screws and each have a 15 mm Phillips-head.

  3. 1ASxTdfMjtveSjC6

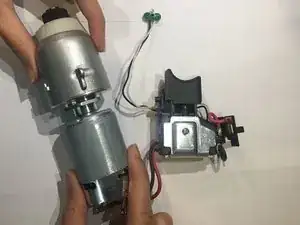

    • Pull both ends of the device to separate the motor from the rest of the device.

  4. ivBCNDKnOmd2gZIR
    ivBCNDKnOmd2gZIR
    FXit62UYDUpUkJmP
    nMLDkayMjmU6TPXP

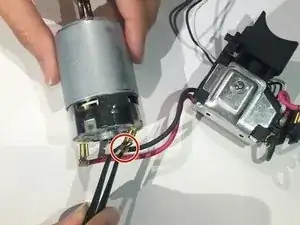

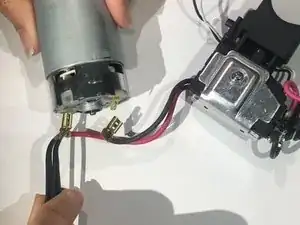

    • Use the tweezer to disconnect both the wires connected to the motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
