Einleitung

This is a guide detailing the steps to replace the armature.

  1. ipwJW1BJ2m4Y6DHs
    • Check for the provided lock nut wrench. This is used for loosening the piece that keeps the disk and cover attached.

  2. k5aNL63dsDqPKHSd
    • Unscrew the handle unit until it is removed completely.

  3. uQ3rrMGIEpX6SN2d
    uQ3rrMGIEpX6SN2d
    LSRwSTJxhANsA2NG
    • Hold the black switch located on the front casing.

    • Still holding the switch, use the lock nut wrench to loosen the silver disk holding everything in place.

    • Once loose, remove the silver disk and/or your grinding disk.

  4. fVK22ouyPDTyHZSW
    fVK22ouyPDTyHZSW
    YUCdCjCoIoEhbkXJ
    • Use a Phillips #02 screwdriver to remove the 15 mm pan head screw that holds the cover in place.

    • Remove the cover by lining up the knob on the cover with the notch in face plate.

  5. ITFLolsgjunuX5VD
    ITFLolsgjunuX5VD
    wJmQSmULKY3UDUN4
    • Unscrew the 20 mm tapping screw using a Philips #02 screwdriver.

  6. FTBa4amAXWI2Hp4w
    • Slide the back cover down the power cable.

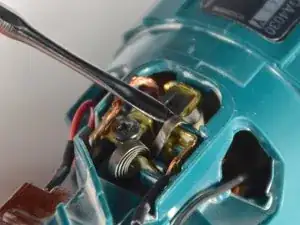

  7. MHMQoGMWaI4453yD
    MHMQoGMWaI4453yD
    vsKOPsddPlsyveTJ
    • Use a spudger to gently move the brush holder coil to the side.

    • There are two brushes that are secured by two separate brush holders, one on each side.

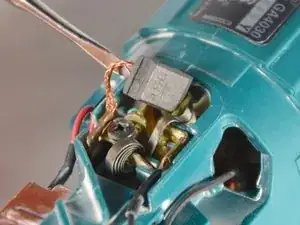

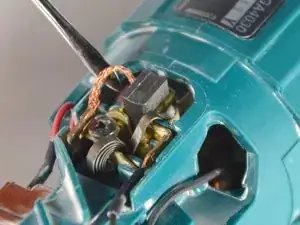

  8. qeiLVrjBZsBAWAGH
    qeiLVrjBZsBAWAGH
    JbOHoFxxe6JEETOP
    • Using a metal spudger, remove both carbon brushes (one on each side) by their copper cabling.

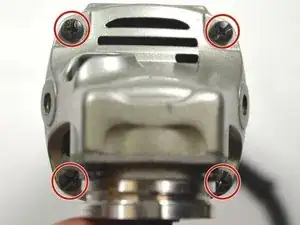

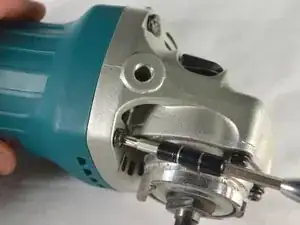

  9. yHmxAPxcYBsQTaAP
    yHmxAPxcYBsQTaAP
    bjW6FjDsRn35VkBd
    4YvCblWutBrbkfqo
    • Use a Phillips #2 screwdriver to remove the four 20 mm tapping screws that hold the armature assembly in place.

    • Remove the armature assembly

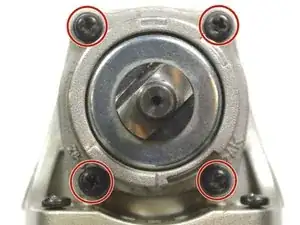

  10. usTgrotWdfMOoT3Z
    usTgrotWdfMOoT3Z
    6pKcS2UFGcOklk2p

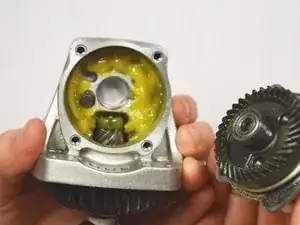

    • Unscrew the four 10 mm tapping screws holding the faceplate using a Phillips #02 screwdriver.

    • Remove the faceplate.

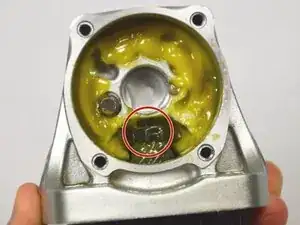

  11. jiopiIO1Rt6RQ6yX
    jiopiIO1Rt6RQ6yX
    whFMpOeLaZqtQo2D
    • Hold the highlighted nut with a size 10 wrench. Unscrew by turning the armature and holding the nut in place.

    • The nut may be difficult to remove.

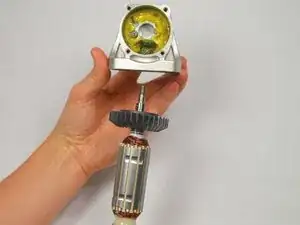

  12. nBdlSUBBXEb4NMA1
    • Remove the armature.

Abschluss

To reassemble your device, follow these instructions in reverse order.
