Makita Jack Hammer HM1203C 2010 Handle Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 0
Makita Jack Hammer HM1203C 2010 Handle Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

2 - 5 Minuten

Einleitung

Use this guide to remove or replace the handle on a Makita Jack Hammer HM1203C 2010.

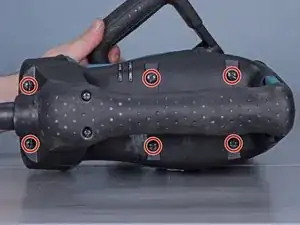

  1. HKqQagNOWWRTOJjV

    • Use a Phillips #2 screwdriver to remove the six screws securing the handle assembly.

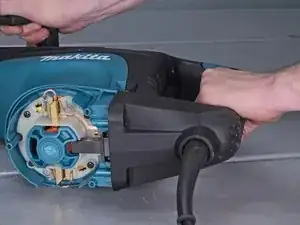

  2. 2pVWdOdjLuAGvbFv
    2pVWdOdjLuAGvbFv
    KfyXxV2lusVRdPbC

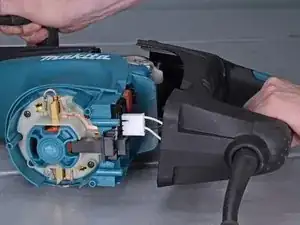

    aDg3gHoxFg4bZcA6

    • Pull the handle assembly away from the hammer, but do not completely remove it yet. It's still connected to the hammer by a power cable.

  3. OJZbdwkJojcfTmTJ
    OJZbdwkJojcfTmTJ

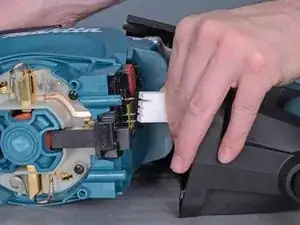

    63sYARBsXdbYUCuR

    • Pull the power connector straight off of its plug.

    • Remove the handle assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
