Makita Jack Hammer HM1203C 2010 Power Cord Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 1
Makita Jack Hammer HM1203C 2010 Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to replace the power cord in a Makita Jack Hammer HM1203C 2010.

  1. DXSXJ1NamfkRRqKG

    • Make sure the hammer is disconnected from power before beginning any repair.

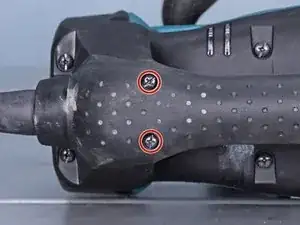

    • Use a Phillips #2 screwdriver to remove two screws securing the handle cover.

  2. SBEAVkHwKpRLOi3v
    SBEAVkHwKpRLOi3v
    lWpDMvFAdYBqMnqd

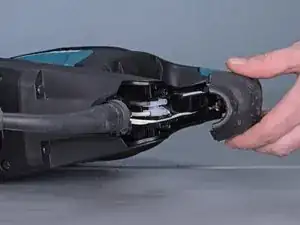

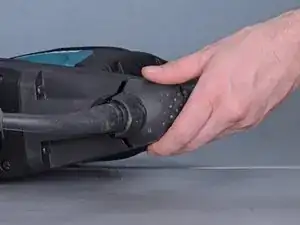

    • Swing the bottom of the handle cover away from the hammer, then pull the cover down, toward the power cord, to remove it.

  3. JjaqOQuTI5YTQMJg

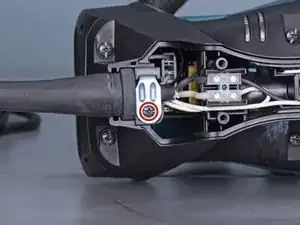

    • Use a Phillips #2 screwdriver to remove the screw securing the power cord bracket.

  4. 4J6C5BWaGZxEXGOM
    4J6C5BWaGZxEXGOM
    2xUYxXCXHVPLXLTt

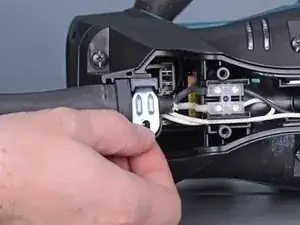

    • Lift the bottom edge of the bracket away from the hammer slightly, then pull down to remove it.

    • During reassembly, make sure the top hooked part of the bracket is inserted properly into its slot.

  5. 5eepYmLcB6hBfiYM

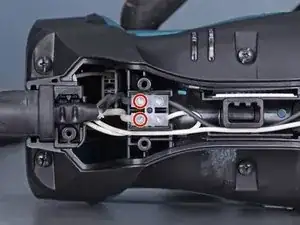

    • Use a 2.5 mm flathead screwdriver to loosen the two set screws holding in the power cord wires.

  6. XqQOE5xK6C6Mp5Bn
    XqQOE5xK6C6Mp5Bn
    2vaaEDVfGvwPVmDZ
    WRiqH4PdPILbuluY

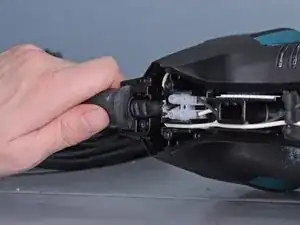

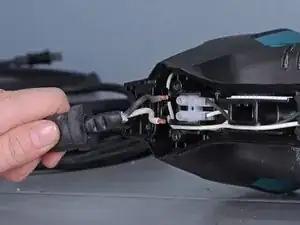

    • Remove the power cord.

  7. rsCfYrF2FW5Dk6PC
    rsCfYrF2FW5Dk6PC
    PFk6RpgtBmePgPhT

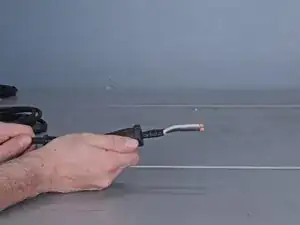

    • Slide the power cord guard off of the power cord.

    • During reassembly, install this guard on the new power cord.

  8. MTQABKpvNdtwrlyE
    MTQABKpvNdtwrlyE
    fEGfnoNiBxAAqUCR

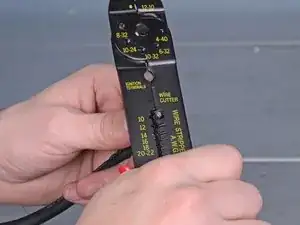

    • Use 10 gauge wire strippers to strip about 1/8 inch of insulation off of each wire of the new power cord.

Abschluss

To reassemble your device, follow these instructions in reverse order.
