This guide is a prerequisite and is not meant to be used on its own! These steps illustrate the removal of the controller cover in a Makita HM1307CB jack hammer.

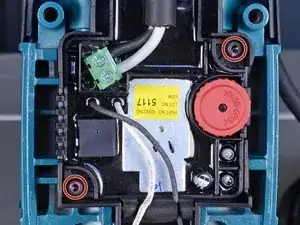

  1. OM4K3YGDglAhfXjp

    • Remove the two hex screws holding the controller cover in place.

    • During reassembly, clean the residual threadlocker from these screws, then reapply high-strength (red) threadlocker to each one before reinstalling.

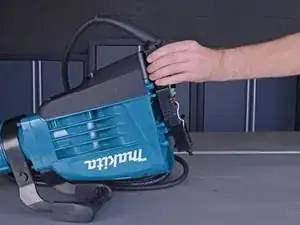

  2. ywcBOcw5MAQPQHVL
    ywcBOcw5MAQPQHVL

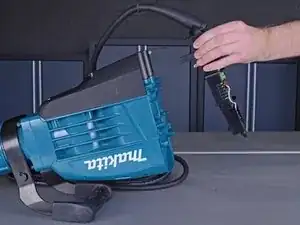

    r3LD1iMYEaOMTZKI

    • Remove the controller cover and the attached power supply cord from the jack hammer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
