Makita XPH01 Drill Brush Replacement

Geschrieben von: Eric Herwatt
  • Kommentare: 1
Makita XPH01 Drill Brush Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

7 - 10 Minuten

Einleitung

The drill contains two drill brushes. This guide will show you the necessary steps to locate and replace both drill brushes. It shows how to remove the battery and back panel to locate the drill brushes.

  1. KMARsfTkJtwpNxxE

    • Hold the drill upright.

    • Place your finger on the white battery-release button.

  2. 3BRFtELW4F61dsFC

    • Press and hold the white release button located on the front of the battery.

  3. LltKYZ2u3xLbG4Fm

    • Slide the battery forward while pressing down on the white battery-release button.

  4. hCDPFNOiyFckVGbB

    • Hold the drill upright with the back panel facing you.

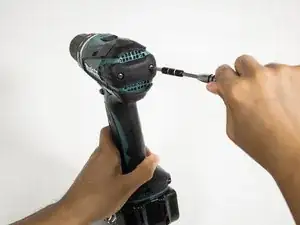

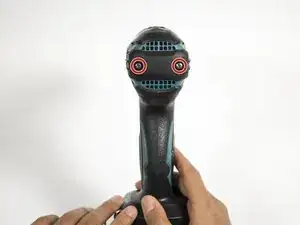

  5. VaaluyEtxvdMK2wt
    VaaluyEtxvdMK2wt
    fHnHQFMo6CMRCZuM

    • Unscrew two 18mm screws from the back panel with the Phillips PH2 screwdriver.

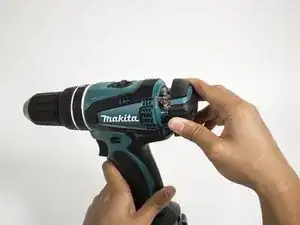

  6. DWdBR6VRDponpkUp
    DWdBR6VRDponpkUp
    XvEQaR1Cfa35Nvwi

    • Apply slight pressure to the sides of the backplate and pull away from the drill.

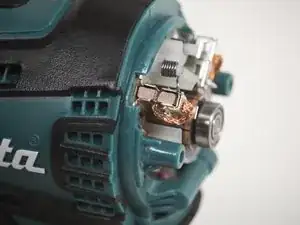

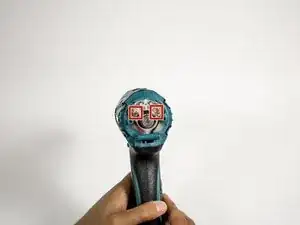

  7. msKjOjZxLkCxp4dE
    msKjOjZxLkCxp4dE
    IOULFg3SoMcUU2aL
    xDAbUuZIJHRLcDhX

    • Hold the drill so the back end is facing toward you.

    • Use the spudger to lift the spring clip out of the back notch.

    • Pull the spring clip forward and rest it in the front notch.

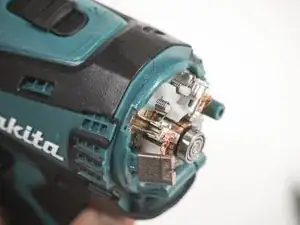

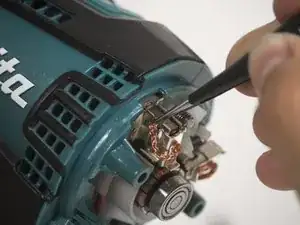

  8. jPHhsYXacTIKZLqH
    jPHhsYXacTIKZLqH
    BCo5eQmKLerdPac6

    • Use the tweezers to pull the drill brush away from the sleeve.

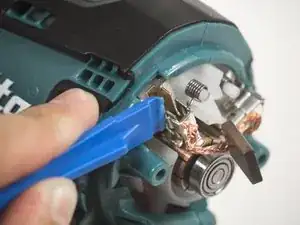

  9. 3wM5244QNxXb1Lyb
    3wM5244QNxXb1Lyb
    HGI42psEvHtBYtWw

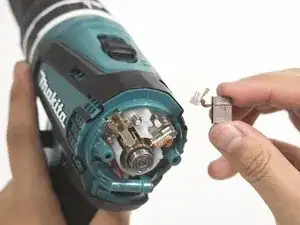

    5bYdfS5oxDJOZhYf

    • Use the plastic opening tool to release the clip connected to the drill brush.

    • Separate the drill brush away from the clip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
