Makita XPH01 Gear Select Switch Replacement

Geschrieben von: Eric Herwatt
  • Kommentare: 0
Makita XPH01 Gear Select Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

This guide will show you the necessary steps to locate and replace the gear select switch. It shows how to remove the battery and the outer casing in order to locate the gear select switch.

  1. aeyBU6IOGICygSQ3
    aeyBU6IOGICygSQ3
    kmpWZZcHGWW6SehR

    • Hold the drill upright with the back panel facing you.

    • Unscrew the two 18 mm screws from the back panel using a Phillips PH2 screwdriver.

  2. N5LlvcjdjeuNxBkb

    • Apply slight pressure to the sides of the backplate and pull away from the drill.

  3. XDNtUUCtHct3HgjE
    XDNtUUCtHct3HgjE
    BFeqCQV5rN4VwFOO

    • Unscrew the nine 18 mm screws from the outer casing using a Phillips PH2 screwdriver.

  4. kHdTWUhk5Mupxo1D
    kHdTWUhk5Mupxo1D
    wJ4HQJXDrhwDTbqG

    • Apply slight pressure to the sides of the outer casing and pull away from the drill.

  5. qRVaI5l3RRHkKXea

    • Pull the silver metal clip located towards the back of drill away from the motor assembly.

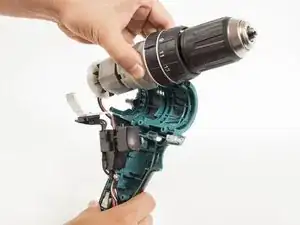

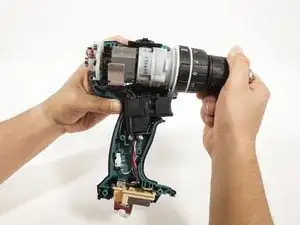

  6. nBug61aJXkUvwOLS
    nBug61aJXkUvwOLS
    MpTCw1Cb5YSR2SDZ

    • Gently grip the front of the motor assembly and pull it out of the plastic casing.

    • The wires are still connected to the back of the motor assembly, so use caution when pulling the motor out. Failing to do this will result in parts falling off the back of the motor

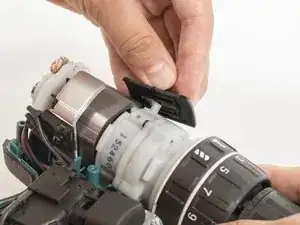

  7. 1bQdVnSAs5sC5Vs2
    1bQdVnSAs5sC5Vs2
    QKDWlZrMEPTXfe3l

    • Push gear select switch forward.

    • Lift the gear select switch to separate it from the motor assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
