Makita XPH01 Outer Casing Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 7 Minuten

Einleitung

The outer casing of the drill needs to be taken out in order to replace the other parts of the drill. There are a total of nine 18 mm screws that needs to be taken out of the outer casing. This guide serves as a prerequisite guide for the other replacement guides.

  1. KMARsfTkJtwpNxxE

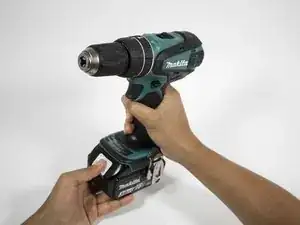

    • Hold the drill upright.

    • Place your finger on the white battery-release button.

  2. 3BRFtELW4F61dsFC

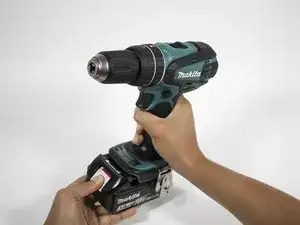

    • Press and hold the white release button located on the front of the battery.

  3. LltKYZ2u3xLbG4Fm

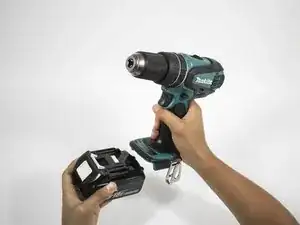

    • Slide the battery forward while pressing down on the white battery-release button.

  4. aeyBU6IOGICygSQ3
    aeyBU6IOGICygSQ3
    kmpWZZcHGWW6SehR

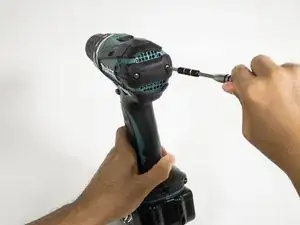

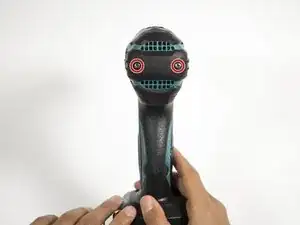

    • Hold the drill upright with the back panel facing you.

    • Unscrew the two 18 mm screws from the back panel using a Phillips PH2 screwdriver.

  5. N5LlvcjdjeuNxBkb

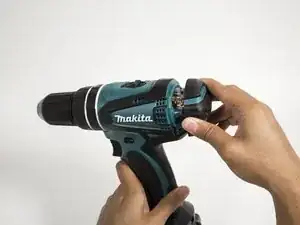

    • Apply slight pressure to the sides of the backplate and pull away from the drill.

  6. XDNtUUCtHct3HgjE
    XDNtUUCtHct3HgjE
    BFeqCQV5rN4VwFOO

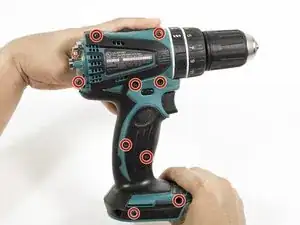

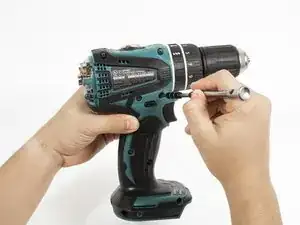

    • Unscrew the nine 18 mm screws from the outer casing using a Phillips PH2 screwdriver.

  7. kHdTWUhk5Mupxo1D
    kHdTWUhk5Mupxo1D
    wJ4HQJXDrhwDTbqG

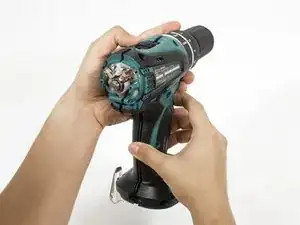

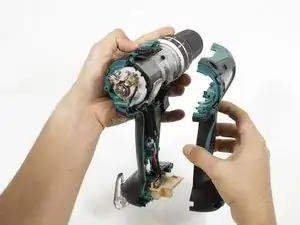

    • Apply slight pressure to the sides of the outer casing and pull away from the drill.

Abschluss

To reassemble your device, follow these instructions in reverse order.
