Mantis Tiller 7566 2017 Carburetor Assembly Replacement

Geschrieben von: Trevor A
  • Kommentare: 1
Mantis Tiller 7566 2017 Carburetor Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

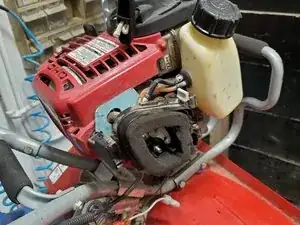

  1. Iabq14XNqLYb26Y5
    Iabq14XNqLYb26Y5
    MkKMkwSJDM3Gkejj

    • Remove air filter cover

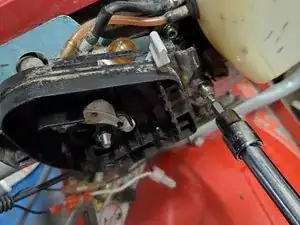

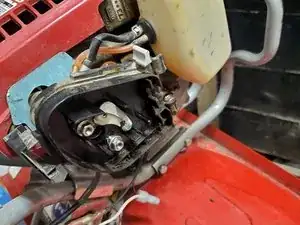

  2. IGrJjohAMneOUWAg
    IGrJjohAMneOUWAg
    ATNJarwojEZ6IDYp

    • Remove two 5/16 standard nuts under the air cover. Then remove the last two bolts pictured with a 5/32 Allen wrench. Note the order you remove the bolts the top is usually longer than the bottom

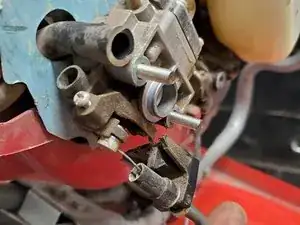

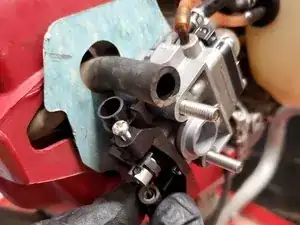

  3. L5Tyo2TCHwFaqXrL
    L5Tyo2TCHwFaqXrL
    eQ4y53jCLgheniJs

    • Remove old carburetor and install the new one. Remove the throttle cable and reinstall with needle nose pliers. Tighten throttle cable to carb

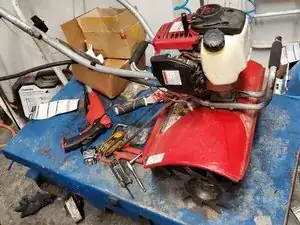

  4. B2CYPmBolWORMUTK

    • Reassemble and test throttle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
