Marco TA1 Gas Bottle Replacement

Schwierigkeitsgrad

Very easy

Schritte

10

Zeitaufwand

35 Sekunden

Einleitung

Spare bottles may be with different gases, according to your needs.

Flammable gas: LINK

Thetafluorethane: LINK

Environmentally safe: LINK

Ersatzteile

  1. wQEFiZTHTR4qVMAb

    • You need your TA1 handheld horn and a spare gas bottle to proceed.

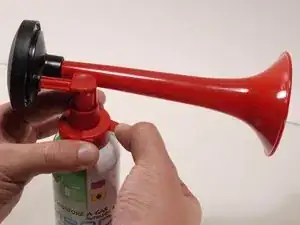

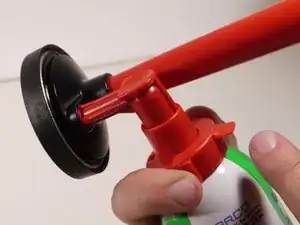

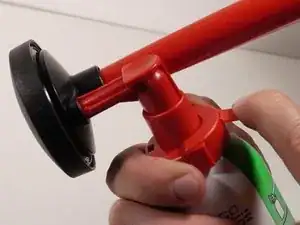

  2. BWPIqgSs4GNCVWXM
    BWPIqgSs4GNCVWXM
    OI2NA5dkxEJSEBEl
    r3jNRObo4svt5YXK

    • Press down the flap.

    • Be careful: if you press too much it may break.

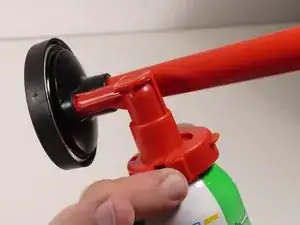

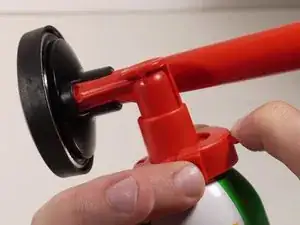

  3. eVXu4rasRXL4YEIy
    eVXu4rasRXL4YEIy
    wpV3GGE3XHBv1cjr
    thpJOWkKARSTlW6S

    • While pressing the flap, move the half-circle lock to free the trumpet from the tank.

  4. qGdVNBHVSJp5XDXG
    qGdVNBHVSJp5XDXG
    odmw5UdnH2v2P2IW

    • You don't need the empty tank anymore. Dispose it like required from your local laws.

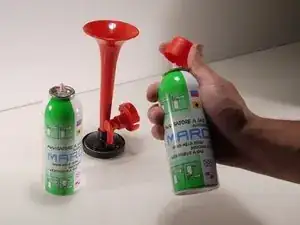

  5. L2bQXY6dwDVTtgW4

    • Take the new bottle and remove the cap.

  6. vjJQXqJHGlDuSUEa
    vjJQXqJHGlDuSUEa
    eTj4BREOmw3GB3BH

    • Open the lock on the trumpet.

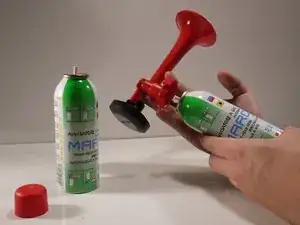

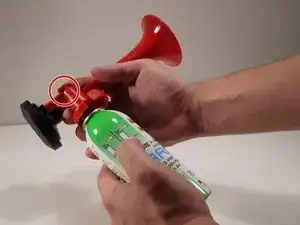

  7. lQMVENmD5fULNhlv
    lQMVENmD5fULNhlv
    pZRSRGUyMrWOBvnK

    • Put the trumpet on the bottle.

    • BE CAREFUL. Keep your fingers away from the trumpet and red circled moving parts: when the trumpet is on the gas bottle and you press it, it will honk!!

  8. TCwGwtMQMEHOaYV2
    TCwGwtMQMEHOaYV2
    11AtmZr43PHHUmGE

    • BE CAREFUL. The horn may honk if you press it too strong on the red marked part.

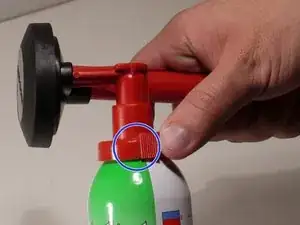

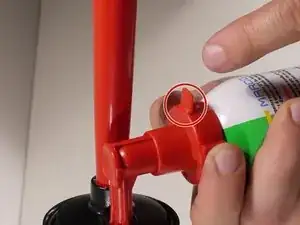

  9. DPpkEo2y6ZtDoauL
    DPpkEo2y6ZtDoauL
    Wyw4jQIFMHAdYx6a

    • The red circled lock has to be like in the picture, out and up. If it's still inside, the trumpet may disconnect.

    • The blue circled part should be like in the picture, with no space between the components.

  10. GSRyrvoD5Zfu6GUR

    • Your gas horn it's now up and running, ready to be used again!

Abschluss

There's no limit on the number of times you change the gas bottle.
