Marco UP Series Electric Pump Electronic Sensor Replacement

Geschrieben von: Marco Spa
  • Kommentare: 0
Marco UP Series Electric Pump Electronic Sensor Replacement

Schwierigkeitsgrad

Easy

Schritte

16

Zeitaufwand

10 Minuten

Einleitung

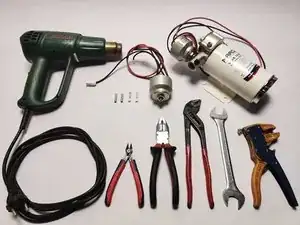

  1. K6rGiilnG1Tc2yZn

    • The additional sensor with the joint and the heat shrink tubing is available as a replacement kit on www.marco.it .

    • Kits are only available as a registered user, and can be seen for each pump in their dedicated tab on the page.

  2. rIQKkVtj2p5R4p1C

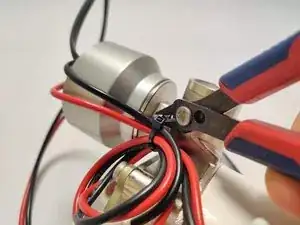

    • Free the cables by cutting the plastic tie.

    • Don't cut the cables that connect the sensor to the pump.

    • Dont' damage the cables' insulation while cutting the plastic tie.

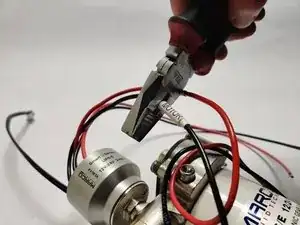

  3. ZVrZAPARBrUY6EtP
    ZVrZAPARBrUY6EtP
    nOhVxcRAgnwT5YXK

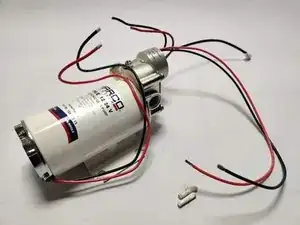

    • Use the pliers to cut the red and black cables before and after the joint.

  4. I4rgWTAImQUKXUGT
    I4rgWTAImQUKXUGT
    bAWCfxB4qeMrcJvN

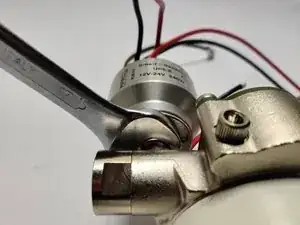

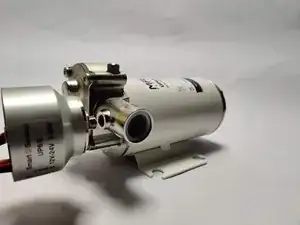

    • Use the 17mm wrench to unscrew the sensor.

  5. RafI4DNrBCE2yxvZ
    RafI4DNrBCE2yxvZ
    N4Y1IeqrGa2kY1Yr
    Gl2mKJlJPNfRZhHA

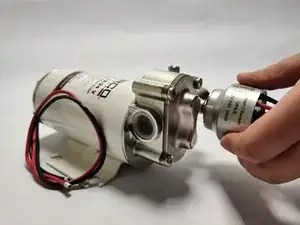

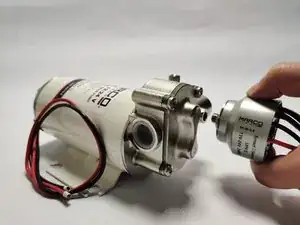

    • Screw the new sensor by hand for the initial part.

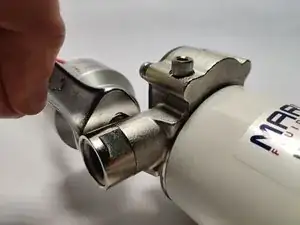

  6. Pe21RImO1kAFGkeo

    • Use the wrench to tighten it in place.

    • Don't over-tighten the screw!

    • Don't add PTFE tape on the screw: there's already an o-ring to seal the connection and it may cause problems to the non-return valve (check valve) underneath.

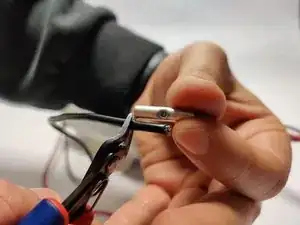

  7. jWArkVTsJSYN1x3C

    • Use the joint as a reference on how much you need to remove.

    • Keep in mind that you want to have as much wire inside as possible, but you want to avoid that the peeled wire exits the joint.

  8. Use the cutting plier or (if you have it) the stripping plier to remove the sheath.

    • Use the cutting plier or (if you have it) the stripping plier to remove the sheath.

    • Try to be careful: you don't want to cut the wires inside, especially on the larger pumps.

  9. VLqMWVnnVBPgYR42
    VLqMWVnnVBPgYR42
    wqSyQWnxLVSOCLiP
    NdLyPrcAHDUHjidx

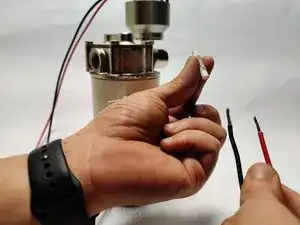

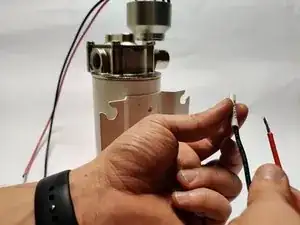

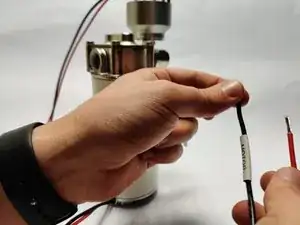

    • Insert the heat shink tubing on both motor's cables.

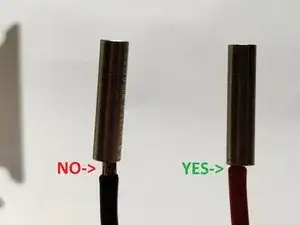

  10. QdOUS5UGMuMjihi5

    • The cable has to be totally inside the metal joint: if you have a longer peeled cable, cut it a little to have it aligned as in picture.

    • Don't insert the plastic sheath inside the metal joint: it worsens the connection and may cause overheating in the large pumps!

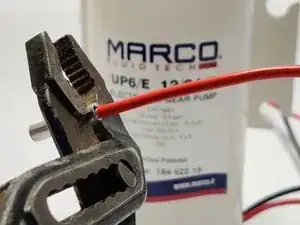

  11. UECSKcXTJj13NYws
    UECSKcXTJj13NYws
    IUoFyDoXZHmOUOFY
    gp1JMHgPSpnW5UEY

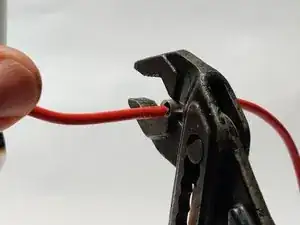

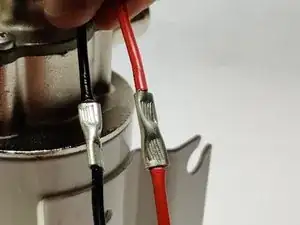

    • Start on the motor side, and press the metal joint on the cable.

    • To have a stronger force in closing the joint use the internal part of the plier, as showed in the picture.

    • Proceed with by inserting the other end, the short cable coming from the sensor.

    • Repeat the process also for the other cable.

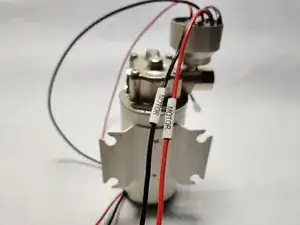

  12. GCcghdNXIO6OEF65
    GCcghdNXIO6OEF65
    CnmJ35r3XGNeLlVi
    ndHGbiPRFRaKTFFt

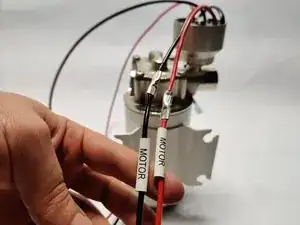

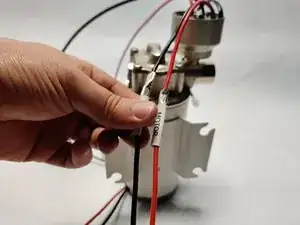

    • Insert the heat shrink tubing.

    • Make sure that it covers perfectly the joint (it must be centered!) on both ends .

  13. ZCyAPnFdbMlIHHVR
    ZCyAPnFdbMlIHHVR
    uEjTVrWMQ2BZK1TI

    • Heat the tubes until they shink on the joint evenly.

    • Don't heat too much: you may melt the cables.

    • If you don't have a heat gun, you may also use a lighter, but don't touch the plastic with the flame: keep some distance.

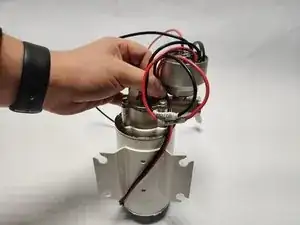

  14. oBiyf4BHB2xDB5LO
    oBiyf4BHB2xDB5LO
    ROkMweUGqbrslZgx
    aLZqZmHY1npp1MOq

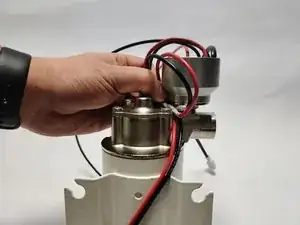

    • Loop the wires as shown in the pictures.

  15. kyWOmqfssTQTUhG2
    kyWOmqfssTQTUhG2
    TRvSnwc54t3OXcES
    rOr1o6vPbR1ZlPHU

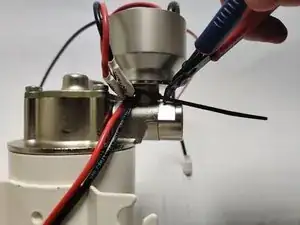

    • Fix the cables using the plastic strap.

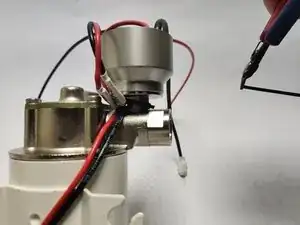

    • Cut the excess of the plastic strap using the cutting pliers.

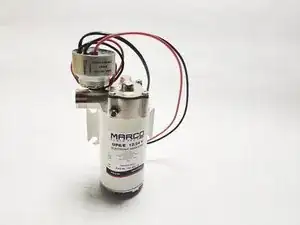

  16. PPAglIZbM41JLmDs

    • You can now enjoy your updated sensor!
