Marshall Emberton Battery Replacement

Geschrieben von: Asia Baldwin
  • Kommentare: 2
Marshall Emberton Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

The battery in the Marshall Emberton is responsible for giving power to the speaker and allowing it to turn on. With the help of this guide you will be able to locate the battery and changing the battery.

With an exhausted or degraded battery, battery life decreases significantly and repeated charging is required. Although the battery is located deep inside the speaker, it is very easy to replace.

  1. uSvLlaxGDtvXV5GZ

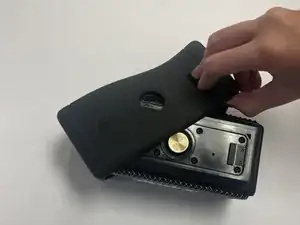

    • Remove the rubber casing from the speaker using your nails to peel the cover off.

  2. IsLQutYKW4fq4rom

    • Pry out both covers that are on the front and backside of the speaker to reveal the screws to get inside the speaker.

  3. QEvaHiDLK6w5aaYf
    QEvaHiDLK6w5aaYf
    xcg5UIY2ab5XcFkd

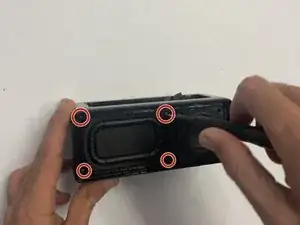

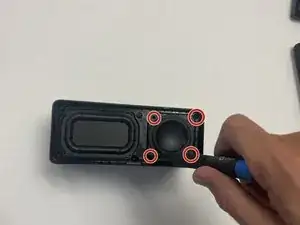

    • Use a TR9 screwdriver to remove the eight 1.2 cm screws.

    • Use a spudger or opening tool to pry out the speakers.

  4. agRre461bEMs4nr2

    • Use a TR9 screwdriver to remove the six 1 cm screws that secure the motherboard.

  5. bv4wJBPNA3SWgsDs
    bv4wJBPNA3SWgsDs
    skFDwFlN1udedsML

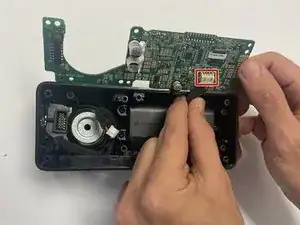

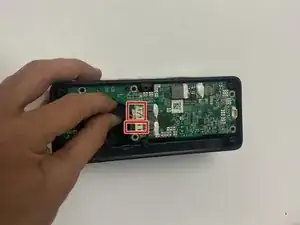

    • Disconnect the three wire connectors marked, by firmly tugging on the wire.

  6. quTTUbfcPeEYVogO

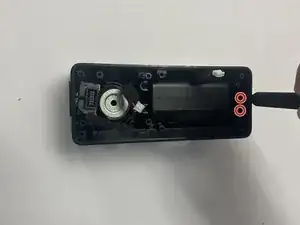

    • Use TR9 screwdriver to remove the final two 1.2 cm screws that secure the battery.

    you could either add text here or delete this final step and add the picture to Step 5

    Joseph Hernandez -

Abschluss

To reassemble your device, follow these instructions in reverse order.
