Marshall Emberton Main Speaker Replacement

Geschrieben von: Asia Baldwin
  • Kommentare: 5
Marshall Emberton Main Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

The Marshall Emberton has two main speakers which are on the front and backside of the speaker. These speakers produce quality bass and sound. Like any other speaker, the audio eventually loses it’s power.

With the help of this guide, you will be able to replace both main speakers. Replacing these speakers requires a TR-9 screwdriver.

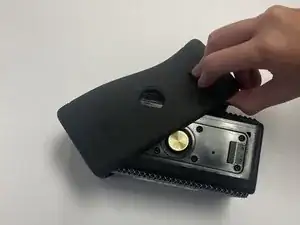

  1. IiTteOXMXnResmuV

    • Remove the rubber casing from the speaker by peeling it off using your nails.

    this suggestion is not for any of the steps but be sure to put in a suggested time, I would also suggest changing the difficulty from moderate to easy since this seems pretty easy compared to the other guides

    Joseph Hernandez -

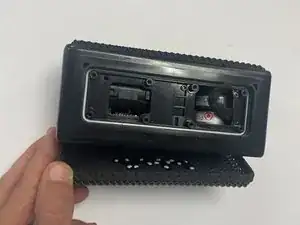

  2. lGECAK5FAjUtqaYT

    • Pry the front of the speaker that says "Marshall" in order to get inside the speaker.

  3. cMy6LESg6xmsURp3

    • Remove the eight 1.2 cm screws using a TR9 screwdriver.

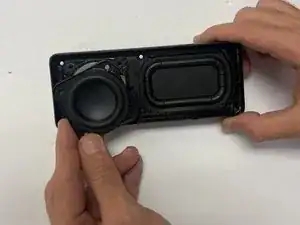

  4. uGkZbqjF1BFyC2k5

    • Now pop the speaker out and remove the entire piece.

    Don't you need to open up the motherboard in order to remove the speaker?? The speaker needs to attach to it.

    Frederick Jimenez -

    A few more pictures of different angles or how it looks like by itself would be helpful.

    Alejandro -

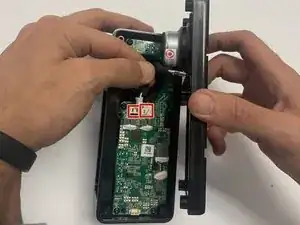

  5. xHrO1UjDR6rJHG4H

    • Now you must disconnect two wire connectors, by firmly tugging on the wires.

    • The new speakers can now be connected and put back together.

    Hi Where can I buy the replacement speaker please.

    pierre@woodteq.co.za

    Pierre Fourie -

Abschluss

To reassemble your device, follow these instructions in reverse order.
