This guide explains all the steps for taking apart the device, taking out the old auxiliary port from the device and soldering on a new one. This guide requires basic soldering knowledge and if done improperly may cause injury to the user. People with physical hand or wrist disabilities be cautioned that you may need to consider asking someone else to replace the part for you so you do not injure yourself.

  1. y6yfMd1c1yRf2iLT
    y6yfMd1c1yRf2iLT
    ThCGswi5dWj32LXs
    • Remove two of the three screws shown on the bottom of the device.

    • Begin removing the last screw, but leave it partially in the socket to remove the bottom cover easier.

  2. YNHAVwwY4RPM4TdZ
    YNHAVwwY4RPM4TdZ
    fSTywWfDiLNt3UVJ
    KFCtWqHoN6JkTBeb
    • Remove the bottom cover by either pulling on the screw or using a plastic opening tool to pry the cover off.

    • After removing the bottom cover, remove the two screws.

  3. ZLNRJi1bDlLIkdO5
    ZLNRJi1bDlLIkdO5
    EeKZUZEFNMsWCrqR
    UZ4V5Q4KQPtn1kLI
    • Use a spudger to release the small retaining clip that holds the feet to the bottom of the device.

    • Be careful here, as too much force can break the clip.

    • Remove the two screws from the back of the device.

  4. YSH5tKbutLRqBHYq
    YSH5tKbutLRqBHYq
    gxu5wlkW32Z3KI1L
    qFG4tUDPHZwSEygm
    • Using a plastic opening tool and your hand, separate the front and back covers from each other.

    • Starting from the bottom, use the plastic opening tool to create the initial separation and continue along the seam to the top of the device.

    • This step requires the most time and patience, so be careful.

    • The power switch will most likely come loose during this step and you will hear something rattling inside the device.

  5. 2wjn1F1TccDjGPw2
    2wjn1F1TccDjGPw2
    Q2tZDbLBXcMUKWST
    DVVJEi2XJWImqqnG
    • Remove the two arms from either side of the device once a significant separation has been created.

    • They are not fixed to the body itself so you should be able to wiggle them free.

    • Continue pulling the back cover off the device.

    • Remove the red cover for the on/off switch from the device.

  6. DlUXj2eYliEKglCp

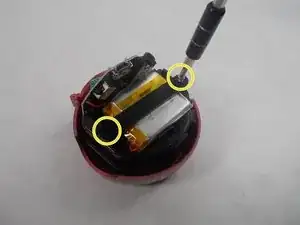

    • Remove the two screws shown to access the battery.

  7. sj1xo5MJfXG52GFd
    sj1xo5MJfXG52GFd
    4sXogIiKEwCJnllq

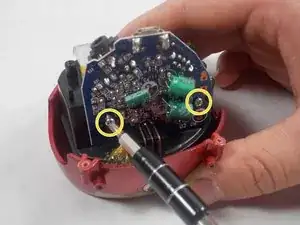

    • Remove the two screws shown to release the circuitboard.

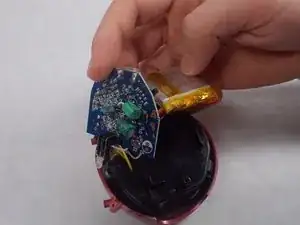

    • Gently remove both the battery and circuitboard.

    • They will be attached together by the battery's wires.

  8. 6BoULUOLdOrBatQO
    6BoULUOLdOrBatQO
    u3QGRxN1rSqRLYkX
    nUwvabiN1tL6QMDG

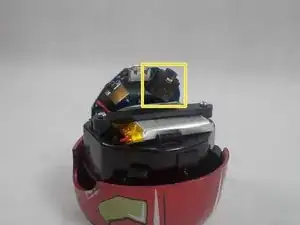

    • Locate the auxiliary port on the top side of the circuitboard.

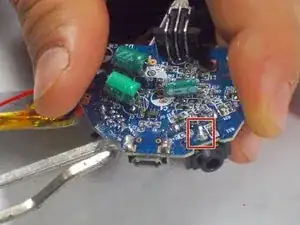

    • On the bottom of the circuitboard, locate the metal pin connecting the auxiliary port to the circuitboard.

    • Use the soldering iron to disconnect the pin.

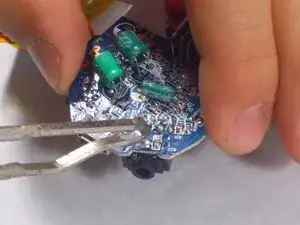

    • Use a pair of tweezers to remove the old auxiliary port.

    • Place the new auxiliary port in the same spot and solder the port to the circuitboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
