Einleitung
This guide will demonstrate how to access and replace the power switch cover of the Marvel iHome MR-M66.
-
-

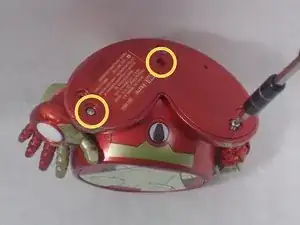

Remove two of the three screws shown on the bottom of the device.
-

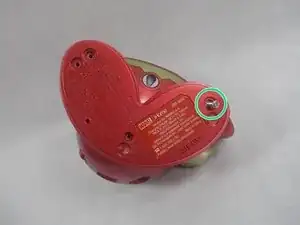

Begin removing the last screw, but leave it partially in the socket to remove the bottom cover easier.
-
-
-

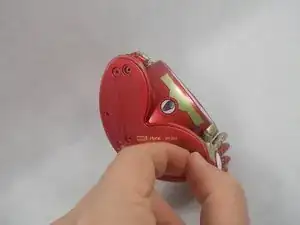

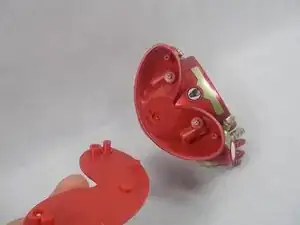

Remove the bottom cover by either pulling on the screw or using a plastic opening tool to pry the cover off.
-

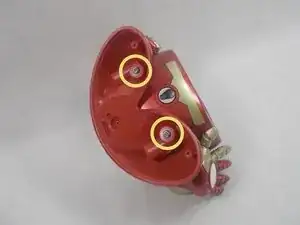

After removing the bottom cover, remove the two screws.
-
-
-

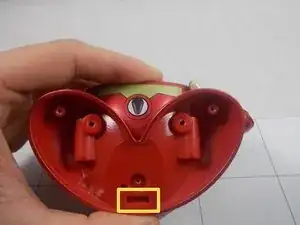

Use a spudger to release the small retaining clip that holds the feet to the bottom of the device.
-

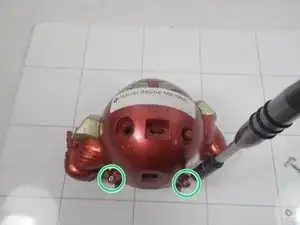

Remove the two screws from the back of the device.
-
-
-

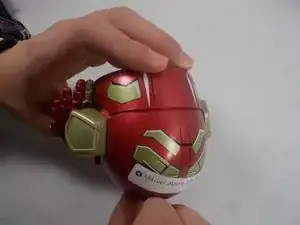

Using a plastic opening tool and your hand, separate the front and back covers from each other.
-

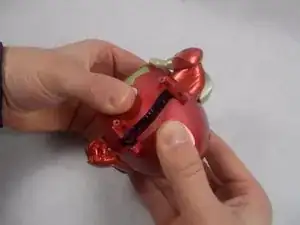

Starting from the bottom, use the plastic opening tool to create the initial separation and continue along the seam to the top of the device.
-
-
-

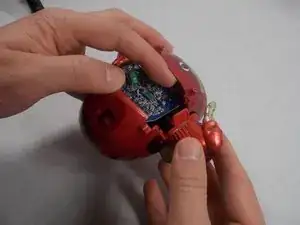

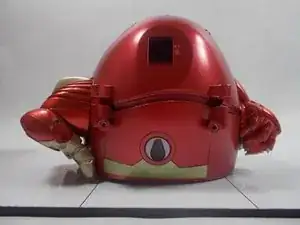

Remove the two arms from either side of the device once a significant separation has been created.
-

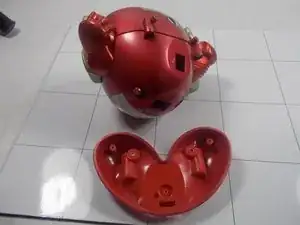

Continue pulling the back cover off the device.
-

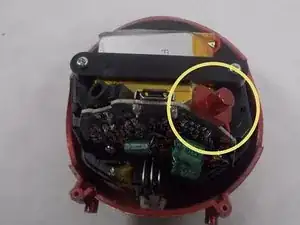

Remove the red cover for the on/off switch from the device.
-
To reassemble your device, follow these instructions in reverse order.
