Einleitung

If your MasterCraft Eliminator waterproof Spotlight is not working ,then use this guide to replace the battery of the spotlight .

With times, the battery gets weak as a reason it doesn’t work properly .But most of the people throw the spotlight thinking that it can not be change and buy new one. This guide will help people how easily the battery can be change with low cost and at the same time money can be save from not throwing the spotlight.

Before using this guide, inspect the spotlight is it has any other problems or not. Typically, if the spotlight body has dust then can be removed using brush or small dust blower .

  1. juXjxTK6POKrxdIY
    juXjxTK6POKrxdIY
    5AGWYXuuQZGuwjnx

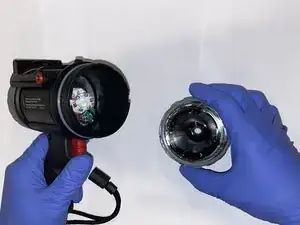

    • Twist the front cover of the spotlight in a counter-clockwise rotation and remove it from the device.

  2. 2DQRZcLK44TsCRkJ
    2DQRZcLK44TsCRkJ
    31YaAFBUhsbDRmaK

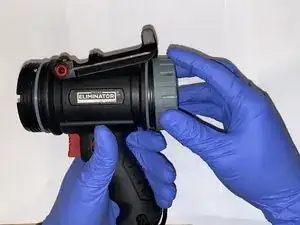

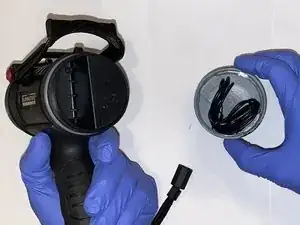

    • Remove the rear piece which is the protection cover for the charging port.

  3. jUvtyUHj12AJxEUb
    jUvtyUHj12AJxEUb
    AILc4xNmHxR3CnEI

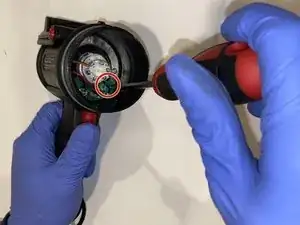

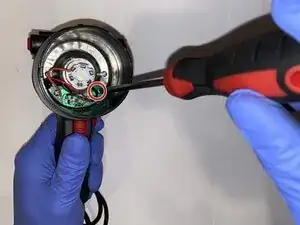

    • Using the JIS #00 screwdriver, remove the two screws securing the motherboard to the device.

  4. kiUFL5STEectKKqg
    kiUFL5STEectKKqg
    seHBKkb3BCeDpREd
    GxGhAIpWOkftInEI

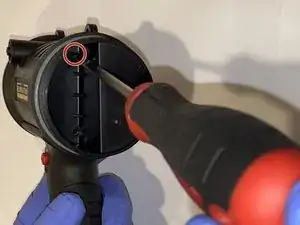

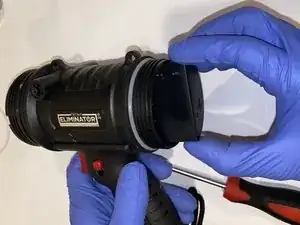

    • Using the JIS #00 screwdriver, remove the single screw securing the charging port and remove the charging port from the device.

  5. XqFkePBafhLk1QU2
    XqFkePBafhLk1QU2
    NOVxLWtGthQBlrpl
    G5TpKVQBAEV1Iugw

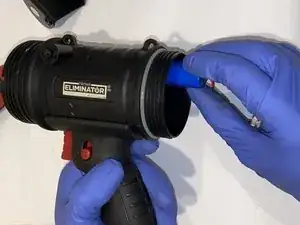

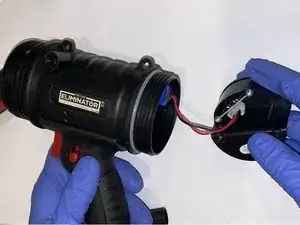

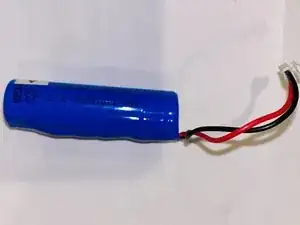

    • Carefully disconnect the battery and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
