Matsunichi M97 9 inch Screen Replacement

Geschrieben von: Cooper Norstrem
  • Kommentare: 0
Matsunichi M97 9 inch Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

15 - 20 Minuten

Einleitung

If the Display of your Matsunichi M97 9 inch has stopped working or is damaged, this guide will show you how to replace it step by step. This guide requires the removal of tape which may be difficult to replace. You will need to replace the Kapton tape with a new strip once it is removed.

  1. EFl3eeaPI2DUSBDx

    • Open the micro SD cover located on the back of the device.

  2. DWxSMI3WK4pYMs1H

    • Using the Phillips #00 screwdriver, remove the two 4mm screws next to the micro SD port.

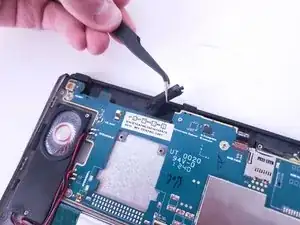

  3. bMWXEXKLeKAbJ6ea
    bMWXEXKLeKAbJ6ea
    irObTgNh6NNuqA2V
    bjlqon6aTAkvHvJK

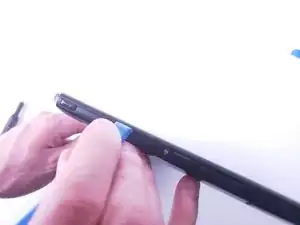

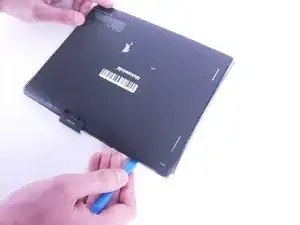

    • Use the iFixit opening tool to pry off the back cover of the device.

    • The volume buttons and the lock switch will come loose when the back comes off.

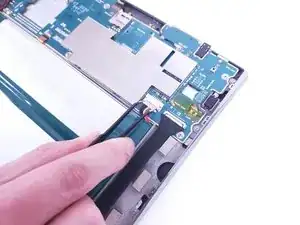

  4. iH2HHU26TMEe5FU2
    iH2HHU26TMEe5FU2
    kXpSMVuNHRJoYT4v

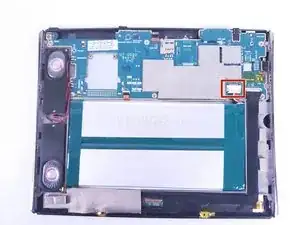

    • Use a pair of tweezers to disconnect the battery from the motherboard.

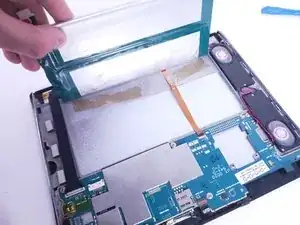

  5. H6KSqAn3PneL5dBM
    H6KSqAn3PneL5dBM
    ewLT6r3pZYbuupOq

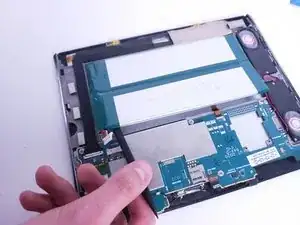

    • Carefully unstick the battery from the frame using the spudger.

    • Do not bend or puncture the battery during removal.

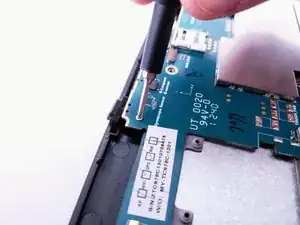

  6. LiWmMXi6WuhDIgZu
    LiWmMXi6WuhDIgZu
    gsAKMAPHpEhaxGVW

    • Remove the six 2mm screws that hold the motherboard onto the case using the Phillips #00 screwdriver.

    • Use the same screwdriver to remove the single 4mm screw.

  7. OZEXXYJU2hUxyEbv
    OZEXXYJU2hUxyEbv
    F6qO1f3PP4thVRXa

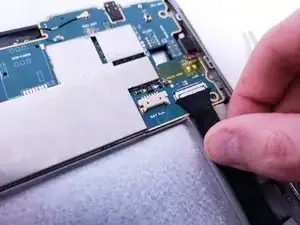

    • Gently pull the display ribbon cable to unplug it from the motherboard.

  8. DNZRUuLOmgiCVBl4

    • Use a spudger or an iFixit opening tool to lift the locking mechanism holding the camera ribbon cable.

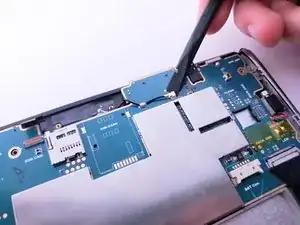

  9. NIs2w1XIQMVnjGWB
    NIs2w1XIQMVnjGWB
    qfyJDwftwJKFHAAq

    • Lift up on the wifi antenna cable to unsnap it from the motherboard.

    • Then unhook the cable from the holding bracket.

  10. YnlQemJDGpxLYMtg
    YnlQemJDGpxLYMtg
    mYAuuSdIW6mCfSWX

    • Use the spudger or iFixit opening tool to lift up on the locking mechanism for the digitizer ribbon cable.

    • Pull the cable from its connection.

  11. nUOGwqFtdFvk3cOq
    nUOGwqFtdFvk3cOq
    RRjYbDEuuEDtFXlD

    • Use the Phillips #00 screwdriver to remove the four 4mm screws that hold the speakers in place.

  12. QUoGv5XJa6DvWOhh

    • Pull the vibration motor out of its housing.

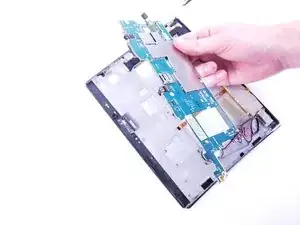

  13. i5XURt5p6D2ZUImJ
    i5XURt5p6D2ZUImJ
    LRP2LFVLLkNng3AH

    • Lift the motherboard off the frame.

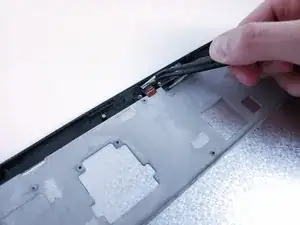

  14. 3Y6QZfXgQcOba35U
    3Y6QZfXgQcOba35U
    2fLBhfg3OXPlYGfa

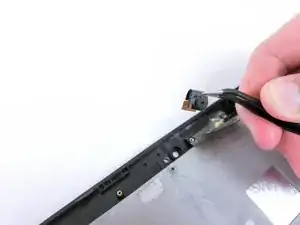

    • Remove the camera from the device.

  15. moSo1ZfLTYb1EnhG
    moSo1ZfLTYb1EnhG
    IGrALWsYZcBvTpyR
    vJq5EiVkGJmOynTo

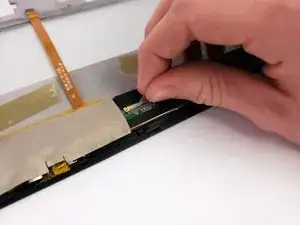

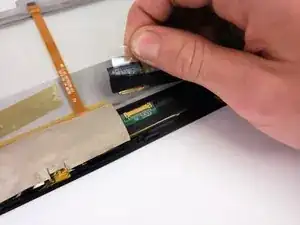

    • Peel off the black and the clear tape covering the display cable connection.

    • Pull the display cable to disconnect it from the display.

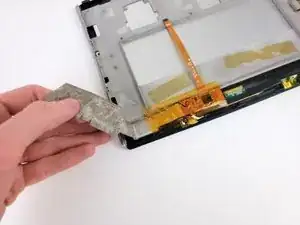

  16. FcZkkvnrlw1oEHGJ
    FcZkkvnrlw1oEHGJ
    s4YC5JhOUyFOxcrw

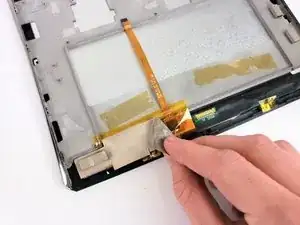

    • Peel off the conductive tape covering the display board.

  17. E6BrMAsbVPXQiwnn
    E6BrMAsbVPXQiwnn
    YfLAI2ewThI4OcbF

    • Peel off the Kapton thermal tape from the display board.

  18. oqIEAVNWwYQGl21H
    oqIEAVNWwYQGl21H
    lKSR1FIosHCQeEiW

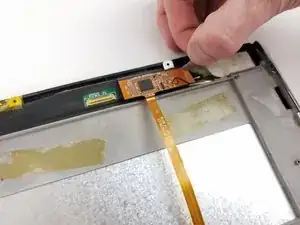

    • Peel off the grounding tape attached to the display board.

  19. SWBC6Wqu3UPWEv4M
    SWBC6Wqu3UPWEv4M
    RU5KHXXwWiPgaW2G

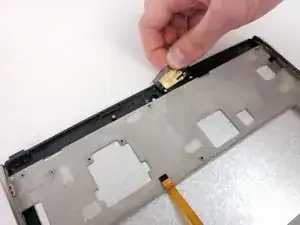

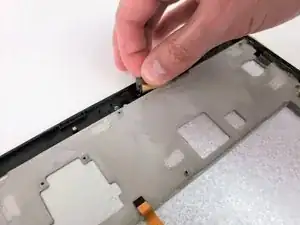

    • Peel off the black tape near the wifi antenna from the frame.

    • Do not pull the tape completely off to avoid damage to the wifi antenna.

  20. FJHRafZpCmtpSNq6
    FJHRafZpCmtpSNq6
    fXMAHyGgcsFpZm42

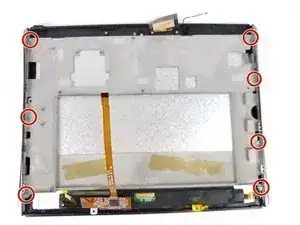

    • Using the Phillips #00 screwdriver, unscrew the seven 4mm screws holding the frame to the front glass.

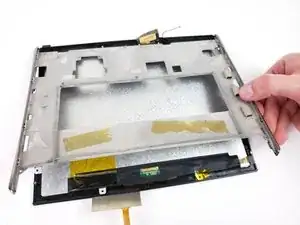

    • Gently lift the frame off the LCD panel

  21. C63VW5JDfOslZ5Vv

    • Lift up the LCD panel from the glass digitizer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
