Einleitung

  1. OiFTaG6Q3ZMjoSiI

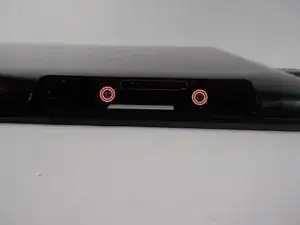

    • Remove the two screws using a Phillips #00 screwdriver.

  2. F5q3dXfAoUOjtnjR
    F5q3dXfAoUOjtnjR
    3SIDoktd5xFgiFCr
    eYBDANYSHxwhnEKO

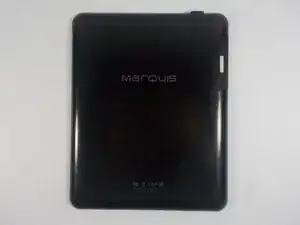

    • Place the device face down on a flat surface.

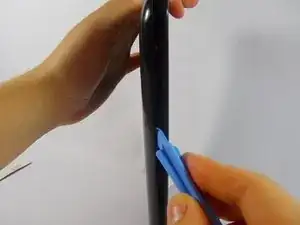

    • Insert one of the wide-tipped, plastic opening tools into the top of the left speaker slot.

    • Be sure to avoid puncturing the covering of the speaker.

    • Pry the back plate open and slide the tool in a clockwise direction, moving it along the opening between the device and its back plate until you reach the power button.

  3. 1nfPRWLbaVyTaevS
    1nfPRWLbaVyTaevS
    w6M1ie46RMfMdAMZ

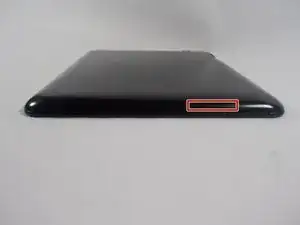

    • Insert the opening tool into the right speaker slot.

    • Pry open the back plate, and slide the tool counterclockwise along the device until you reach the charging port.

  4. RJDlOJiqJkYPResp
    • Remove the back plate and place it to the side.

  5. jdQruTBNhGrl2BiH
    jdQruTBNhGrl2BiH
    LDuNxBdRfFZ4tWYK
    • Detach the battery from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
