MaxWest TAB-7360DC Screen Replacement

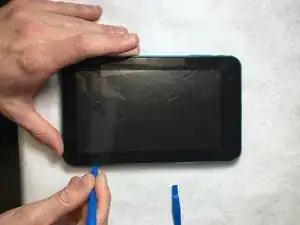

Insert plastic opening tool at the corner of the screen, in between the back case and the front.

Volume buttons will fall out during removal.

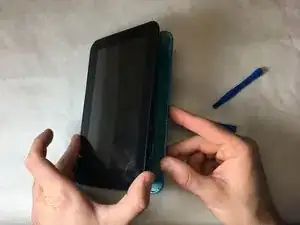

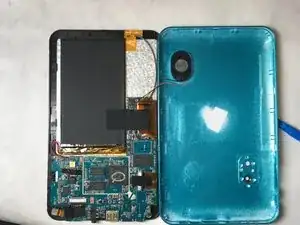

When opening up the case, have the I/O ports facing you and turn the back case towards the right. There is a short wire connecting the speaker to the logic board.

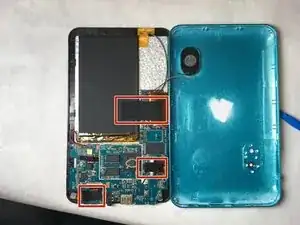

Carefully pry the tape from the battery, the bottom left chip, and the ribbon cable towards the bottom-right of the board. The bottom left has a little silver square component that must also be unclipped and untaped.

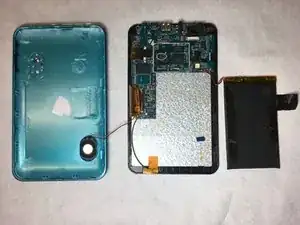

The battery is glued to the back of the screen; therefore pull the battery off of the back with caution. There will be resistance but that's okay.

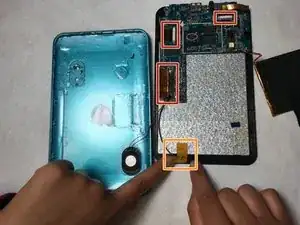

Gently unclip the data cable retainers and remove the wires from the junctions.

Peel the tape off the wire near the bottom of the case.

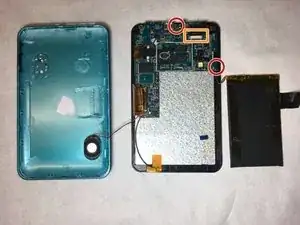

Remove the two 4mm screws (circled in orange) with a 00 Phillips head driver.

Unclip the black plastic retainer near the data port. The PCB should now be able to be gently pulled off.

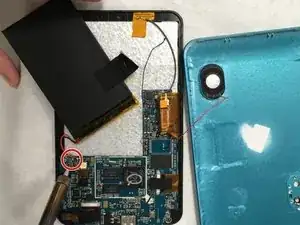

Make contact with the battery terminals with the hot tip of the soldering iron for a few seconds while slowly pulling the wire away.

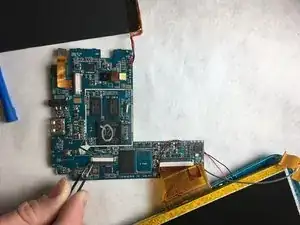

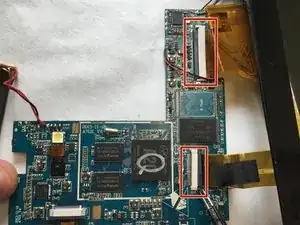

With the tweezers, grab onto the gray part of the ribbon clamps and pull away from the ribbons.

Once the ribbons are unclamped, they are able to slide out.

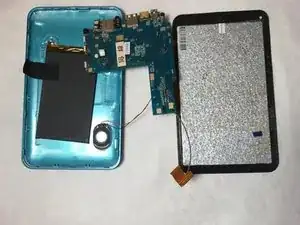

Pick up the motherboard and carefully place adjacent to the battery.

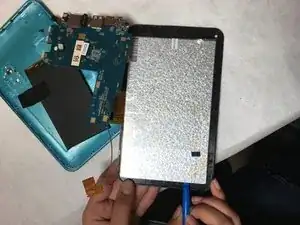

Use plastic prying tool to lift the metallic surface upward. ( It doesn't matter where)

Make sure to work the prying tool around the entire screen edge. Lift screen when completely loose.

Remove screen and place to the side.
