Maylong MN-1000P Keyboard Replacement

Place the netbook top down, with the opening of the netbook facing you.

Remove the six 6mm Phillips #00 screws from the netbook.

Remove the sticker in the middle of the netbook.

Remove the middle 6mm Phillips #00 screw.

Using two plastic opening tools, pry off the bottom of the netbook by going around the edges.

Remove the bottom of the netbook by lifting the corners.

Pinch the red and black wires connected to the section closest to the small white connector, and pull to remove them from the motherboard.

Remove the six 6mm Phillips #00 screws from both sides of the netbook.

Pull the top of the computer and the back side of the computer away from each other until they are detached.

Flip the entire computer over so you can see both the screen and keyboard.

Remove all the black circular pads from around the screen.

Remove all 6mm Phillips #00 screws from around the screen bezel.

Using a plastic opening tool, pry off the screen bezel.

After detaching the screen bezel, pull up on the bezel near the hinge area.

Use tweezers to gently pull on the black and white wires at the top of the netbook until the white connector detaches.

Use your fingers to pull on the green, red, black, and white intertwined wires at the bottom of the netbook until the white connector detaches.

Detach the wide yellow ribbon cable connected to the screen from the computer.

Flip the computer over.

Disconnect the red, green, black, and white intertwined wires from the connector to the motherboard.

Remove the black tape holding down the red, green, black, and white intertwined wires.

Remove the screen.

Remove the six 6mm Phillips #00 screws from the motherboard.

Remove the two 6mm silver screws from the small circuit board connected to the motherboard by the red and black wires.

Remove the two small black speakers on the corners connected to the motherboard by the black and red wires.

Disconnect the black connectors from the motherboard by pulling on the white ribbon cable.

Remove the black covered wire connected to the motherboard by pulling the white ribbon cable away from the motherboard.

Using a spudger, remove the gold cylinder out of the indent at the bottom of the computer.

Lift the motherboard up.

Remove the motherboard by detaching the clear tape from underneath the motherboard.

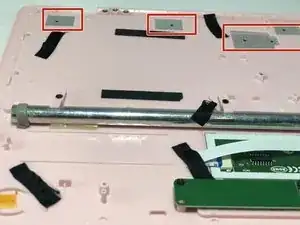

Hold the keyboard panel with the back facing you.

Using your thumbs, push on the silver squares.

Flip the netbook over so the keyboard is facing upwards.

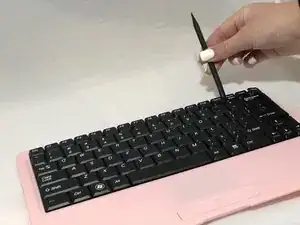

Insert a spudger between the keyboard and the top of the plate.

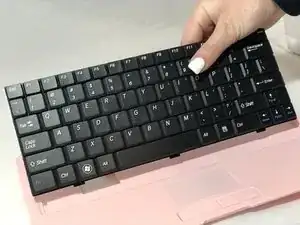

Lift the keyboard up and away from the mouse pad to remove.
