Medtronic 670G Battery Replacement

Geschrieben von: Valerie Velez
  • Kommentare: 0
Medtronic 670G Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 Minuten

Einleitung

This guide demonstrates how to easily replace the battery in a Medtronic 670G Insulin Pump. Replacing the battery of this device is important so that that the device can regulate your insulin and blood sugar as needed. It is crucial for the user to keep track of their health needs. I hope that with this guide will help you on the maintenance of your device.

  1. qBqiu1TKCiaKWJxI
    qBqiu1TKCiaKWJxI

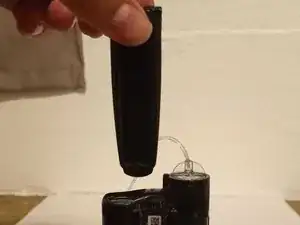

    SrIHPktkgAI1BL5f

    • Detach the clip on the back of the device.

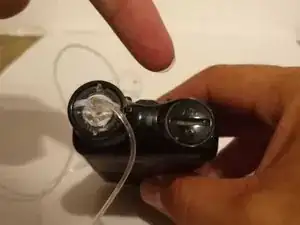

  2. lEfEQCGOyIaIWanm
    lEfEQCGOyIaIWanm
    IFk2EitdQm2MRbNs

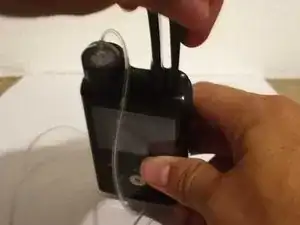

    ZrMomRTIIMQhRJkI

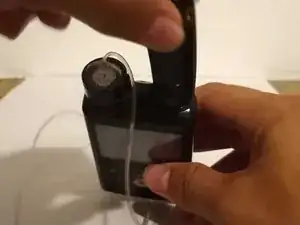

    • Place the small protrusion on the bottom of the clip into the slot on top of the battery housing, and turn it counter clockwise.

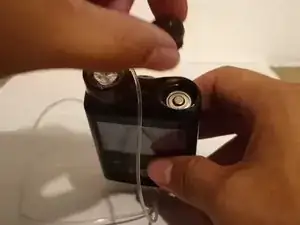

  3. cCp6yqrwxtgqdoId
    cCp6yqrwxtgqdoId

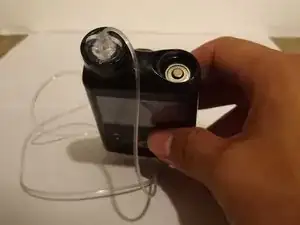

    weyKTYHJIIJhUrkT
    qUnpDSkKdM5Xmoav

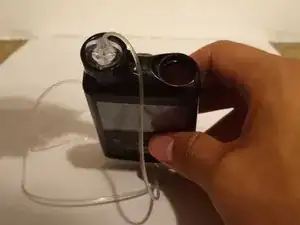

    • Remove the battery cap.

    • Dispose of the old battery according to your state guidelines.

  4. NcTZVCf6DZIuM5FL
    NcTZVCf6DZIuM5FL

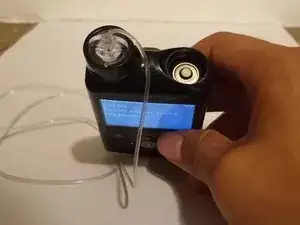

    QDhnG1Ho1aYJRvoQ

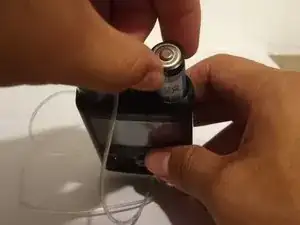

    • Insert the new battery, making sure the negative end (the flat part of the battery) is facing down.

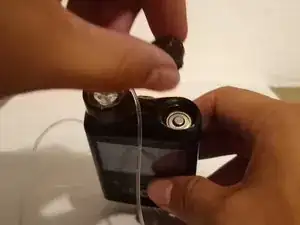

  5. jFRUvDtpKbxYlZlO
    jFRUvDtpKbxYlZlO

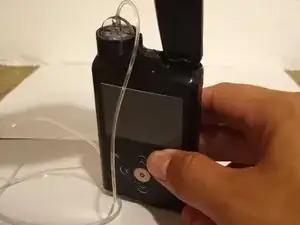

    FkICZAyTxefLKN3D
    YiWCyaxgSqfn2gS2

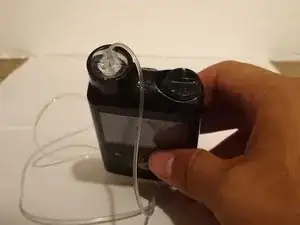

    • Replace the battery cap tighten until it is aligned.

    • Do not over-tighten the cap as it will make it extremely difficult to unscrew next time.

  6. Sj6JaLl2YUDiJjFn

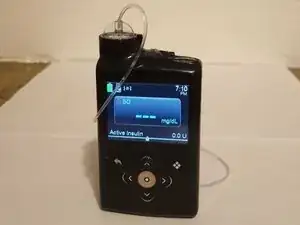

    • Turn on the pump and wait until the HOME screen load to make sure the battery is working.

Abschluss

Your Medtronic 670G insulin pump is good-to-go!
