Memorex CD Alarm Clock Radio CD Lid Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 40 Minuten

Einleitung

If the lid spring on your Memorex CD Alarm Clock breaks, this guide will show you how to replace it.

  1. i6DdRBCs6L1nLYaC
    i6DdRBCs6L1nLYaC
    HmbFdNFQDqVP4DEG
    aAbVZ2vKevKIU6gH

    • Locate the 'OPEN' tab on the battery compartment.

    • Pull the tab upwards and remove the cover using your finger.

    • Remove the batteries.

  2. KavJLYJyjxCNm1Ri
    KavJLYJyjxCNm1Ri
    RxWVewsZIJjiQsad
    JKEsjqjDJhPQOgTX

    • Locate the screws on the bottom of the device that hold the upper and lower halves together.

    • Remove the (5) 19mm screws.

    • Grasp the top and bottom and gently pull apart.

    “deolder” -- you mean “desolder”

    Sandy Lowe -

  3. DYbLiJ1LEeosOoOb
    DYbLiJ1LEeosOoOb
    mnLFguEXVQY2IgcB

    • Remove screw with plastic retaining plastic piece.

  4. uyUZ11dTU6OPY6Yg
    uyUZ11dTU6OPY6Yg
    Ue4oiYUX6sUPkjhd
    PpVVZIYFiLEZ1kIV

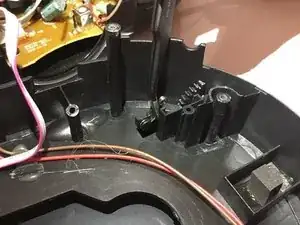

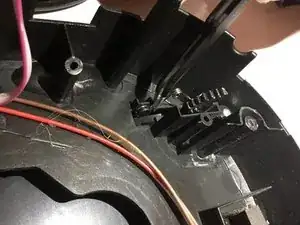

    • Grasp and remove the spring using fine tip tweezers.

    • The spring is very small and can be lost easily.

  5. UANVxSUlLhrmXCGj
    UANVxSUlLhrmXCGj
    DATWC2xPm4D6oEvd

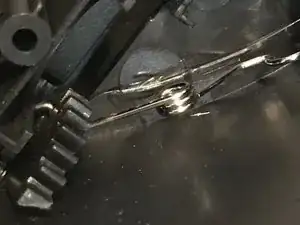

    • Remove the spring with a flat tip screwdriver.

Abschluss

To reassemble your device, follow these instructions in reverse order.
