Einleitung
Removing the PCB board requires a Phillips #1 screwdriver with at least a 15 cm shaft and a set of tweezers. Make sure there are no batteries in the device and that it is not plugged in before starting the procedure.
Werkzeuge
-
-
Locate the 'OPEN' tab on the battery compartment.
-
Pull the tab upwards and remove the cover using your finger.
-
Remove the batteries.
-
-
-

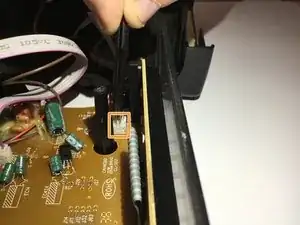

Locate the screws on the bottom of the device that hold the upper and lower halves together.
-
Remove the (5) 19mm screws.
-

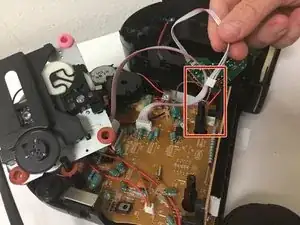

Grasp the top and bottom and gently pull apart.
-
-
-

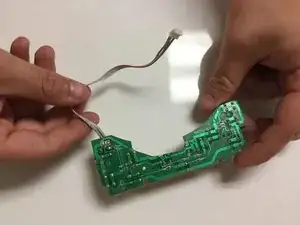

Remove the PCB board from the device.
-
Replace the broken motherboard with a new PCB board.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
