Memory

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

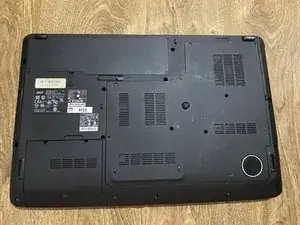

  1. ePGUGVEkyoyPZ6NP

    • Before proceeding, power down your Laptop and remove the power cable.

    • Close the display and lay it on a flat surface, top-side down.

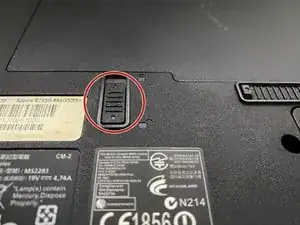

  2. fMSuCnJImCxpVRsl

    • Unlock the battery by sliding the battery lock to the unlock part.

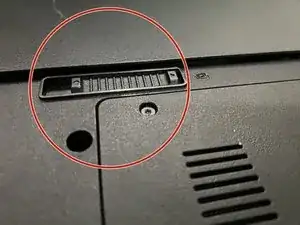

  3. Hehci1DyQecOxWJH

    • Slide the middle lock to the right and the battery will pop up.

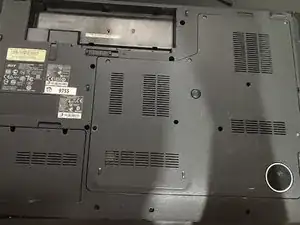

  4. WKxtfNGbag3PbMe3

    • If you want to replace the battery and nothing else then now is the time to do so.

    • Once the battery hatch unlocked you can now safely remove the battery.

  5. ZVI1vgeatoJOWEnu

    • Use a Philips J1 driver to remove eight screws securing the bottom case.

    • Remove all of the 8 screws. After that you are in.

  6. WwheJMwl1Ir1OK5f

    • Now try to spot the Memory, which is here indistinguishable as a red circle.

  7. sI6kEdacNxnd5D6r

    • Don't remove the ram before pushing the pins.

    • After the previous step, remove the ram by pushing the pins holding it outwards.

  8. OimalV1FRtIhVKsB

    • If you need to change your memory and nothing else then now is the time to do so.

    • After that the pins jump up and you can carefully remove the ram.

Abschluss

To reassemble your device, follow these instructions in reverse order.
