Here is a step-by-step guide on how to disassemble and troubleshoot a faulty Mercedes w114/115 clock.

  1. MLeKMNtDXfC1WvTM
    MLeKMNtDXfC1WvTM
    3SBlE5j2yWf1CYRC
    • Locate the area that houses the clock. Unscrew the two barrels and place it aside.

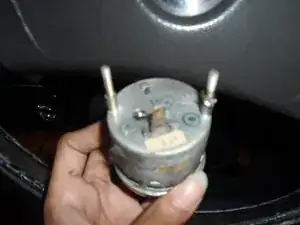

    • Carefully pull out the clock without damaging any other parts.

  2. cAuphVK4UbFSABNE
    cAuphVK4UbFSABNE
    dCKO4VDZh1JOgga5
    ktmdYhfYKJaxdgmY

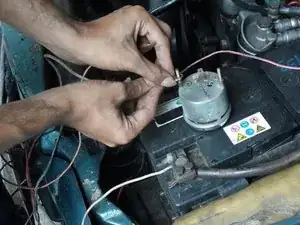

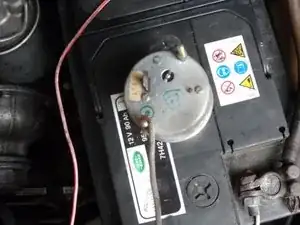

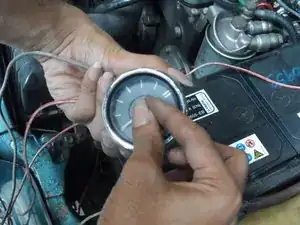

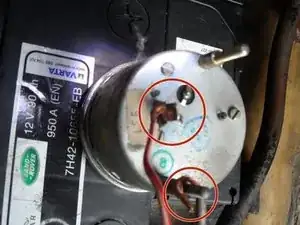

    • Connect the screw (located behind the clock) to the negative supply of the battery, and then the small pin to the positive supply.

  3. jPgL6EnACeJ16euh
    jPgL6EnACeJ16euh
    bEGNfPr1NyVKWHKF
    yKBnX3g6S2XQhrIG

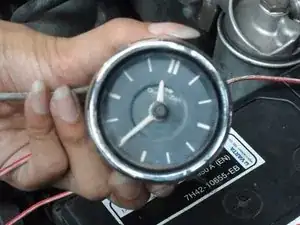

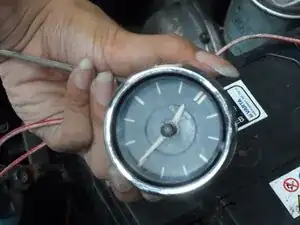

    • To check the clock, set the time to something you can remember and set it aside.

  4. gra6eWWSMAWWCd2T
    gra6eWWSMAWWCd2T
    PpnxACXhKReVLGWL
    wNUyS2RG2oKs6o1j

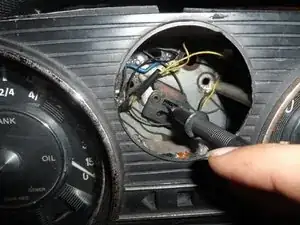

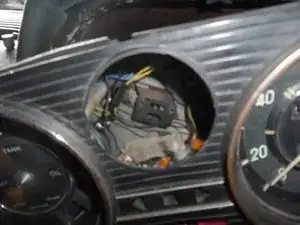

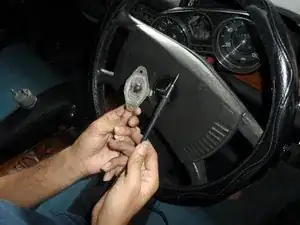

    • To check the power supply of the clock, locate the electrical connector and find the pin on it which supplies the power (12v) to the clock.

    • Take a small bulb and socket and bridge a wire from the 12v pin supplied from the electrical connector, to one of the two wires on the bulb and socket.

    • Next find a ground supply nearby ( the best place would be the key hole) and bridge another wire from it to the second available wire on the bulb and socket.

    • If the bulb lights up, it means your clock has power.

  5. 3XEbDnFZ2SCtuLKk
    3XEbDnFZ2SCtuLKk
    eL1HWv3iZRqMvmNN

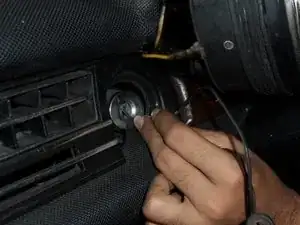

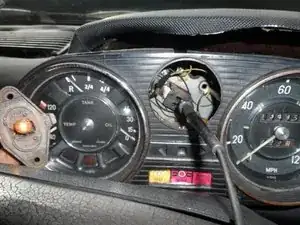

    • If the bulb lights up, the power supply to the clock is good.

  6. cIHW3XEDbAX6TDHH

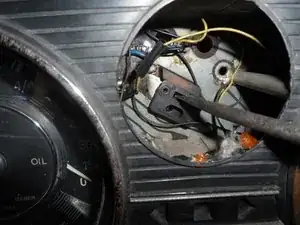

    • Before putting the clock in, clean the holder with a sand paper or a flat headed screw driver.

    • Start reassembling the dashboard by following the guide in reverse order.

    • While reassembling, be careful not to damage the wire harness , oil pressure meter hose, and temperature meter cable.
