Mercedes W115 Headlamp Bulb Replacement

Geschrieben von: Chaga Edirisinghe
  • Kommentare: 0
Mercedes W115 Headlamp Bulb Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

It's a very common issue that newer vehicles' headlamps are brighter than the old timers'. This guide will help you update your bulb.

  1. 6ZNvYEKE2OHmtai1
    6ZNvYEKE2OHmtai1
    FBCcHY1uyZYYFHjP
    vJJBCyYrC6HTwMUK

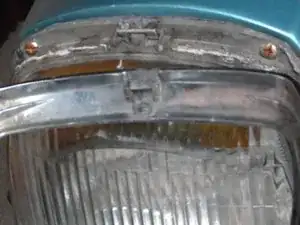

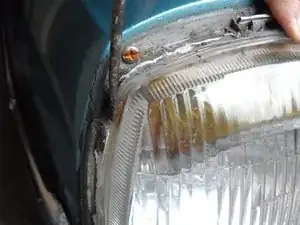

    • Locate the bottom screw which holds the metal frame around the lamp and unscrew it. Because there are no other screws to hold it, gently lift the frame upwards to unlock the pin on the top.

    • Be very careful when unhooking the four small metal clips because they can easily break (if you break more than two clips, the front glass will become loose and water could enter and fade the inner surface of the lamp). After removing the glass carefully, place it aside and remember to clean all of the surfaces before reassembling.

  2. KwVDa4FoCYZThMqb
    KwVDa4FoCYZThMqb
    wuwGTDT3RQgdosVK
    yTOmFeeKaDJfKMFK

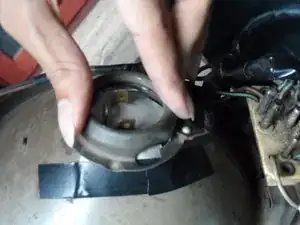

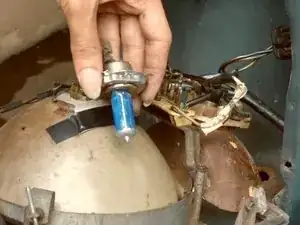

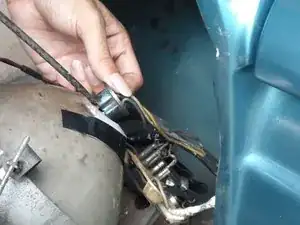

    • Carefully unplug the headlamp socket, and then rotate the metal ring, which holds the bulb to the body. Then, pull the bulb out slowly.

  3. y2Om4KL3VAQJHwF2
    y2Om4KL3VAQJHwF2
    QSHar3TXGNi1w6KY
    pRG5E3F5mUqd3fCM

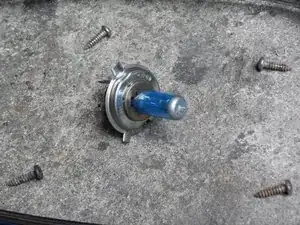

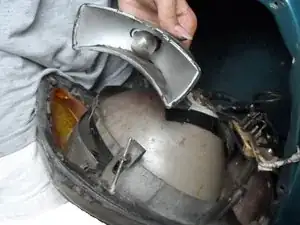

    • Remove the old/blown bulb and replace with a new one.

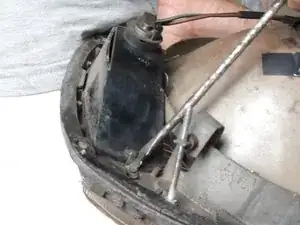

    • You can also replace the signal lamp at the same time by simply unlocking the small clips by rotating them with a screwdriver. Be careful as you handle these clips because breaking one clip will cause your signal lamp to become loose and out of position.

  4. Ad6R6uZFQOr1dsZm
    Ad6R6uZFQOr1dsZm
    ExFhgqQG1eLmGPwh
    lyNZDjF6xGXQyJdY

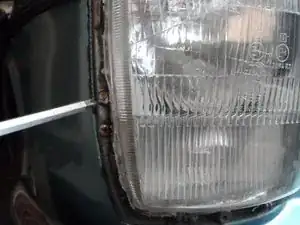

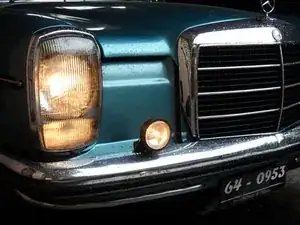

    • After replacing the new bulb, follow the reverse order of disassembly. Before you fix the metal frame, align your headlamp beam.

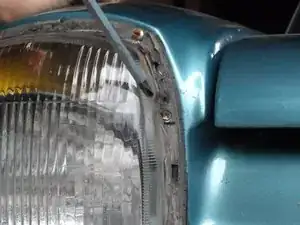

    • To do so, locate the screws on the headlamp cover body, which are covered with a plastic frame. The outer-side screw aligns the fog lamp and the inner-side screw aligns the headlamp. Start your car, turn on the fog lamps, and align them; then, turn off the fog lamps and align the headlamps.

    • It's essential to have a 20m distance ahead to adjust the light beams. Keep your car running so that it will not drain your battery if the engine is not functioning.

Abschluss

To reassemble your device, follow these instructions in reverse order.
