Merch Source Projector Entertainment II Outer Lens Replacement

Geschrieben von: Stephanie
  • Kommentare: 0
Merch Source Projector Entertainment II Outer Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Do you have a blurry image or a broken outer lens? Follow these step by step instructions to learn how to disassemble the projector and remove the outer lens for your repairs.

  1. htRVusYYZ33RvRZy
    htRVusYYZ33RvRZy
    S4Aya21WutNAgIHW

    • Flip the projector onto its back and unscrew the nine 15mm screws using the Phillips #0 screw driver.

  2. AXCDhLDCAFxZhuIK

    • Flip the projector right side up and unscrew the two 12mm screws on the light bulb panel located at the rear of the projector with a Phillips #0 screw head.

    • The bottom right panel screw does not come completely out the panel door.

  3. ERl1a2hs2MKOdQ3D
    ERl1a2hs2MKOdQ3D
    sZ2OrjGBbI1FKAtp

    • Using your hands, gently pry the top and bottom of the projector casing apart.

  4. OxQBGRZuBj5IAuZp
    OxQBGRZuBj5IAuZp
    PElEU6l1PR3HRpOt

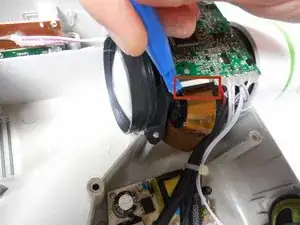

    • Use the plastic opening tool to gently disengage the black clip housing from the ribbon cable.

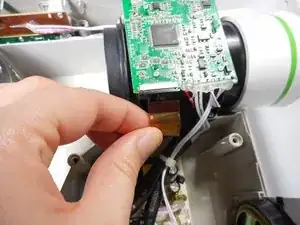

    • Once the ribbon cable is disengaged gently pull the cable off the motherboard.

    • Once the housing is disengaged, the ribbon cable should slide out easily. Do not pull too hard on the ribbon cable as it is very fragile.

  5. lotHA4R5ysKvARDf
    lotHA4R5ysKvARDf
    4fRBpCTlvOWMRVEq
    1oOLGMuvUxtxxLIu

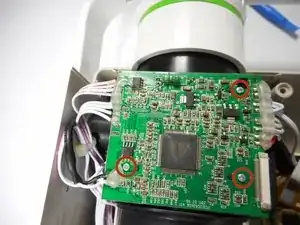

    • Unscrew the three 7 mm screws from the motherboard with the Phillips #0 screw driver.

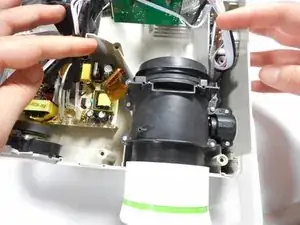

    • Once loose, lift the motherboard off of the lens casing, and move it away from the workspace.

    • Be sure not to damage any of the wires atached to the motherboard.

  6. UY3npKXGMR1XINHL
    UY3npKXGMR1XINHL
    TqrmjISOGBQkduIS
    VViZLhxsBZRDbhgS

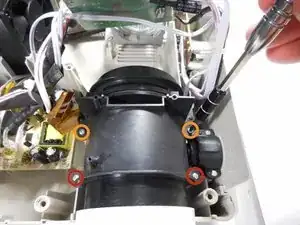

    • Unscrew the four 15mm Phillips screws using the Phillips #0 screw driver.

    • Unscrew the two 12mm Phillips screws using the Phillips #0 screw driver.

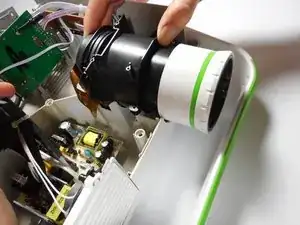

    • Gently remove the entire lens casing from it's position.

  7. 35NBNDQUrePUfpNp
    35NBNDQUrePUfpNp
    WYIICYG1OmttVOej
    bNb6fvMF66mVcLfw

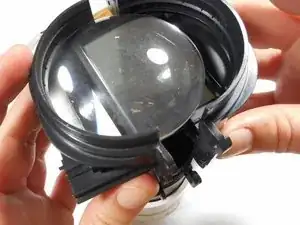

    • Using the plastic opening tool, slightly separate the casing holding the large lens in place.

    • Separate the casing completely from the inner lens using your hands.

    • This should release the outer lens and it's immediate casing.

    • As you separate the outer casing, the lens and digital display box may fall out of their encasement.

    • Although there are threads connecting the outer lens casing and the inner lens casing, do not be fooled. The outer lens casing cannot be disconnected by unscrewing it.

  8. VUFwSOPEpAXcYjmf
    VUFwSOPEpAXcYjmf
    yfxVFZMNFPZRRX2P
    1VKFQOSMmKa5TPkN

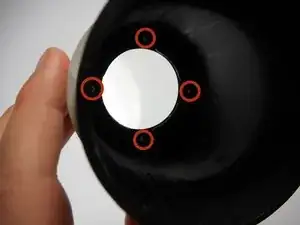

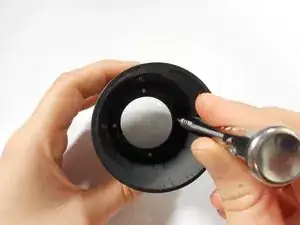

    • Unscrew the four 8mm Phillips screws at the base of the outer lens casing using the Phillips #0 screw driver.

    • Separate the white outer casing from the black outer casing.

  9. BX1LPfNNYQke1xod
    BX1LPfNNYQke1xod
    EwpkkEZFRhuKkOlf

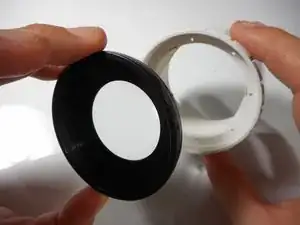

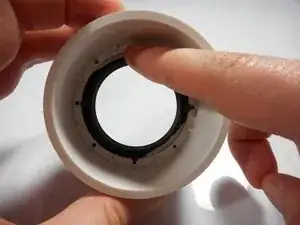

    • Using your finger, gently push the lens out of its white encasement.

    • The outer lens is now free and ready for replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
