This repair guide will show you how to replace the metal contact points within the battery compartment of the remote controller for the MerchSource the Black Series Boat Racers device.

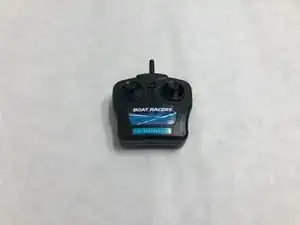

  1. v5JlrrqIudo11QN2
    v5JlrrqIudo11QN2
    ACqEUSIT6OjtWrjH

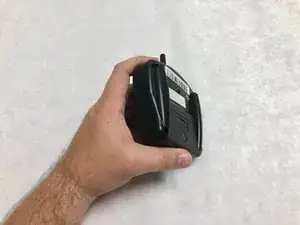

    • Turn the remote controller over to the back.

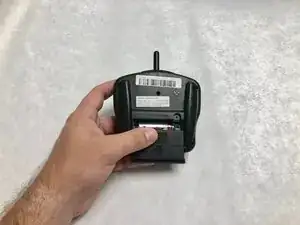

  2. NkdMWjauxjcorgac
    • Slide the battery cover off in the direction of the arrow on the cover.

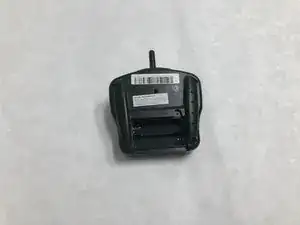

  3. 1I6wwhBM5NpSmqmP
    1I6wwhBM5NpSmqmP
    scxBZxBYM52AsnKq
    • Remove the batteries (2 AA).

  4. cRKlZTJOgf3sPM2R
    • Using a Phillips #1 screwdriver, remove the four screws located in the four corners of the back of the remote controller.

    • Screw length is 6 mm.

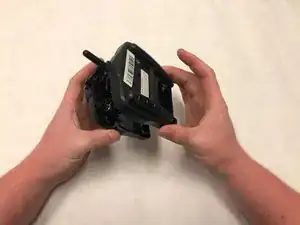

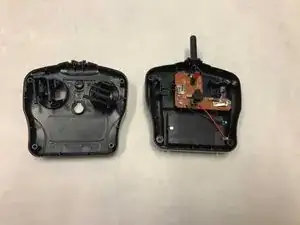

  5. tWs3iOwqEmhlRohX
    tWs3iOwqEmhlRohX
    PUAlsGwD3ib2E3d2
    • Separate the two halves of the remote controller.

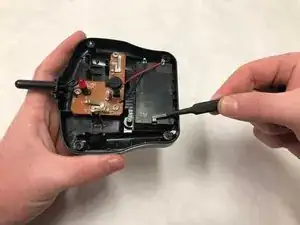

  6. AEPY1BSsYSOaN5AG
    AEPY1BSsYSOaN5AG
    lpCldG4OUcZigkgP
    • Lift the metal tab until it is straight and can move through the slot in the battery compartment.

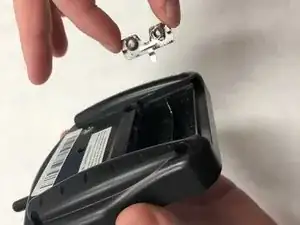

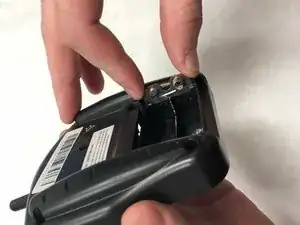

  7. PPuOif3vA1W2SJAs
    PPuOif3vA1W2SJAs
    X4aJCOYdZxIYw1YX
    • Flip the remote controller to the external side and slide the metal connections in the battery compartment straight up.

    • Slide the new connections straight down into the slot in the battery compartment, flip to the internal side, and bend the metal tab until it's parallel with the battery compartment.

Abschluss

To reassemble your device, follow these instructions in reverse order.
