MiTM Air Compressors AM1HE0205HD 2014 Power Cord Assembly Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 0
MiTM Air Compressors AM1HE0205HD 2014 Power Cord Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 30 Minuten

Einleitung

Prereq-only guide to remove the power cord on a MiTM Air Compressor AM1HE0205HD 2014.

  1. pZUNiUJVaw3FUiqm
    pZUNiUJVaw3FUiqm
    vYZiIpIEvmPdRJcX

    • Before you begin, ensure the device is powered down and cool to the touch.

    • Ensure the compressor is unplugged.

    • Flip the pressure switch lever up to the off position.

  2. UDQbXmVLjSt6MniU
    UDQbXmVLjSt6MniU
    sr3YEtFhYRn2IjO4

    • Pull the ring on the safety release valve away from the compressor tank to drain the air from the compressor.

    • Ensure all air is drained from the tank before beginning repairs.

  3. XqhsIT2x2ssBoywZ

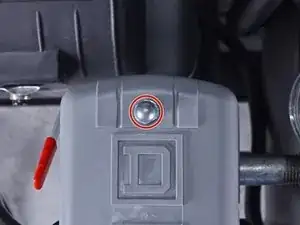

    • Use a 5/16 inch socket to unscrew the bolt securing the pressure switch cover.

    • This is a captive bolt and will stay attached to the cover after you unscrew it.

  4. CIV4IBMbsMn1et6c
    CIV4IBMbsMn1et6c
    IXZuxEVivuZPpG5o

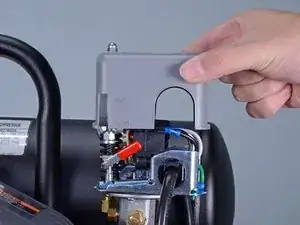

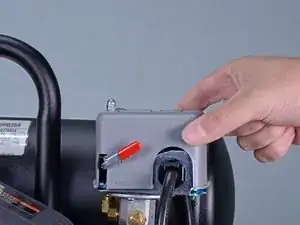

    • Remove the pressure switch cover.

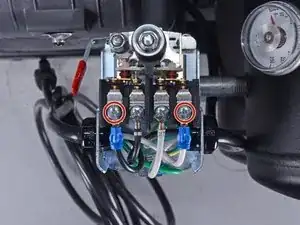

  5. pJ6BNLhX3JWlAd1m
    pJ6BNLhX3JWlAd1m
    l3rOgkWIXmu5hDS5

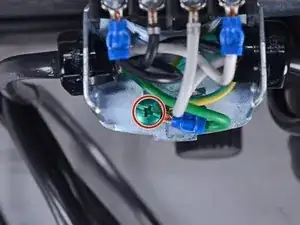

    • Use a Phillips driver to loosen the three screws securing the power cord wires.

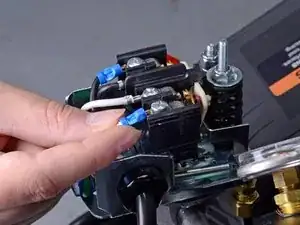

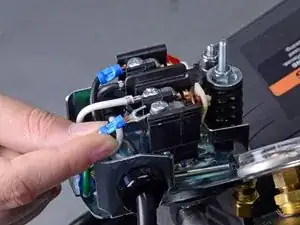

  6. SaWJZe4pyv31WHqv
    SaWJZe4pyv31WHqv
    Dvew2YHCEJLIVPZr

    • Slide the white power wire's spade terminal connector straight out from under its screw.

  7. DaOJwPZGyPfRAGj5
    DaOJwPZGyPfRAGj5
    kEqhvKGaOJgFFfQE

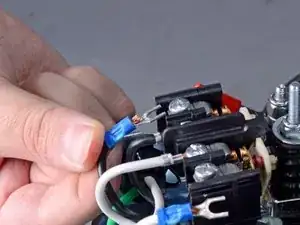

    • Slide the black power wire's spade terminal connector straight out from under its screw.

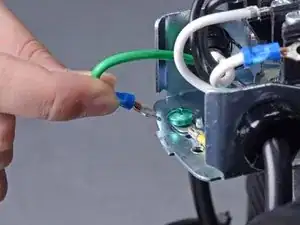

    • Slide the green ground wire's spade terminal connector straight out from under its screw.

  8. bNQYiaGIyEp1PBAl
    bNQYiaGIyEp1PBAl
    ZgZFHDOfgSEQ4sEf
    E3Rp5LYMPEprQnRE

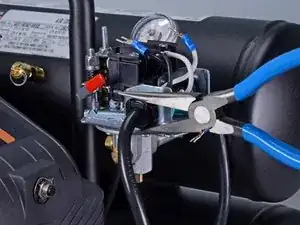

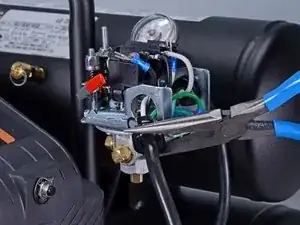

    • Use a pair of needle-nose pliers to squeeze the locking tab on the power cord bushing inwards, toward the cord.

    • While squeezing the locking tab, slide the bushing out of its hole in the pressure switch.

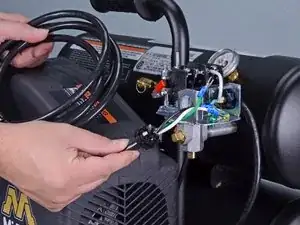

  9. DlmvFkZZLcVZlTFC

    • Remove the power cord.

Abschluss

To reassemble your device, follow these instructions in reverse order.
