MiTM Air Compressors AM1HE0205HD 2014 Pump Gaskets Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 0
MiTM Air Compressors AM1HE0205HD 2014 Pump Gaskets Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to remove or replace the pump gaskets in a MiTM Air Compressor AM1HE0205HD 2014.

  1. pZUNiUJVaw3FUiqm
    pZUNiUJVaw3FUiqm
    vYZiIpIEvmPdRJcX

    • Before you begin, ensure the device is powered down and cool to the touch.

    • Ensure the compressor is unplugged.

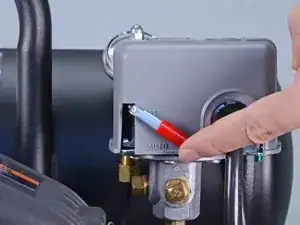

    • Flip the pressure switch lever up to the off position.

  2. UDQbXmVLjSt6MniU
    UDQbXmVLjSt6MniU
    sr3YEtFhYRn2IjO4

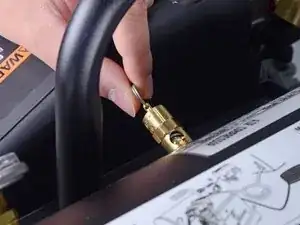

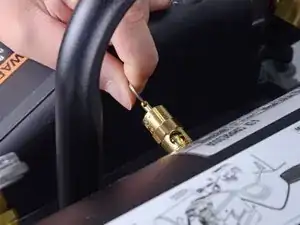

    • Pull the ring on the safety release valve away from the compressor tank to drain the air from the compressor.

    • Ensure all air is drained from the tank before beginning repairs.

  3. YBF6ASZ1fKPlTFcb

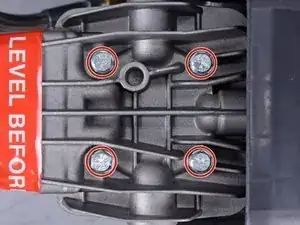

    • Use a 10 mm socket to remove the four bolts securing the pump head.

    • These bolts have washers, take care not to lose them.

  4. wOWrZb2LDkYjYZDX
    wOWrZb2LDkYjYZDX
    5x2vy1WDBmkVnUWF

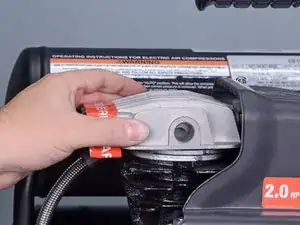

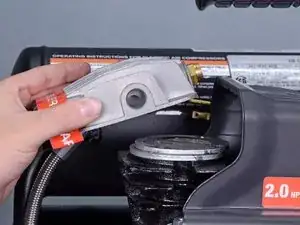

    • Lift the pump head off of the cylinder and gently set it aside.

    • Take care to avoid stressing the hoses connected to the pump head.

    • For the rest of this guide, note the order and orientation of everything you remove for correct reassembly.

  5. wUG321edkBvWCyra
    wUG321edkBvWCyra
    v3aTvRaxwoCBXJHc

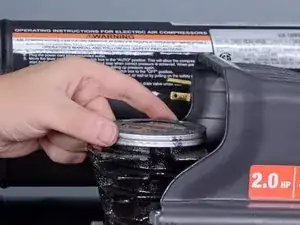

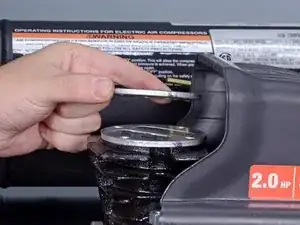

    • Remove the upper valve plate.

    • Take care not to lose the small rectangular valves sitting on the plates.

  6. sxmDgZxNYfENIwm5
    sxmDgZxNYfENIwm5
    bj1H5cslF4YWuyjW

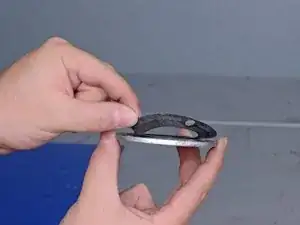

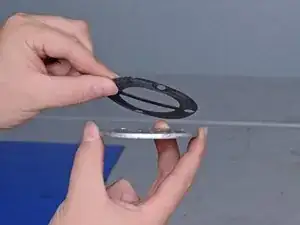

    • Peel the pump head gasket off of the upper valve plate.

    • The pump head gasket may have stuck to the bottom of the pump head. If this is the case, remove it from the pump head.

  7. 2GGeBTKncERusLP3
    2GGeBTKncERusLP3
    rhFJID2sMXZZTRQM

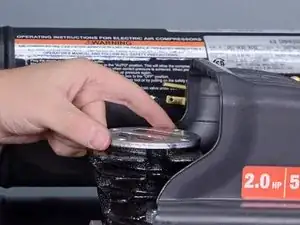

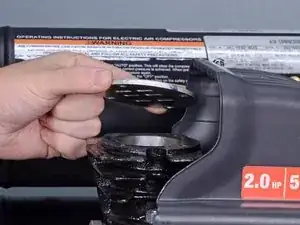

    • Remove the lower valve plate.

  8. Y5X2VYgHoB2FECUn

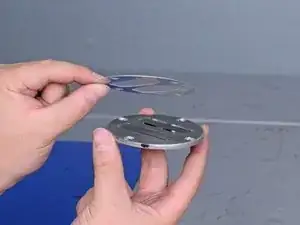

    • Remove the valve plate gasket from the lower valve plate.

    • The valve plate gasket may have stuck to the bottom of the upper valve plate. If this is the case, remove it from the upper valve plate.

  9. FCgqDbrf1oUDdxJi
    FCgqDbrf1oUDdxJi
    n5kDTVlCKYp4ZM2S
    jO1tKhPJwcCGMO4X

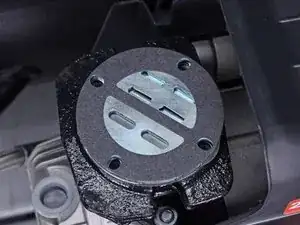

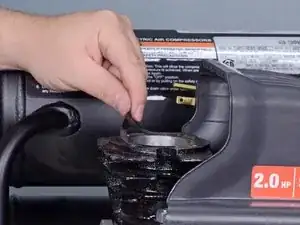

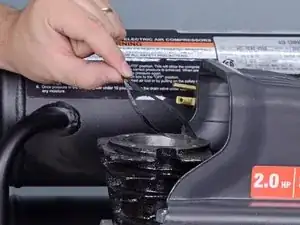

    • Peel the cylinder gasket off of the cylinder.

    • The cylinder gasket may have stuck to the bottom of the lower valve plate. If this is the case, remove it from the lower valve plate."

    • During reassembly, make sure to install everything in the correct order and orientation. Use the last image in this step or the device diagram for reference.

Abschluss

To reassemble your device, follow these instructions in reverse order.
