Use this guide to replace the piston rings on a Mi-T-M Air Compressor AM1-PH65-08HD 2012.

  1. 1BMEmi1dCWvFxJXk
    1BMEmi1dCWvFxJXk
    rsdlmQMNjrrrfgJx
    • Before you begin, make sure the device is powered down and cool to the touch.

    • Flip the engine switch into the OFF position.

  2. 6QFrwaUyZaV352YF
    6QFrwaUyZaV352YF
    UBFBdZ5EDZqEIq3V
    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  3. JNRgETcPYiaDvIVA
    JNRgETcPYiaDvIVA
    q21e555dEIBpb5jn
    • Pull the ring on the safety relief valve away from the compressor tank to drain the air from the compressor.

    • Ensure the tank is completely depressurized before starting repairs.

  4. jsPCObgljPZWTSRs
    • Use a 7/8 inch wrench to loosen the nut securing the pump discharge line to the elbow on the cylinder head.

  5. qYHrw2nbLvEocU5J
    qYHrw2nbLvEocU5J
    hQECkoModb1YeBQp
    • Remove the pump discharge line from the elbow.

  6. IMxABAJAiTd1hZwA
    • Use a 10 mm socket to remove the bolt securing the belt guard.

  7. WkGnAZVU3lsJZoWF
    WkGnAZVU3lsJZoWF
    SYfholHSZgMqjACQ
    qQHgxGrA1cFT2GaM
    • Tilt the belt guard away from the device and lift it out to remove it.

  8. wDbJ1mNLYXPZgIrB
    • Use a 7/16 inch socket to remove the nuts and accompanying bolts securing the belt guard bracket to the rear belt guard.

    • You may need to hold the bolts in place with a 7/16 inch wrench during removal.

    • Don't misplace the washers that are removed during this step.

    • During reassembly, you may need to slightly loosen the two head bolts securing the belt guard bracket in order to properly align the bracket with the mounting holes in the rear belt guard.

  9. ZUacjCT6V4CmkuZR
    • Use a 1/2 inch socket to remove the two bolts securing the belt guard bracket to the cylinder head.

    • Don't lose the loosened spacers underneath the belt guard bracket.

    • Don't misplace the washers that are removed during this step.

  10. BSXxPpWfoCAJHEvP
    BSXxPpWfoCAJHEvP
    BW13kAOoay3Kg1Fw
    • Lift the belt guard bracket straight up to remove it.

  11. vgogGC1FWApgNk41
    vgogGC1FWApgNk41
    veIPOyeVvqtIw2DD
    • Remove the four spacers from the top of the cylinder head.

  12. iTnSwykofJhrNnrJ
    iTnSwykofJhrNnrJ
    OjXHxalVsDFF3XZ3

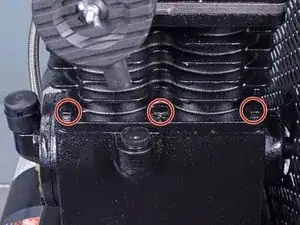

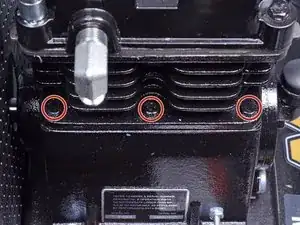

    • Use a 1/2 inch socket to remove the six bolts and washers securing the cylinder to the crankcase.

    • You may need to use a larger size socket if the coating on the bolts prevents the 1/2 inch socket from fitting.

    • You may need to use a 1/2 inch wrench if a socket is obstructed by the fin stacks on the cylinder.

  13. SZlfZCbKqVDMBSRu
    SZlfZCbKqVDMBSRu
    L4iZMF24cRdDiZBY
    4WOJnCnPlKHFOwd1

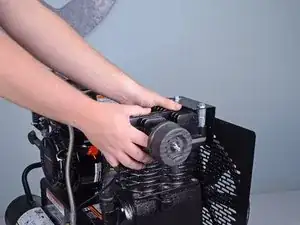

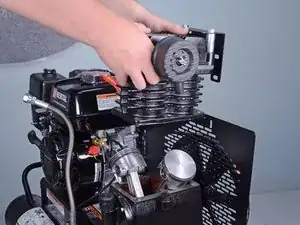

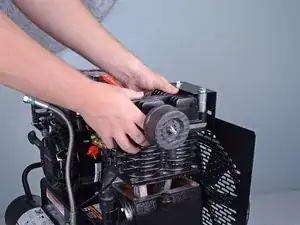

    • Lift the cylinder from the air compressor and set it aside.

    • You may need to loosen the gasket between the cylinder and the air compressor.

    • The two pistons will fall to the sides when you lift off the cylinder.

  14. u1Rb5IJUrGH1Scjy
    u1Rb5IJUrGH1Scjy
    DAwokhRHJ15oTwPF

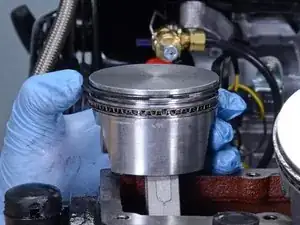

    • The piston rings are oily, so wear gloves to keep the piston as clean as possible and to avoid having the rings slip while you work.

    • Rotate the top compression ring until its gap is facing you.

    • Push the left side of the compression ring completely into the compression ring groove.

  15. 3bpJ5NBBFRWZhoWg
    3bpJ5NBBFRWZhoWg
    DOQGW5nAUQJHRPDs
    KHXPBQUAbeEUT5oY

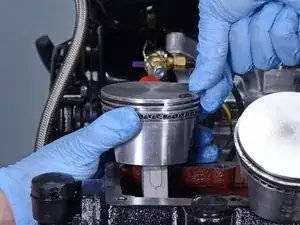

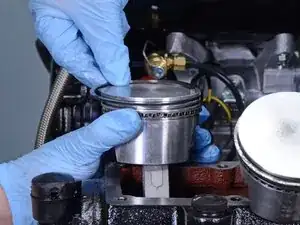

    • Bending the compression ring in the horizontal direction may cause it to break.

    • Avoid scratching the top surface of the piston.

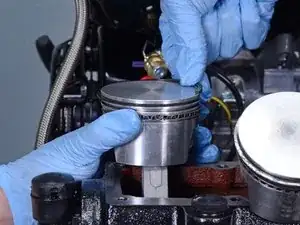

    • Grasp the right edge of the top compression ring and lift the end up and over the top edge of the piston.

    • Lift the piston ring as you rotate the entire ring counterclockwise (looking at the piston from above) to guide the ring out of its groove.

  16. dGqffBplKIgYAZfg
    dGqffBplKIgYAZfg
    gKoAHoWI1WQwNEnQ
    nrsMWTZ2ngb6AX3I

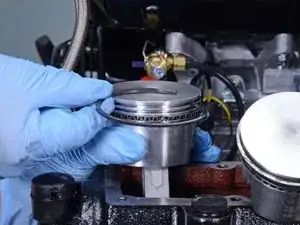

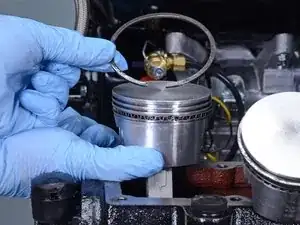

    • With the top compression ring out of its groove, swing it out and off of the piston.

    • Remove the compression ring and set it aside.

    • Repeat the last three steps to remove the wiper ring (the second ring from the top).

  17. T3JPNHJOxPFYJLqb
    T3JPNHJOxPFYJLqb
    NEIndFNBS36iUIEM

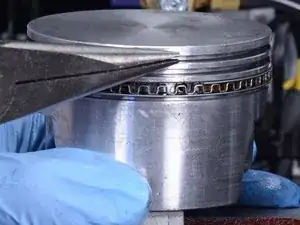

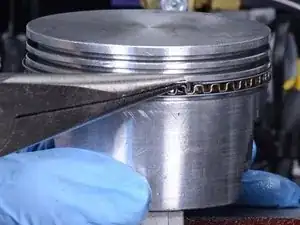

    • Rotate the top oil ring rail so that its gap is facing you.

    • Use a pair of needle nose pliers to lift up the left end of the top oil ring rail enough to grip it with your fingers.

    • Avoid scratching the top surface of the piston.

  18. MNNVIlXIoml4B4JC
    MNNVIlXIoml4B4JC
    Pq46GSTCchsY5ARD

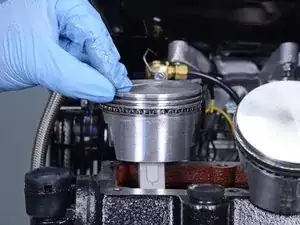

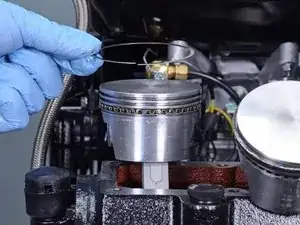

    • Use your fingers to lift the top oil ring rail clockwise around the piston.

    • Remove the top oil ring rail and set it aside.

  19. Hi32YQimySh1VIhR
    Hi32YQimySh1VIhR
    u3dJNufYawTDSEGm
    Apixh4QjpfqUJBFw

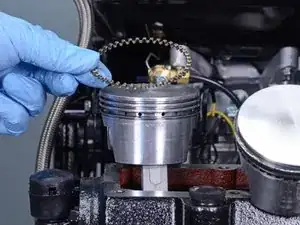

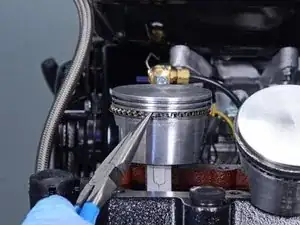

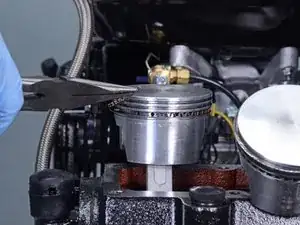

    • Rotate the oil ring expander so that its gap is facing you.

    • Use a pair of needle nose pliers to lift up the left end of the top oil ring expander enough to grip it with your fingers.

    • Avoid scratching the top surface of the piston.

    • Use your fingers to lift the oil ring expander out of its groove, working your way clockwise around the piston.

    • Remove the oil ring expander and set it aside.

  20. ucEkh2cuBWMxsXrs
    ucEkh2cuBWMxsXrs
    MuWEVYJwEcbOInyC
    tyJKEkjqH2ThAPky

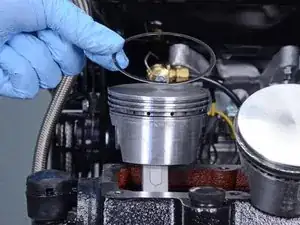

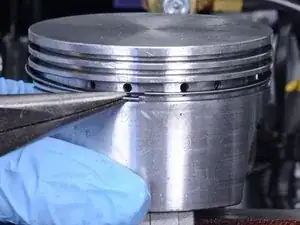

    • Rotate the bottom oil ring rail so that its gap is facing you.

    • Use a pair of needle nose pliers to lift up the left end of the bottom oil ring rail enough to grip it with your fingers.

    • Avoid scratching the top surface of the piston.

    • Use your fingers to lift up the bottom oil ring rail, working your way clockwise around the piston.

    • Remove the bottom oil ring rail and set it aside.

    • Repeat the last seven steps to remove the piston rings from the second piston.

  21. WZSvYAGnTaiNNsDL
    WZSvYAGnTaiNNsDL
    G4eyNoIvC136iJhM
    CVQcdxKJYlV1XoQv

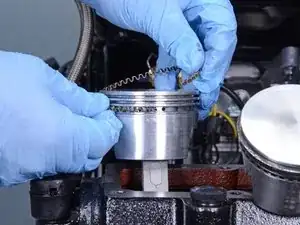

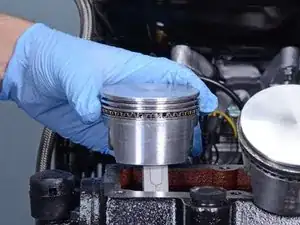

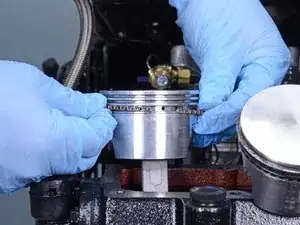

    • Insert the left end of the replacement oil ring expander into the oil ring groove.

    • Continue inserting the oil ring expander into the groove by working your way around the piston clockwise.

    • Make sure the oil ring expander is completely inserted into the oil ring groove.

  22. QPOZlGW4OPJDNx6K
    QPOZlGW4OPJDNx6K
    rr1VMQB2dOPZpHjH
    gyUJTXVOdsp2Y2fs

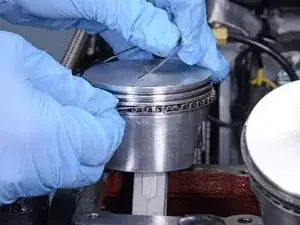

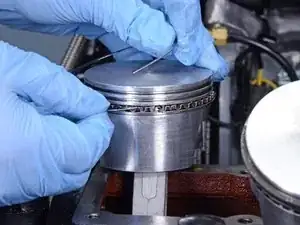

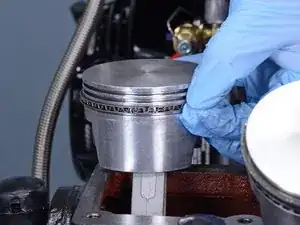

    • Insert the left end of the replacement top oil ring rail into the oil ring groove directly above the oil ring expander.

    • The top oil ring rail, bottom oil ring rail, and oil ring expander all share the same oil ring groove. The top oil ring rail will be sitting directly on top of the oil ring expander.

    • Continue inserting the top oil ring rail into the groove by working your way around the piston clockwise.

    • Make sure the top oil ring rail is completely inserted into the groove.

    • Repeat this step for the bottom oil ring rail.

  23. ava1lW1s2aHHALm3
    ava1lW1s2aHHALm3
    trJUPsgIV6TTYEWk

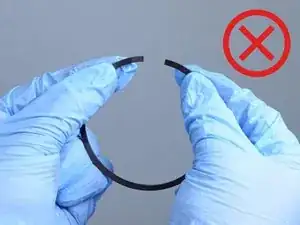

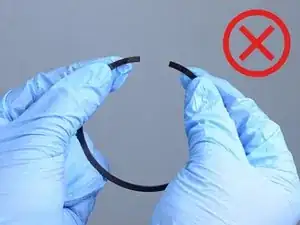

    • The composite compression and wiper rings are not designed to be bent in a way that moves their ends horizontally away from one another. Doing so excessively may cause the rings to break.

  24. pWwPtXoNtDSN1iHe
    pWwPtXoNtDSN1iHe
    bbgKvVGUWmlyKIfE

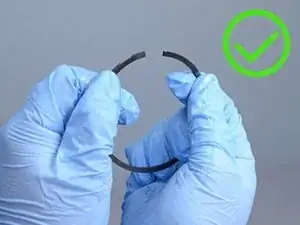

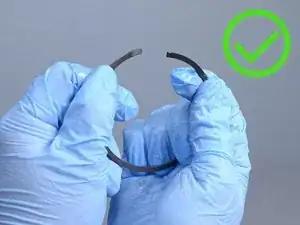

    • The compression and wiper rings are designed to be bent mainly in the vertical direction, and they're stronger and more flexible in this direction only, so keep this in mind during the procedure.

  25. Xx6TSinynyKRM3iR

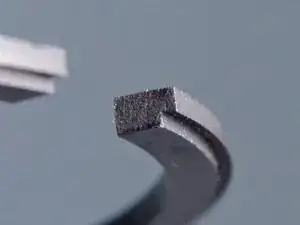

    • The wiper ring has a small shelf.

    • Position the smaller diameter of the wiper ring on the bottom of the wiper ring groove, so that the smaller diameter is closer to the oil ring, and the larger diameter closer to the top surface of the piston.

    • This shelf functions to pull oil off of the cylinder wall during the downward strokes of the piston.

  26. J1RfC6VSMjmqDR6e
    J1RfC6VSMjmqDR6e
    CCn6jJaTvSHPTaD6

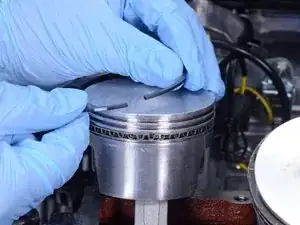

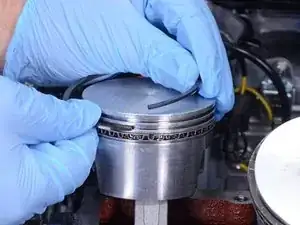

    • Insert the left end of the wiper ring into the wiper ring groove.

  27. PQtYADQPcK3IWMkT
    PQtYADQPcK3IWMkT
    MRewSTZeJYmdNPiU
    s14SFwuZNGybV44E

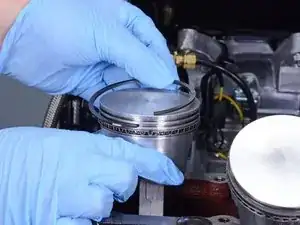

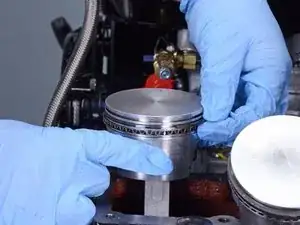

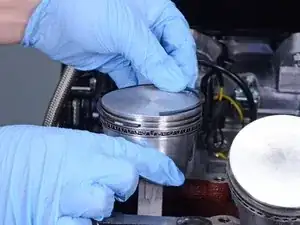

    • Continue pushing the wiper ring into the groove by working your way around the piston clockwise (when viewed from above).

    • Fully insert the wiper ring into its groove.

  28. fHCYjArDIUfwrPfy
    • Repeat the last two steps for the compression ring.

  29. XwWy6dQlFuSBI4NN
    XwWy6dQlFuSBI4NN
    BkwM3g2wOsl1BwmC
    qJKlnHeXyCQVLGPR
    • Replace the gasket between the cylinder and air compressor if it isn’t intact.

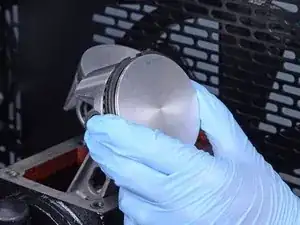

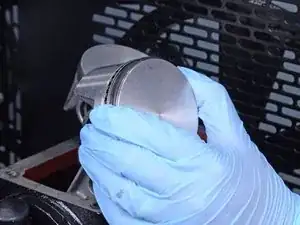

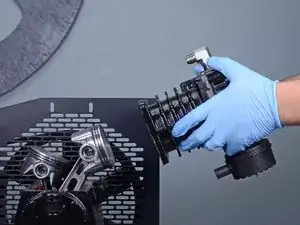

    • Rotate one piston to top dead center.

    • Align the upper piston with its corresponding cylinder.

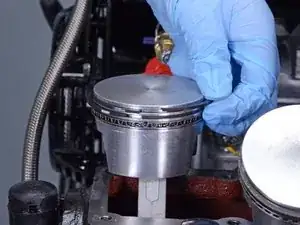

    • While holding the cylinder closely aligned with the piston, use one hand to compress the piston rings.

    • With the piston rings compressed, begin to lower the cylinder onto the upper piston.

    • If you have access to a ring compressor, it can be used, but is not necessary.

  30. EmTqHjGK35CGLlck
    EmTqHjGK35CGLlck
    wvYUFbVVkVkb6Vwi

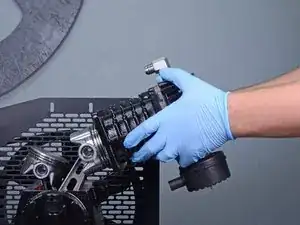

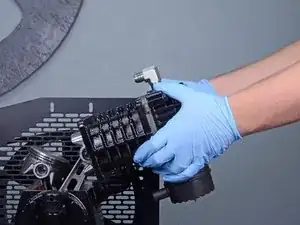

    • Push the cylinder onto the upper piston until all piston rings are compressed by the cylinder wall.

    • Make sure to keep the cylinder supported so the piston is not supporting the entire weight of the block.

  31. AcfN2IHDIJPQEk6E
    AcfN2IHDIJPQEk6E
    AcCAQQ2D2lEHOGKX
    Q3rtg6Pj6DTJ3LDI

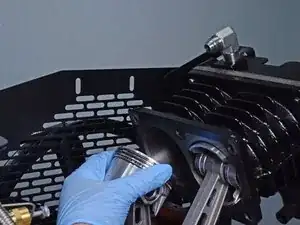

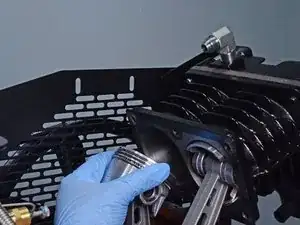

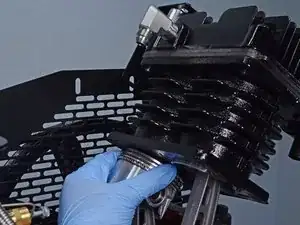

    • While continuing to support the cylinder, compress the lower piston's rings.

    • Align the lower piston with the empty cylinder.

    • With the piston rings compressed, begin to lower the cylinder onto the upper piston.

  32. DqABlbGLNxjYaOh2
    DqABlbGLNxjYaOh2
    fCdqMaKZoAx5c2EW

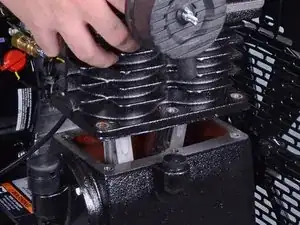

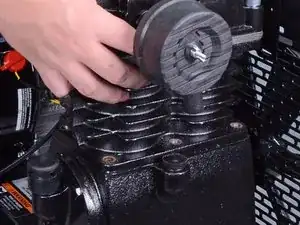

    • Push the cylinder onto the lower piston until all piston rings are compressed by the cylinder wall.

    • Once both pistons are seated smoothly in the block, lower the cylinder down and push to seat against the gasket.

Abschluss

To reassemble your device, follow these instructions in reverse order starting at step 12.
